Braided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake Hose
Braided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake Hose
Braided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake Hose
Braided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake Hose
Specifications
Brand Name :
HSBRK
Model Number :
1/8"
Certification :
DOT,COQ
Place of Origin :
HENGSHUI,CHINA
MOQ :
1000 Meters
Price :
US$0.65-0.85/Meter
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
6000Meters/Day
Delivery Time :
5-8 work days
Packaging Details :
200Meters/Roll
Standard :
SAE J1401,GB16897
Size :
3.2*10.5mm
Product :
Rubber EPDM Brake Hose
Construction :
5 Lays
Working Temperature :
-40℃~+120℃
OEM :
Avaiable
Description

3.2*10.5mm Rubber EPDM Brake Hose SAE J1401 1/8" Auto Hydraulic Brake Hose and Assembly

Introduce:

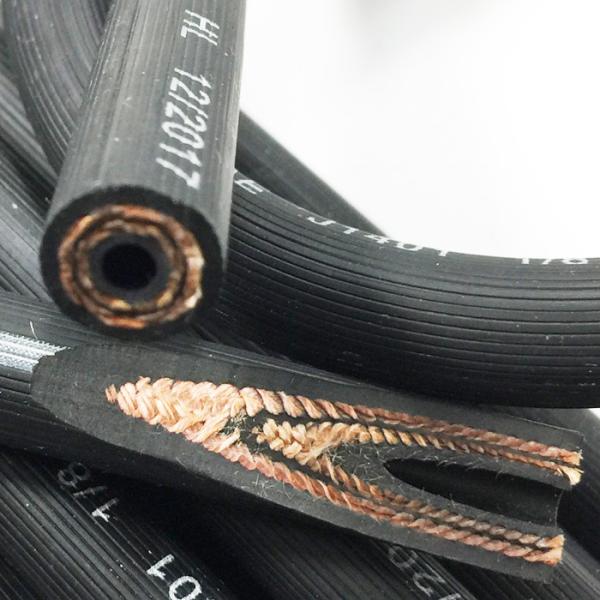

3.2*10.5mm Rubber EPDM Brake Hose consist of five layers :

  1. EPDM rubber inner hose
  2. Braided dipped Polyester Yarn
  3. EPDM rubber sheet
  4. Braided dipped Polyester Yarn
  5. Protective cover of EPDM rubber

​Our rubber EPDM brake hose conform to SAE J1401 and DOT standard FMVSS106.And each rubber EPDM brake hose have a water pressure test under 27Mpa 180 seconds which can gurantee our rubber EPDM brake hose is perfect quality before packing and shipping.

Specification:

NO. Inner diameter Outer diameter Burst Pressure(Mpa) Expansion Amount (ml/m) Flexural fatigue test Low temperature ℃ Pulse Resistance 0-22Mpa Ozone resistant 50±5pphm.40℃
6.9Mpa 10.3Mpa
RBRH-A 3.2±0.1mm 10.5±0.2mm ≥55 ≤1.15 ≥35h -55 150times 70±2h
RBRH-B 3.2±0.2mm 10.5±0.2mm ≥49 ≤0.54 ≤0.69 ≥35h -40 150times 70±2h
RBRH-C 3.2±0.2mm 10.5±0.2mm ≥49 ≤1.08 ≤1.38 ≥35h -40 150times 70±2h

Braided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake Hose

Main application: Used in the brake and clutch pipeline system of various passenger vehicles such as cars, commercial vehicles, SUVs and mini cars

Technical Features: high temperature and pulse resistance, excellent flexing performance, stable and suitable expansion
Executive standard: GB16897-2010 SAE J1401 DOT

Braided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake HoseBraided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake Hose

Braided Rubber EPDM Brake Hose 3.2*10.5mm Auto Brake Hose

Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
