Hermetically Sealed Load Cell 2 Ton 3 Ton 4 Ton Bending Beam Load Cell
Hermetically Sealed Load Cell 2 Ton 3 Ton 4 Ton Bending Beam Load Cell
Hermetically Sealed Load Cell 2 Ton 3 Ton 4 Ton Bending Beam Load Cell
Hermetically Sealed Load Cell 2 Ton 3 Ton 4 Ton Bending Beam Load Cell
Specifications
Brand Name :
BRANS
Model Number :
WL-127
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
5-7 work days
Packaging Details :
Standard exporter carton packing including of instructions. Water Proof & Shock Resistance
Measurement Range :
0.11t-4.4t
Structure :
Shear Beam
Theory :
Strain gauge
Rated output :
1.94±0.1%mV/V
Recommendated excitation :
10-15VDC
Packing :
Carton
Customized :
Acceptable
HS Code :
9031809090
Material :
Stainless Steel
Non-Linearity :
±0.017%F.S.
Usage :
Industrial weighing system
Description

Product Description:

Hermetically Encapsulated Shear Beam Load Cell Made Of Stainless Steel With Load Capacity of 0.11t-4.4t (WL-127)

The shear beam load cell WL-127 works with the stain gauge technology, available in the weight measuring capacity of 0.11t-4.4t. Made of stainless steel, the weight sensor WL-127 is hermetically encapsulated with IP 68 and optimized for use in parallel connection. The compact structure and good long-term stability makes the weight tramsducer WL-127 ideal for various industrial weighting applications, for example, tank scales,batching scales and hopper scales with mounting pits. Other than that, our Brans load sensor WL-127 boasts a high accuracy and good endurability.

In order to satisfy client needs, the stainless steel shear beam load cells can also be altered or customized. At BRANS, we recognize that every application is different and needs a customized response. We can adjust our product to meet your unique needs thanks to our bespoke service, which guarantees the highest level of accuracy and dependability. We are devoted to giving you the finest possible solution for your particular application through our tailored service.

Features:

  • ​Shear Beam Load Cells
  • Made of Stainless steel
  • Load capacity range:0.11t-4.4t
  • Optimized for parallel connection
  • Easy to install; with compact design
  • Good stability and endurability
  • Mainly used for various ultrathin electronic truck scale, one-track crane scale, hopper scale, etc
  • Different cable lengths and other options deliverable

Technical Parameters:

Capacity 0.11t-4.4t
Rated output

1.94±0.1mV/V
Accuracy class C3
Combined error ±0.017%F.S.
Zero balance ±1.00%F.S.
Non-linearity ±0.017%F.S.
Hysteresis ±0.017%F.S.
Repeatability ±0.017%F.S.
Creep (30min) ±0.0166%F.S.
Temperature effect on sensitivity ±0.014%F.S./10℃
Temperature effect on zero ±0.0125%F.S./10℃
Input resistance 390±3Ω
Output resistance 350±5Ω
Insulation resistance ≥5000MΩ/100VDC
Recommended excitation 5~15VDC
Maximum excitation 20V
Compensated temp. range -10~40℃
Operation temp. range -30~70℃
Safe overload 150%F.S.
Ultimate overload 300%F.S.
IP class IP68 (Customizable)
Cable size Φ5.4×1500mm (Customizable)
Material Stainless Steel
Weight approx.

0.9kg(0.55~1.76t)

1.6kg(2.2t)

2.2kg(4.4t)

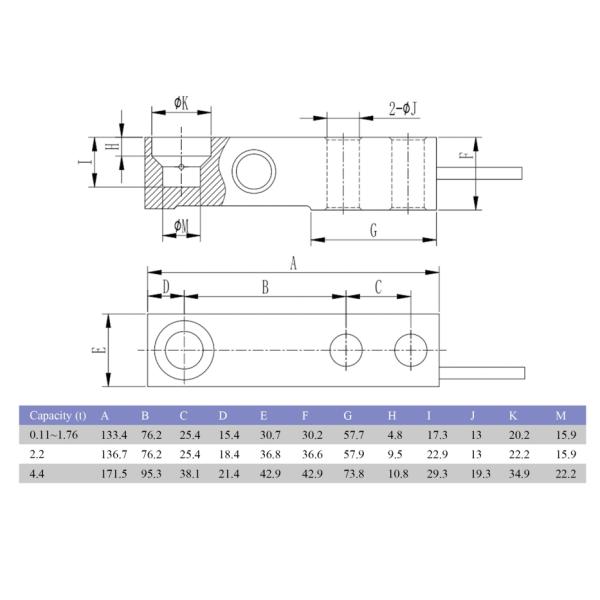

Dimensions (Unit:mm):

Hermetically Sealed Load Cell 2 Ton 3 Ton 4 Ton Bending Beam Load Cell

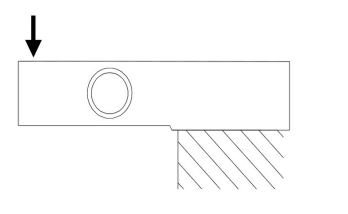

Load direction:

Hermetically Sealed Load Cell 2 Ton 3 Ton 4 Ton Bending Beam Load Cell

Wiring code:

Hermetically Sealed Load Cell 2 Ton 3 Ton 4 Ton Bending Beam Load Cell

Packing and Shipping:

Packaging and Shipping for Load Cell

The Load Cell will be carefully packaged and shipped to ensure its safe arrival to your location. The packaging process is as follows:

  • The load cell will be placed in a sturdy cardboard box to protect it from any external damage during shipping.
  • The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving around during transport.
  • The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
  • Additional layers of bubble wrap may be added for extra protection.
  • The box will be securely sealed with tape to prevent any tampering.
  • A shipping label with your address and the product information will be affixed to the box.
  • The package will be shipped using a reliable and trusted courier service.

Once the package has been shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the shipping address to receive the package to avoid any delays or issues.
