1.Basic information

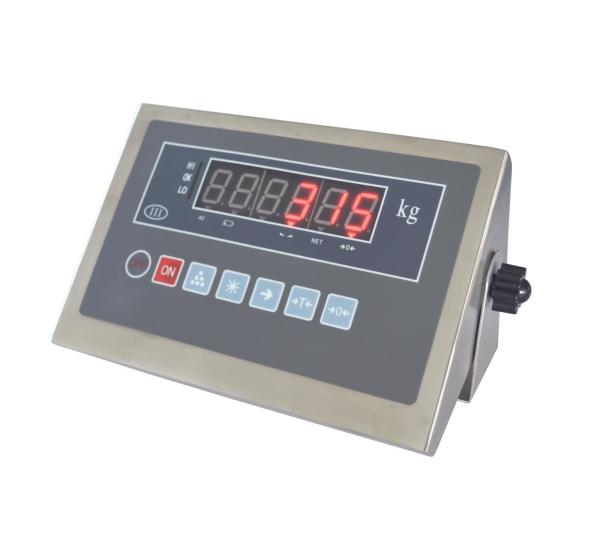

Model:XK315A1-21F
stainless steel housing
6-digit 20.2mm red LED
Dimensions:275 x 160 x 120 mm
Applications:electronic plaform scale and weighing scale,etc.

2. Functions and Features

1. 10 V/m immunity to radiated electromagnetic fields
2. 6-digit 20.2mm red LED
3. 20 hours full charge battery operation

12 hours full charge battery operation

4. Operating temperature:–10 °C to +40 °C

Storage temperature: –25 °C to +55 °C

Relative humidity : 10% to 85% non-condensing
5. 1,000,000 internal ADC counts
6. Manual and automatic weight accumulation
7. Automatic zero tracking
8.RS232 interface with continuous data output or command protocol Baud rate 1200, 2400, 4800, 9600
9. Optional RS485 interface
10. HI/OK/LO set point
11.Drive up to 4 x 350Ω or 8 x 700Ω load cell
12. Power: 6V 4A battery
