Specifications
Brand Name :
Brans
Model Number :
BXK315A6GBP
Certification :
OIML, CE
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union,Paypal
Delivery Time :
5-7 work days
Packaging Details :
Standard exporter carton packing including of instructions. Water Proof & Shock Resistance
Power :
6V 4ah Battery
Protection Class :
IP65 Waterproof
Storage temperature :
-25℃— +55℃
Display Digits :
6 digits
Customized :
Customized
Accuracy class :
0.0001g
Application :
Electronic Platform Scale and Weighing Scale
Description

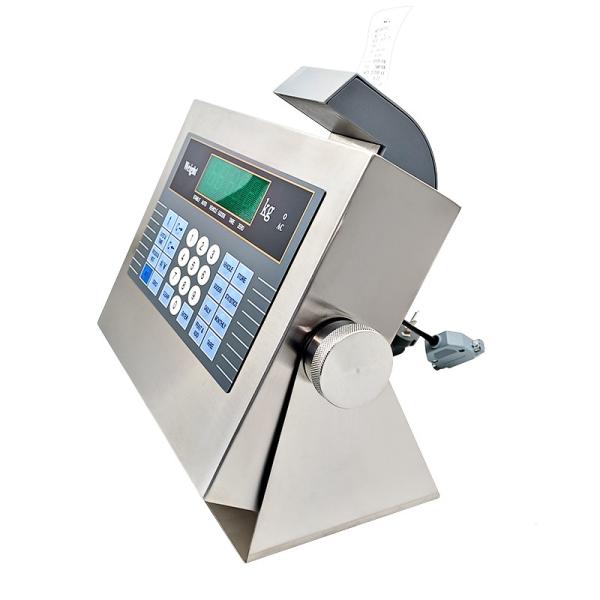

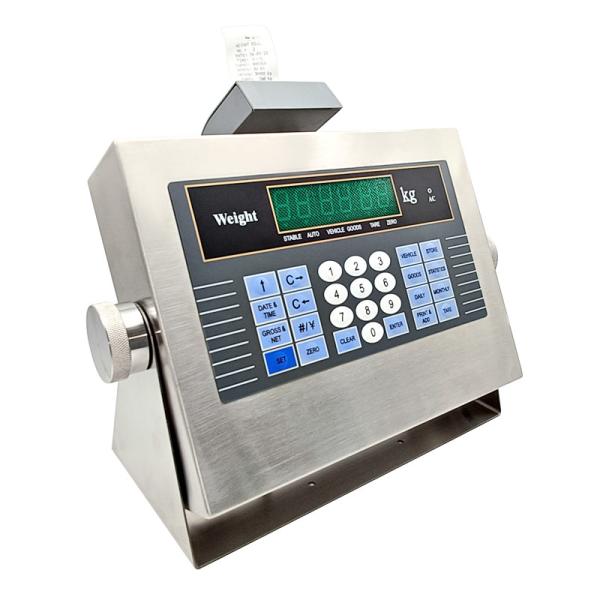

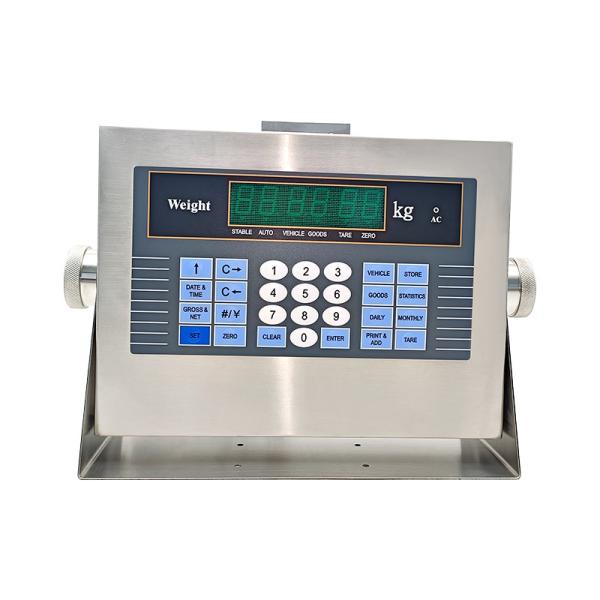

Stainless Steel Truck Scales Indicators with Built-in Micro Printer (BXK315A6GBP)


Features and Functions:

1 Operating temperature: 0ºC to 40ºC

2 Storage temperature: -25ºC to 55ºC

3 Relative humidity:≤ 85% non-condensing

4 Drive up 8X350Ω or 16X700Ω load cell

5 Indicator can be replaced without recalibration

6 Four-point calibration

7 Low battery indication and automatic power-off

8 Store and recall up to 10 unit prices

9 Lock display when overload is greater 130%FS

10 Accuracy can be increased ten times

11 Real-time chock with programmable date and lock to stop work

12 Store and recall up to 200 vehicle numbers and tares

13 Store and recall up to 1000 weighing records and statistical reports

14 Classify statistics by vehicle and goods number

15 Classify statistics by daily and monthly reports

16 Selectable printing of fill-in form

17 Parallel interface to external 24-pin dot matrix printer

18 RS232 serial interface

19 Optional RS485 serial interface

20 Selectable kg and t

21 Optional micro printer

22 Power: 6V 4AH battery


Specifications:

Display

6-digit 20.2mm Green LED
Accuracy class C3
Connected sensor sensitivity range 1~3 mV/V
A/D conversion resolution 1.5 million
AD conversion rate 60 times/second
Input Load

8 x 350 Ω load cells

16 x 700 Ω load cells
Serial interface

Two RS-232C serial output interfaces

Optional RS485 interface
Excitation voltage 5VDC
Relative humidity ≦85﹪non-condensing
Operation temp. range 0 °C to 40 °C
Storage temperature –25 °C to +55 °C
Dimension(L*W*H) 275 x 160 x 120 mm
Material Stainless steel
Dimensions 320 x 200 x 180 mm
Cable connection 6 wires
Weight 4kg
Buttons 28

Dimensions(mm)

Stainless Steel Truck Scale Indicator IP65 Weighing Indicator Waterproof Manual

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.


Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
