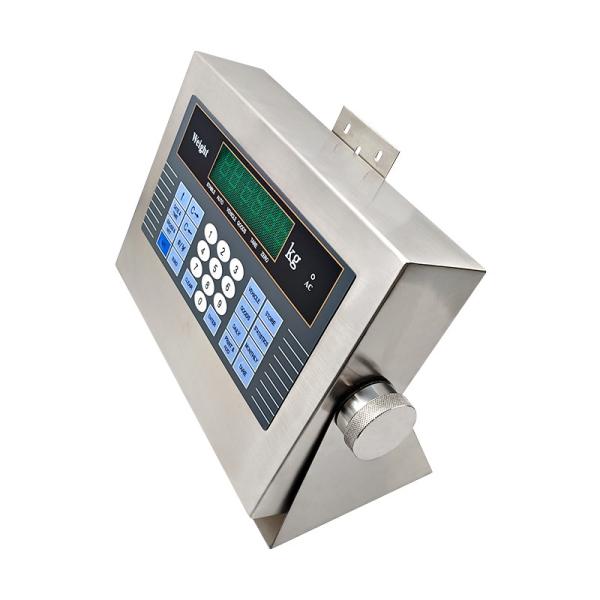

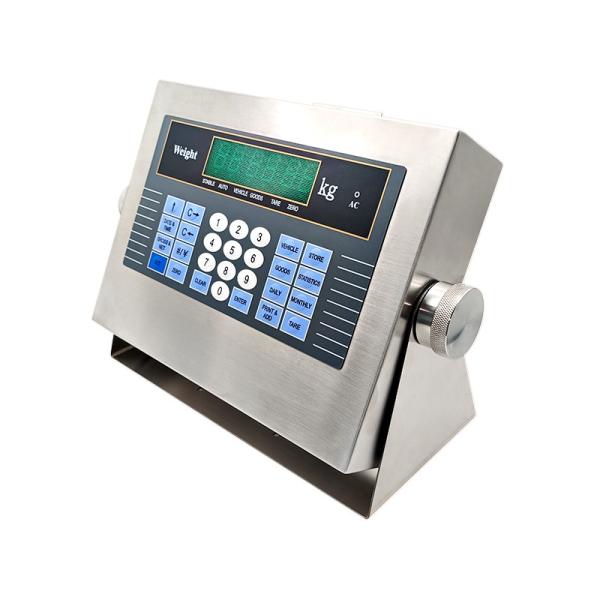

6 Digit 20.2mm Green Weighing Indicator LED Bench Scale Weight Indicator
6 Digit 20.2mm Green Weighing Indicator LED Bench Scale Weight Indicator
6 Digit 20.2mm Green Weighing Indicator LED Bench Scale Weight Indicator
6 Digit 20.2mm Green Weighing Indicator LED Bench Scale Weight Indicator
Specifications
Brand Name :
Brans
Model Number :
BXK315A6GBP
Certification :
OIML, CE
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union,Paypal
Delivery Time :
5-7 work days
Packaging Details :
Standard exporter carton packing including of instructions. Water Proof & Shock Resistance
Applied area :
Floor scale, fully electronic truck scale
Communication interface :
Two RS-232 serial output communication interfaces
Optional :
RS-485 long-distance communication interface
Storage temperature :
-25℃— +55℃
Feature :
1200, 2400, 4800, 9600
Weight :
4kg
Accuracy class :
C3
Description

6-digit 20.2mm Green LED Weighing Indicator For Floor Scale-BXK315A6GBP


Features and Functions:

  • Stainless steel housing and with built-in micro printer
  • 1-8 350Ω or 1-16 700Ω sensors can be connected
  • No need to recalibrate the instrument with weights when replacing it
  • Four-point linear correction
  • kg-t optional
  • Store and recall up to 200 vehicle numbers and tares
  • Classify statistics by daily and monthly reports
  • 10 unit price settings, storage and calls can be directly used for trade settlement
  • locked if the full range is overloaded by 30%
  • Uninterrupted real-time clock, real agreed date shutdown function



Specifications:

Display

6-digit 20.2mm Green LED
Accuracy class C3
Connected sensor sensitivity range 1~3 mV/V
A/D conversion resolution 1.5 million
AD conversion rate 60 times/second
Input Load

8 x 350 Ω load cells

16 x 700 Ω load cells
Serial interface

Two RS-232C serial output interfaces

Optional RS485 interface
Excitation voltage 5VDC
Relative humidity ≦85﹪RH
Operation temp. range 0 °C to 40 °C
Storage temperature –25 °C to +55 °C
Dimension(L*W*H) 275 x 160 x 120 mm
Material Stainless steel
Dimensions 320 x 200 x 180 mm
Cable connection 6 wires
Weight 4kg
Buttons 28

Dimensions(mm)

6 Digit 20.2mm Green Weighing Indicator LED Bench Scale Weight Indicator

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.


Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
