Wholesale High Performance General Type Coated End Mill HRC55 End Mills

HRC55

For Steel Carbon, Alloy Steel, Tools Steel, Cast Iron

Workpiece material

Steel

Cast Iron

Application Type

Finishing

Semi-Finishing

Medium

Roughing

Flute Type

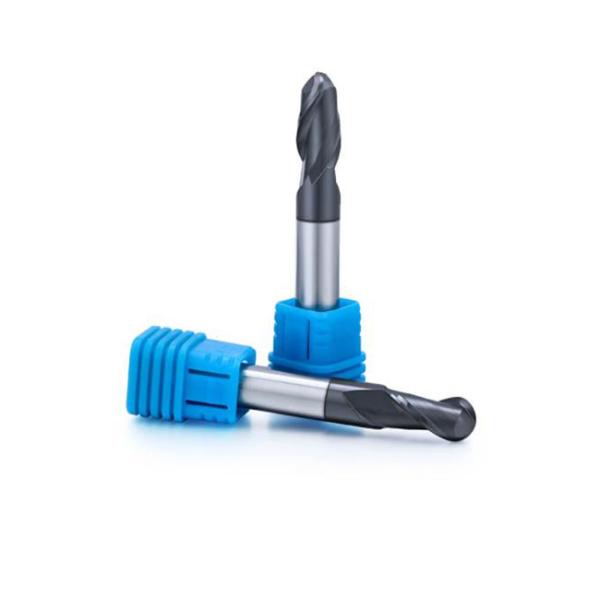

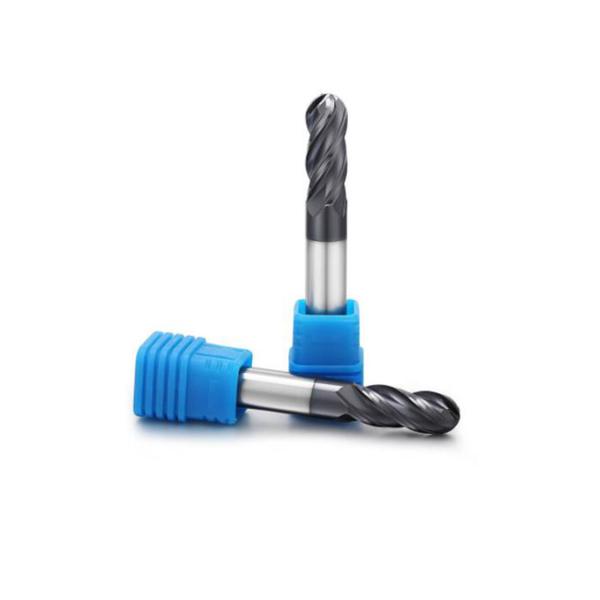

Ball

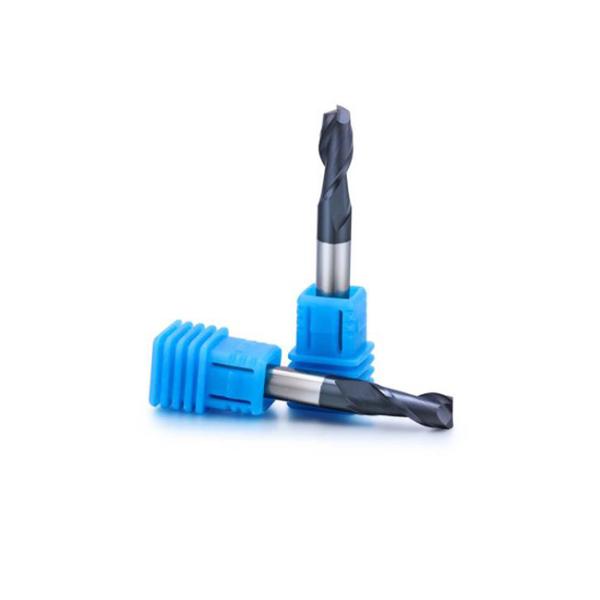

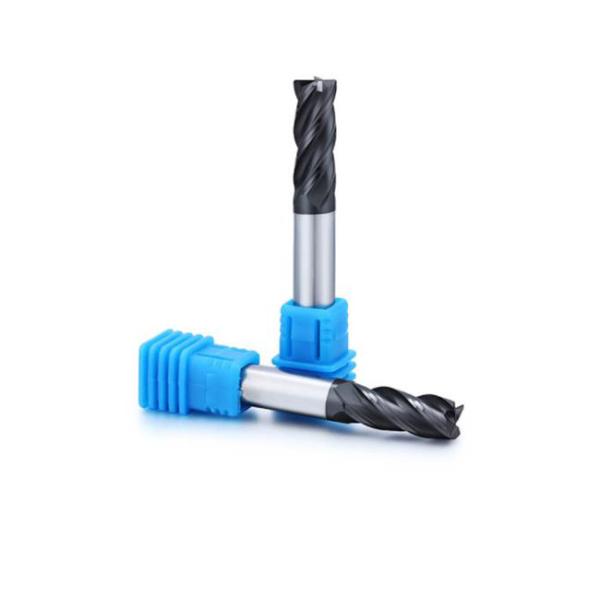

Square

Corner Radius

Coating

Aluminum Titanium Nitride Coating

High Silicon Mixed Nano Coating

Product Description

The tool is used for the processing of frames and shells such as computer hard disk ,mobile phones,and the processing of some non-ferrous material such as aluminum,magnesium,chin,silicon,etc. as well as the processing of some non-metallic materials ,such as fibermaterials ,insulating materials,plastics,composite materials,etc.

SPECIFICATION

Features:

1.Range of application: use for ordinary stainless steel, ordinary mould steel, Hardened common steel, cast iron, copper, alloy steel with high effective process. Suitable for processing material with hardness below HRC65.

2. Structure of cutting tools : The sharp cutting matched with the good hardness ,Arc relief angle makes tool better wear-resistance, flat relief angle makes tool sharper. Cutters with two kinds of relief angle, cutting process will be faster, and tools will be longer life. Cross-center of flute top make drilling and milling better.

3. Coating of cutting tools: AlTIN coating, adopted advanced technology and equipement of Japan, Not only has high temperature oxidation resistance (800 °C), but also can achieve best on the condition of dry machining or high speed cutting.

4.The advanced technology and equipment imported from Germany.

5.Toppest materials of around the world (TaeguTec, Kennametal, AF K34/K44).

6.Multi-series of product supported: Square end mill, Ball nose end mills, Corner radius cutting tools, Roughing end mill, Long neck short flute end mill,etc.

Technology:

1.Blade Point

Blade belt: double blade belt design is adopted to determine a more wear-resistant edge.It adopts a blade design suitable for high-speed cutting,with a 2-blade edge and excellent chip removal!

2.Mirror chip removal slot

High capacity chip removal with strong cutting,smooth cutting discharge,can achieve high effiency machining.

3.Chamfering

Perfect chamfering,easy and fast installation chuck,high gloss knife body import essential features.

1.Feature:

a.Suitable for non-ferrous metal materials,non-metal materials,and composite materials.

b.Can get a faster cut cutting speed and longer tool life, get high surface quality and accuracy.

2.Design:

a.Circumferential edge band and passivation, improve the tool life and stability of the cutting process.

b.PCD corner radius end mill cutter is a arc-shaped design, can efficiently process narrow areas or curved surfaces.

c.PCD ball nose end mill cutter is a reasonable new type of structural tool for machining complex curved surfaces on CNC machine tools. It's one of the important tools used in complex 3D surface finishing,it's for complest spatial surface.

	1.Double core diameter design ideal.:strong strength for plunge and pocket milling ideal using on stainless steel a.The small core diameter of the front end can ensure the chip removal smooth ,take away the heat of cutting production, and prevent the production of built-up edge. b.The big core diameter at the back end ehance the rigidity of cutting tools and improve the surface quality of products
	2.a≠b Unequal design:prevents vibration and reduces cutting force at slotting. This has led to the high speed and high feed machining
	3.Variable helix to prevent vibration Special variable pitch profile reduces cutting force and stress on machine spindle

Advantages

1.Ultrafine crystal grains, mirror processing effect, long service life.

2.Surface finish less than 0.4u, mirror effect and very shinning.

3.Wear-resistant and very long work life, much more than carbide materials.

4.Four times of cutting tool detection to ensure the quality

1) The first piece, the tail piece and the sampling inspection in the production process with Helicheck PlusWalter equipment to full inspection the Circumferential Rake, circumferential edge back Angle, end tooth front Angle, end tooth back Angle, R Angle value and profile, the profile of the forming knife

2) after production , full inspection by two dimensions measuring instrument or Microscopic,flute number,outer diameter,flute length ,core diameter,helical angle,width of relief angle,End Tooth Eccentricity and end tooth throught a center,Disc angle of end tooth,Outside run-out and Whether there are notches, jagged

3) before coating Spot check by two dimensions measuring instrument

4)After coating full inspection by two dimensions measuring instrument

FAQ

Q: Are you trading company or manufacturer?

Yes ,We are factory for more than 6+ years in CNC tools.

Q: How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to production schedule.

Q: Do you provide samples? is it free or extra?

No, we don't provide free samples, we we can offer you some discounts depends on your order quantity.

Q: What is your terms of payment?

T/T 30% deposit, balance before shipment. More payment terms available(Paypal, Western Union)

Q: Do you provide OEM/ODM service?

Yes, we do. OEM is accepted with your drawing. ODM with your brand lase in the products by our laser machine and label of the OEM brand would be stuck on the box before goods shipped out.
