Toilet 2M Brass Angle Valve ISO14001 90 Degree Angle Valve
Toilet 2M Brass Angle Valve ISO14001 90 Degree Angle Valve
Specifications
Brand Name :
YALONG
Model Number :
YL707
Certification :
CE, ISO9001, ISO14001
Place of Origin :
CHINA
MOQ :
From 1000Pcs To 5000Pcs , According To The Size
Payment Terms :
L/C, T/T
Supply Ability :
30000Pcs / Day
Delivery Time :
35 Days
Packaging Details :
Usually 1PC/Plastic Bag, 10Bags/White Box, 10Boxes/Carton. Can be customized.
Product Name: :
Brass Angle Valve
Size :
1/2M*1/2F
Handle Material :
ABS
Working Pressure :
145 PSI
Colour :
Chrom polish plated
Media :
Water
Dimension :
1/2M*1/4M 1/2M*3/8M 1/2M*1/2M
Connection :
Male thread
Description

Toilet 90 degree Brass Angle Valve 1/2''inch Surface Polished

  • Description

​Working Pressure 10bar (145 psi)
Working Temperature from 0 ℃ to +80 ℃ (from 32℉ to 176℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)

Test 100% Leakage Testing

Connection end: male thread
Thread standard: ISO228
Warranty 3 years

  • Details

In our own CNAS laboratory, we normally do the
1. life test
2. Dimension
3. Apprearance testing
4. Leakage testing

5.Torsion test
If you have some specific test we also can do it for you.

Quality Control

The production follow the valve standard strictly.

We test each piece valve during the production, quality control in forge, machine, assemble and all the process in order to guarantee the quality.

Special Machine.

Yalong use special machine to save time and cut process so as to make the products best

Forge Process

1. Automatic forging machine
2. Constant temperature
3. 100% Anneal

Brass Test

Every batch of copper test 100%

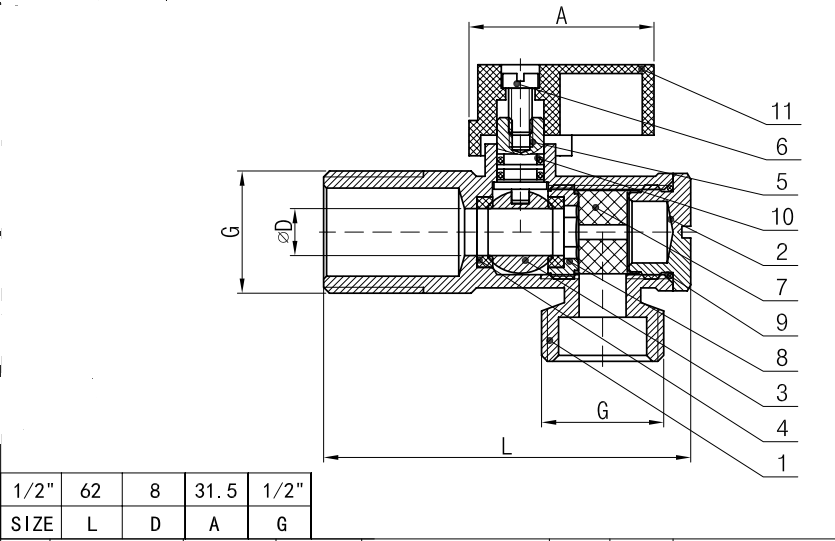

  • Technical Specification

Toilet 2M Brass Angle Valve ISO14001 90 Degree Angle Valve


Materials of Parts

No. Part Materials
1 Body Brass
2 Stem Plastic
3 Valve seat PTFE
4 O-Ring NBR
5 Filter Stainless steel
6 Handle ABS
6 Screw Iron

  • Enterprise Introduction

EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

Yalong Valve, classical and durable, is worth your trust!l

Welcome customers from all of world to win-win cooperation; join hands to create a better future!

Toilet 2M Brass Angle Valve ISO14001 90 Degree Angle Valve

Toilet 2M Brass Angle Valve ISO14001 90 Degree Angle Valve

Toilet 2M Brass Angle Valve ISO14001 90 Degree Angle Valve

Toilet 2M Brass Angle Valve ISO14001 90 Degree Angle Valve

FAQ


Q1. Can I have a sample order for valve?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for valve order?

A: It depends on size ,generally speaking ,from 1/2''--1'',our MOQ is 3000pcs .Above 1'',the MOQ can reduce to 1000 pcs.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It usually takes15- 30 days to arrive. Airline shipping also optional.

Q4. How to proceed an order for valve?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
