PTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve Nut
PTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve Nut
Specifications
Brand Name :
YALONG
Model Number :
YL261
Certification :
CE, ISO9001, ISO14001, ISO228
Place of Origin :
CHINA
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
20000PCS/DAY
Delivery Time :
35Days
Packaging Details :
Normal Package or can be Customized.
Connection :
Male-Female thread
Product name :
Nickel Plated Brass Ball Valve with Nut
Pressure :
Medium Pressure
Structure :
Ball
Temperature of media :
Normal Temperature
Application :
General
Description

YL261 1/2 Inch Brass Ball Valve With Nut Nickel Plated Brass Water Shut Off Valve

Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Yalong
Model Number:
YL261
Application:
General
Power:
manual
Media:
Water, gas
Structure:
BALL
Standard or Nonstandard:
Standard
Connection Type:
Thread
Handle Material:
AL
Handle Type:
TEE
Stem Material:
Brass
Seat Material:
PTFE
Body Seal Material:
PTFE

​​

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Aluminium alloy T handle, professional surface painting, wear resisting, anti-corrosion. Small appearance, flexible in open and close.

O-ring: NBR made of imported raw material, small friction coefficient, long service life and not easy to leak.

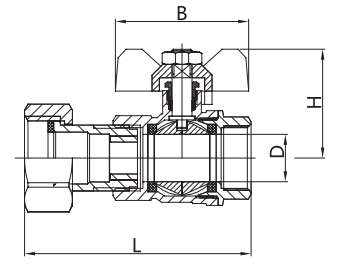

  • Technical Drawing

PTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve NutPTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve Nut

  1. YL261 1/2 " - 1 " F-NPT x M-NPT Nickel Plating Brass Ball Valve With T Handle Aluminum Butterfly Handle
  2. The thread(NPT or BSP or G), color of handle, materials, etc. can be customized.

DN SIZE D H L B
15 1/2'' φ14 39 65.5 50

20

 3/4‘’ φ18 42 77 50
25 1‘’ φ23 51 87 62

Materials of Parts

No. Part Materials
1 Body Brass HPb57-3 , nickel plated
2 Bonnet Brass HPb57-3, nickel plated
3 Ball Brass HPb57-3, chrome plated
4 Seal PTFE
5 Stem Brass HPb57-3
6 O ring NBR
7 O ring Fluorubber
8 Handle Red Aluminum Handle
9 Nut Iron chrome plating

  • Certificates ​
  • Enterprise Introduction

EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

Yalong Valve, classical and durable, is worth your trust!l

Welcome customers from all of world to win-win cooperation; join hands to create a better future!

PTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve Nut

PTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve NutPTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve NutPTFE 2 Inch Brass Ball Valve DN25 Brass Water Shut Off Valve Nut

FQA:
Q: Does your factory have the design and development capabilities, we need the customized products?

A: The staffs in our R&D department are well experienced in the faucet industry, with more than 20 years experience. We can make customized products especially for you, please kindly contact us for more details

Q. If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems. Our products are produced under A strict quality control system. For batch unqualified products, please contact us. Our company will conduct technical research and test according to the problems, and give you A timely solution according to the corresponding situation.
