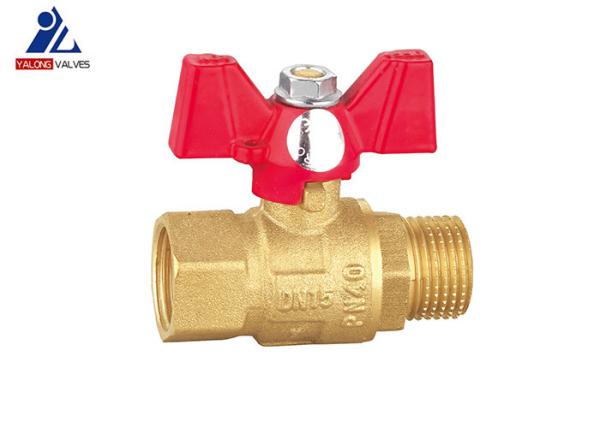

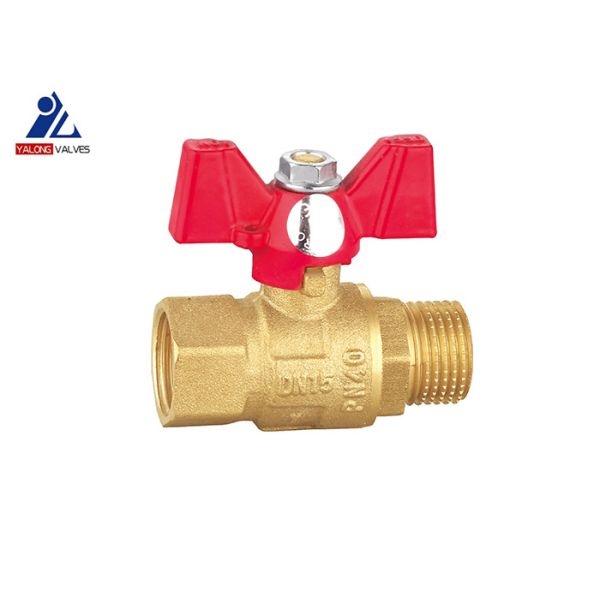

2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male
2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male
Specifications
Brand Name :
YALONG
Model Number :
YL278
Certification :
CE, ISO9001, ISO14001
Place of Origin :
CHINA
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
20000PCS/DAY
Delivery Time :
35Days
Packaging Details :
Normal Packages or can be Customized.
Connection :
Male-Female Connection
Product name :
Brass Ball Valve With Butterfly Handle
Standard :
NPT BSP thread
Medium :
Water, Gas
Temperature of media :
Normal Temperature
Port size :
1/2"-1"
Size :
DN15-DN25
Working pressure :
2.0Mpa (20bar)
Description

YL278 1/2 " - 1 " Female X Male Brass Ball Valve Natrue Color Brass Butterfly Valve

Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Yalong
Model Number:
YL278
Application:
General
Temperature of Media:
-10°C to 150°C
Power:
manual
Media:
Water
Port Size:
1/2"-1"
Structure:
BALL
Standard or Nonstandard:
Standard
Handle Material:
Aluminum
Handle Type:
TEE Handle
Stem Material:
Brass HPb57-3
Seat Material:
PTFE
Body Seal Material:
PTFE

​​

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Aluminium alloy T handle, professional surface painting, wear resisting, anti-corrosion. Small appearance, flexible in open and close.

O-ring: NBR made of imported raw material, small friction coefficient, long service life and not easy to leak.

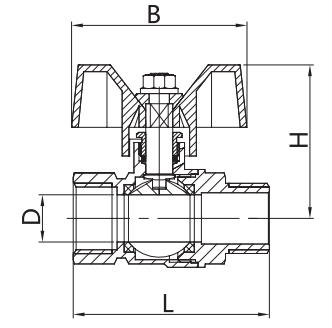

  • Technical Drawing

2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male

  1. YL278 1/2 " - 1 " Female X Male Brass Ball Valve Natrue Color Brass Butterfly Valve
  2. The thread(NPT or BSP or G), color of handle, materials, etc. can be customized.

DN SIZE D H L B
15 1/2'' φ14 44 59 52

20

 3/4‘’ φ18 46.5 63 58.5
25 1‘’ φ23 61 74 64.5

Materials of Parts

No. Part Materials
1 Body Brass, nature color
2 Bonnet Brass, nature color
3 Ball Brass, chrome plated
4 Seal PTFE
5 Stem Brass
6 O ring NBR
7 O ring Fluorubber
8 Handle Red Aluminum Handle
9 Nut Iron

  • Certificates ​
  • Enterprise Introduction

EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

Yalong Valve, classical and durable, is worth your trust!l

Welcome customers from all of world to win-win cooperation; join hands to create a better future!

2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male

2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male2.0Mpa Brass Ball Valve BSP Half Inch Pex Ball Valve Female X Male

  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.


Q: Can you accept OEM?
A: Yes, we can do OEM. We can produce according to customers' drawings or samples.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems. Our products are produced under A strict quality control system. For batch unqualified products, please contact us. Our company will conduct technical research and test according to the problems, and give you A timely solution according to the corresponding situation.
