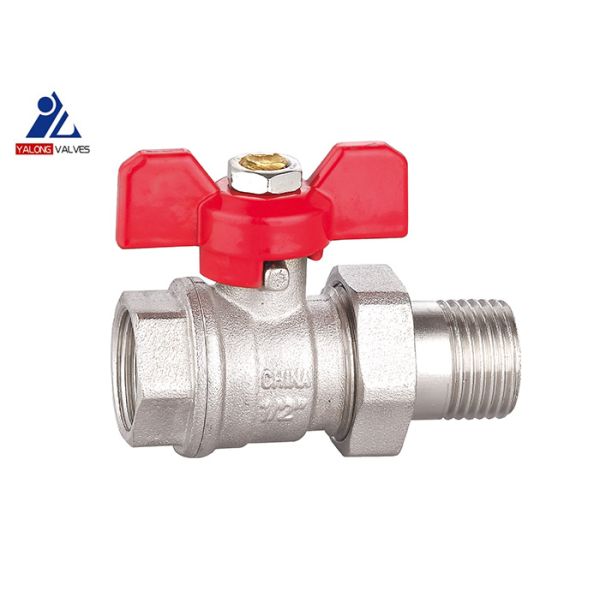

ISO228 Water Ball Valve Gas BSP Male Chrome Plated Nut
ISO228 Water Ball Valve Gas BSP Male Chrome Plated Nut
Specifications
Brand Name :
YALONG
Model Number :
YL262
Certification :
CE, ISO9001, ISO14001, ISO228
Place of Origin :
CHINA
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
20000PCS/DAY
Delivery Time :
35Days
Packaging Details :
Normal Package or can be Customized.
Connection :
Male-Female
Product name :
Brass Ball Valve with Nut
Standard :
NPT , BSP thread
Medium :
Water, Gas
Temperature of media :
Normal Temperature
Port size :
DN15-DN25,1/2"-1"
Description

YL262 1/2 '' Chrome Plated Brass Ball Valve Forged Brass Ball Valve Water Ball Valve With Nut

Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Yalong
Model Number:
YL262
Application:
General
Power:
manual
Media:
Water, gas
Port Size:
1/2"-1"
Structure:
BALL
Standard or Nonstandard:
Standard
Connection Type:
Thread
Handle Material:
AL
Handle Type:
TEE
Stem Material:
Brass
Seat Material:
PTFE
Body Seal Material:
PTFE

​​

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Aluminium alloy T handle, professional surface painting, wear resisting, anti-corrosion. Small appearance, flexible in open and close.

O-ring: NBR made of imported raw material, small friction coefficient, long service life and not easy to leak.

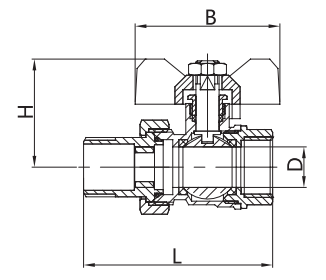

  • Technical Drawing

ISO228 Water Ball Valve Gas BSP Male Chrome Plated NutISO228 Water Ball Valve Gas BSP Male Chrome Plated Nut

  1. YL260 1/2 " - 1 " F-NPT x M-NPT Nickel Plating Brass Ball Valve With T Handle Aluminum Butterfly Handle
  2. The thread(NPT or BSP or G), color of handle, materials, etc. can be customized.

DN SIZE D H L B
15 1/2'' φ14 39 65.5 50

20

 3/4‘’ φ18 42 77 50
25 1‘’ φ23 51 87 62

Materials of Parts

No. Part Materials
1 Body Brass HPb57-3 , nickel plated
2 Bonnet Brass HPb57-3, nickel plated
3 Ball Brass HPb57-3, chrome plated
4 Seal PTFE
5 Stem Brass HPb57-3
6 O ring NBR
7 O ring Fluorubber
8 Handle Red Aluminum Handle
9 Nut Iron chrome plating

  • Certificates ​
  • Enterprise Introduction

EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

Yalong Valve, classical and durable, is worth your trust!l

Welcome customers from all of world to win-win cooperation; join hands to create a better future!

ISO228 Water Ball Valve Gas BSP Male Chrome Plated Nut

ISO228 Water Ball Valve Gas BSP Male Chrome Plated NutISO228 Water Ball Valve Gas BSP Male Chrome Plated NutISO228 Water Ball Valve Gas BSP Male Chrome Plated Nut

FQA:

Q1: Can you accept OEM?
A: OEM is no problem,we can produce according to your requirment and open new mould for you.

Q2: How long is your delivery time? FQA
A: Usually we can promise 30-35 days, if there have the stock, will delivery at once

Q3: Can l get samples from your factory?
A: Samples available,We usually provide existing sample for free. and If it need make new samples according to your specifications, it will take about 15 working days​.
