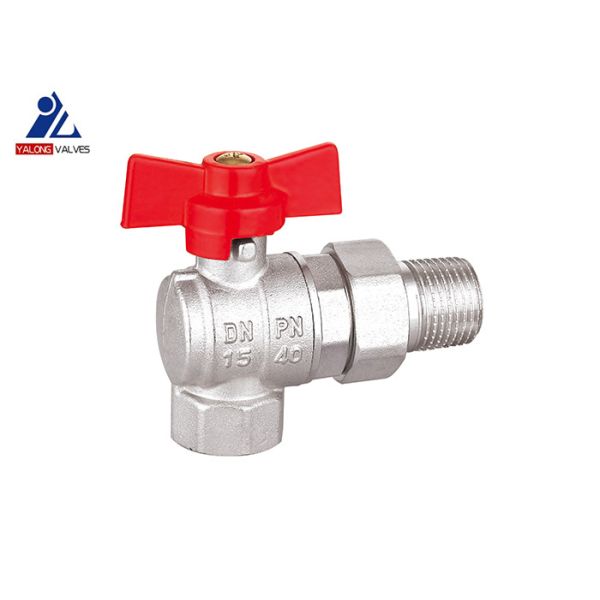

YL220 1/2 " To 1 " Male X Female Brass Ball Valve Angle Type Revolve Pipe Union T Handle

• Description

Working Pressure 25bar (362.5 psi)

Thread ISO228 (equivalent to DIN 259 and BS2779)

Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉) ​​

• Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Aluminium handle, professional surface painting, wear resisting, anti-corrosion. Small appearance, flexible in open and close.

O-ring: NBR made of imported raw material, small friction coefficient, long service life and not easy to leak.

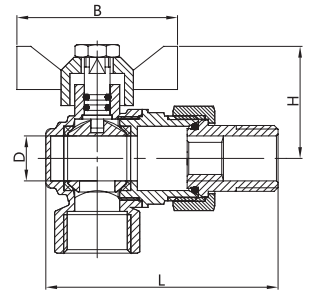

• Technical Drawing

• Technical Specification

1. Full flow Male x Female brass ball valves angle type with revolve nut with T handle.
2. The thread, color of handle, materials, etc. can be customized.

Materials of Parts
