HPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 Inch
HPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 Inch
Specifications
Brand Name :
YALONG
Model Number :
YL203
Certification :
CE ISO9001 ISO1801
Place of Origin :
CHINA
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, Western Union, Western Union
Supply Ability :
30000PCS PER DAY
Delivery Time :
35Days
Packaging Details :
Normal Package or can be Customized.
Product name :
Brass Ball Valve
MATERIAL :
HPB57-3
Color :
Customer's Request
THREAD :
ISO228
Structure :
Ball
Port size :
1/4"-4"
Media :
Water,Gas,Oil
Working temperature :
-20℃ to 120℃
Description

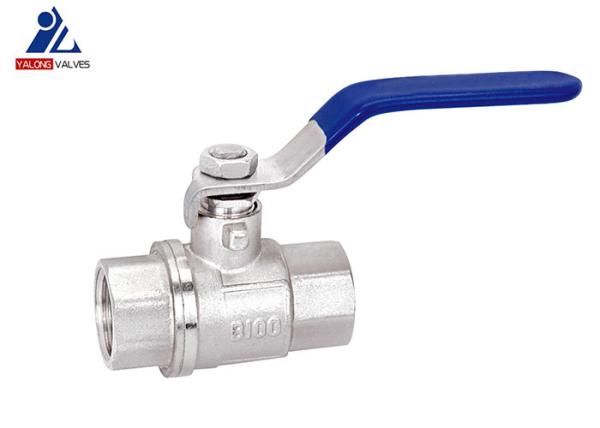

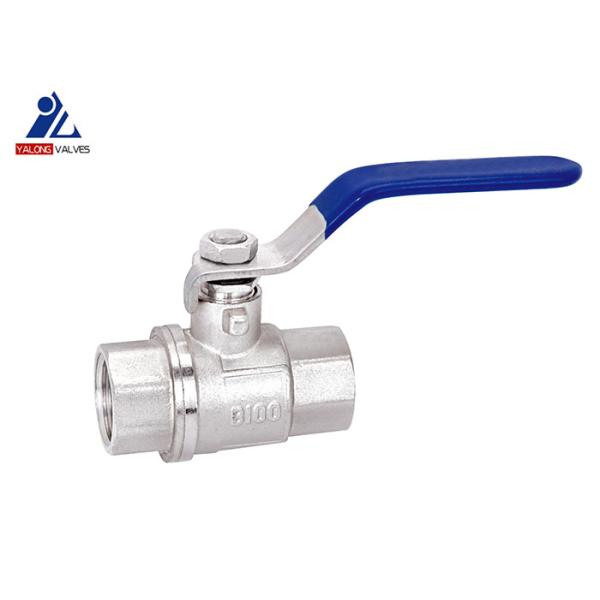

YL203 1/4 Inch to 4 Inch Steel Handle Chrome Plated Brass body Nickel Plated Brass Ball Valves

  • Technical Standard

1. ​Nominal Pressure: 2.0MPa

2. Working Temperature: from -20℃ to +150 ℃

3. Structure Ball

4. Parallel Pipe Thread: ISO228

​​

Nickel Plating Brass Ball Valve

Full flow Female BSP x Female BSP brass ball valves (brass ball & stem) fitted with Iron lever handle are used for a variety of applications including oil and water. They are steam rated with PTFE stem packing. CE approval. Ball & stem nickel-then-chrome plated for smooth operation.
  • Technical Drawing
  1. Female x Female brass threaded ball valves with Iron flat lever handle.
  2. The thread(NPT or BSP), color of handle, materials, etc. can be customized.

HPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 InchHPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 Inch

DN SIZE D H L B
8 1/4'' φ8 42 43 85
10 3/8'' φ10 42 43 85
15 1/2'' φ15 50 56 98
20 3/4'' φ19 53 67 98
25 1'' φ24.5 60 77 126
32 1-1/4'' φ31 71 89 145
40 1-1/2'' φ39.5 90 100 164
50 2'' φ49 97 119 164
65 2-1/2'' φ65 120 144 230
80 3'' φ80 125 160 230
100 4'' φ100 135 189 230

Materials of Parts

No. Part Materials
1 Body Brass
2 Bonnet Brass
3 Ball Brass or S.S or Iron
4 Seal PTFE
5 Stem Brass or Iron
6 O ring NBR
8 Handle Iron
9 Nut Iron

​

  • Enterprise Introduction

EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

Yalong Valve, classical and durable, is worth your trust!l

Welcome customers from all of world to win-win cooperation; join hands to create a better future!

HPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 Inch

HPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 InchHPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 InchHPB57 Steel Brass Ball Valve ISO 228 Chrome Plated Ball Valve 4 Inch
