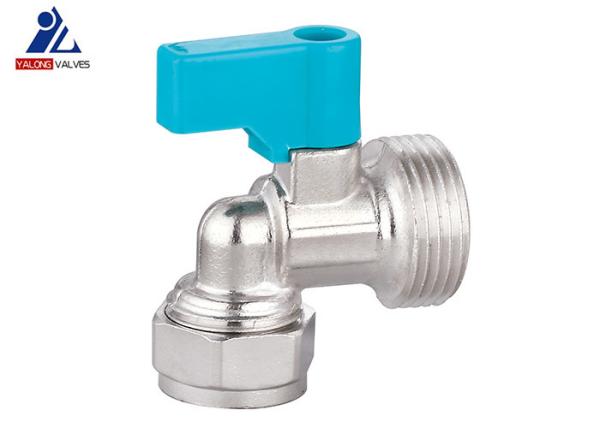

HPb 3 Washing Machine Isolation Valve C X M Brass Union Ball Valve
HPb 3 Washing Machine Isolation Valve C X M Brass Union Ball Valve
Specifications
Brand Name :
Yalong or OEM
Model Number :
YL529
Certification :
CE, ISO9001, ISO14001
Place of Origin :
Zhejiang, China
MOQ :
Negotiated
Price :
Negotiated
Delivery Time :
35days
Packaging Details :
Standard export package or Customized
Item :
Washing Machine Valves
Brass Material :
Copper HPb57-3 brass
Connection type :
Pex Connection
Size :
15mm x 3/4 ''
Working pressure :
1.0MPa
Product name :
Brass Isolation Valve C x M
Description
YL529 C X M Brass Isolation Valve Pex Connect Washing Machine Valve Nickel Plated Brass Union Valve
Quick Details
Type:
Washing Machine Valves
Place of Origin:
China, Zhejiang
Brand Name:
Yalong
Model Number:
YL529
Application:
General
Temperature of Media:
Normal Temperature
Power:
manual
Media:
Water
Port Size:
pex
Structure:
BALL
Product name:
isolation valve
Material:
brass
Pressure:
PN16
Usage:
Water Control
Size:
Standard Size
Certificate:
ISO9001
  • Details

​Brass Valve Body: Forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Professional surface: Nickel plating.

Valve stem: Processed by hot-rolled copper bar, which has strong hardness and can effectively prevent deformation and fracture when the valve is switched.

Spool: Made of high grade brass with smooth surface and good sealing performance.

Seal ring: EPDM seal ring and spool double seal prevent leakage.

Handle: Blue Plastic materail handle.

Drawings:


HPb 3 Washing Machine Isolation Valve C X M Brass Union Ball ValveHPb 3 Washing Machine Isolation Valve C X M Brass Union Ball Valve

Size D H D1 L B G
3/4 '' x φ15 φ8 31 φ15 32.5 31.5 3/4 ''

Materials of Parts

No. Part Materials
1 Body Brass, nickel plated.
2 Ball Brass, nickel plated.
3 Seal EPDM
4 Spool Brass
5 Stem Brass
6 Handle Plastic, blue color

​​

  • Enterprise Introduction

EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

Yalong Valve, classical and durable, is worth your trust!l

Welcome customers from all of world to win-win cooperation; join hands to create a better future!

HPb 3 Washing Machine Isolation Valve C X M Brass Union Ball Valve

HPb 3 Washing Machine Isolation Valve C X M Brass Union Ball ValveHPb 3 Washing Machine Isolation Valve C X M Brass Union Ball Valve

HPb 3 Washing Machine Isolation Valve C X M Brass Union Ball Valve

FQA:

1. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. Maybe 30days. Different countries different time.

2. How to proceed an order for valves?

A: Firstly, tell us your requirements.

Secondly, we offer based on your requirements.

Thirdly, customers confirm the samples and make the order. Pay deposit for the confirmed order.

Fourthly, we arrange the production.
