3/4 inch SS OEM Brass Air Manifold Customized Max.16bar 3/4X16 Manifolds water separator
3/4 inch SS OEM Brass Air Manifold Customized Max.16bar 3/4X16 Manifolds water separator
Specifications
Brand Name :
Taizhou XingNuo
Model Number :
MF1602
Place of Origin :
Zhejiang Taizhou
MOQ :
5000Pcs
Payment Terms :
T/T
Packaging Details :
Xingnuo Package
Stem Material :
Brass
Nominal Pressure :
≤1.0Mpa
Working Temperature :
-10~110°C（14～238°F）
Threaded :
ISO228/1
Processing Technic :
Sand blast and nickel plate
OEM :
Customized
Handle Material :
Aluminium
Pipeline :
Two-Ten Way
Seal Material :
PTFE
Valve Size :
1/4
Feature :
Durable
Type :
Manifold
Applicable :
water / gas
Application :
Pneumatic/Hydraulic Systems
Pressure :
Max.16bar
Normal Temperature :
-10~110°C
Size :
1/4
Material :
Brass
Maximum Temperature :
200°F
Applicable Medium :
cold, hot water natural gas
Description

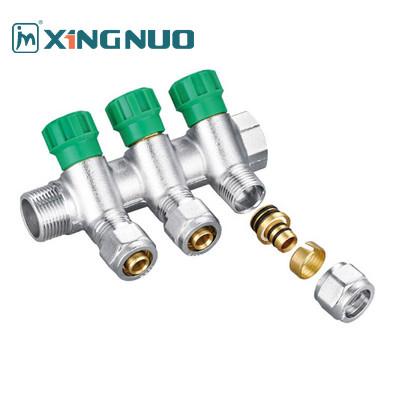

MF1602 3/4"x16 Brass Manifolds

Specification

  • ​forged brass body
  • sand blast and nickel plated
  • nominal pressure:Max.16bar
  • temperature:-10~110°C(14～238°F)
  • threaded ISO228/1
  • 100% leak tested

Technical Specification

3/4 inch SS OEM Brass Air Manifold Customized Max.16bar 3/4

Dimensions

SIZE

 A B C D E F G
3/4"x16-2 93 36 47.5 27

Φ16

 32 3/4"
3/4"x16-3

129

 36 47.5 27 Φ16 32 3/4"
3/4"x16-4 165 36 47.5 27 Φ16 32 3/4"

Product Details

  • Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Ball Valve: Smooth and wear resisting, with good sealing performance.

  • Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

  • Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

  • Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

  • Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.

  • O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

  1. Brass Manifold with Aluminium handle.
  2. Distrustion Manifold in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates of MF1602

3/4 inch SS OEM Brass Air Manifold Customized Max.16bar 3/4

Brass Manifold series

  • The water collector refers to the water supply and return collection and distribution, flow regulation and control, and can manually or automatically eliminate the gas gathering at this part.

Compant Profiles

1. The product in question is a customized air manifold designed to accommodate a maximum pressure of 16 bar. This manifold features a 3/4 inch stainless steel (SS) construction, ensuring durability and resistance to corrosion. The design incorporates brass components, which enhance the manifold's performance and reliability in various applications, particularly in systems requiring efficient air distribution.

2. This specific air manifold is engineered with a 3/4" x 16 configuration, making it suitable for a range of industrial and commercial uses. The integration of a water separator within the manifold is a key feature, as it effectively removes moisture from the air supply, thereby protecting downstream equipment from potential damage caused by water contamination. This functionality is crucial in maintaining the integrity and efficiency of pneumatic systems.

3. Tailored to meet original equipment manufacturer (OEM) specifications, this air manifold is an ideal solution for those seeking a high-quality component that can withstand demanding operational conditions. Its robust construction and thoughtful design make it a reliable choice for professionals in various sectors, including manufacturing, automotive, and construction, where efficient air management is essential for optimal performance.

3/4 inch SS OEM Brass Air Manifold Customized Max.16bar 3/4

Packaging Details

SIZE Weight(g) Inner Box(mm) Carton(mm)

Qty per

inner box

Qty per

carton
3/4"x16-2 410 31x10x8 41x32x21 5 50
3/4"x16-3 550 31x14x8 33x32x29 5 40
3/4"x16-4 700 31x17x8 35x32x17 5 20

Q&A

Q:How long is your delivery time?

A:

Q:What is your MOQ?

A:

Q:Can you accept OEM?

A:
