Brass Profiles L Angle Profile Copper Alloy L Section For Stair Trim
Production show

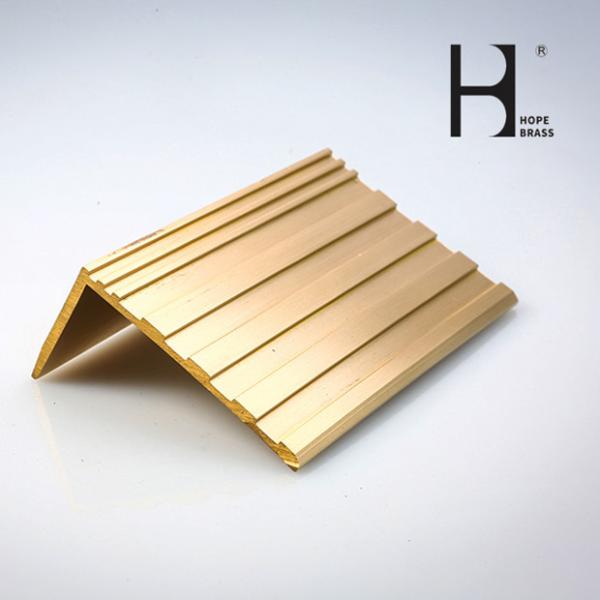

1. Brass L profiles
01. Material: the material of copper bar is the raw material of copper bar, the most convenient to distinguish is brass bar and copper bar, copper is more expensive than brass, copper bar is more expensive than brass in general.
02. Delivery time:10-20days after receiving the deposit.
03. Customize as needed. The mold can be designed according to the material grade of the customer's drawing or sample.
04. Samples are free.
05. High quality brass extrusions, more wear-resistant and durable, high hardness, the finished product is not easy to bend.
06. Anti-fade: high quality brass material, special surface treatment, drawing effect texture is extraordinary.
07. OEM and ODM are accepted, Brass extrusion profiles can be extruded into different shape.
GB | DIN | EN | ISO | UNS | JIS | ||
TU2 | OF-Cu | 2.0040 | Cu-OFE | CW009A | Cu-OF | C10100 | C1011 |
- | SE-Cu | 2.0070 | Cu-HCP | CW021A | - | C10300 | - |
- | SE-Cu | 2.0070 | Cu-PHC | CW020A | - | C10300 | - |
T2 | E-Cu58 | 2.0065 | Cu-ETP | CW004A | Cu-ETP | C11000 | C1100 |
TP2 | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DHP | C12200 | C1220 |
- | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DHP | C12200 | C1220 |
- | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DLP | C12200 | C1220 |
TP1 | SW-Cu | 2.0076 | Cu-DLP | CW023A | Cu-DLP | C12000 | C1201 |
H96 | CuZn5 | 2.0220 | CuZn5 | CE500L | CuZn5 | C21000 | C2100 |
H90 | CuZn10 | 2.0230 | CuZn10 | CW501L | CuZn10 | C22000 | C2200 |
H85 | CuZn15 | 2.0240 | CuZn15 | CW502L | CuZn15 | C23000 | C2300 |
H80 | CuZn20 | 2.0250 | CuZn20 | CW503L | CuZn20 | C24000 | C2400 |
H70 | CuZn30 | 2.0265 | CuZn30 | CW505L | CuZn30 | C26000 | C2600 |
H68 | CuZn33 | 2.0280 | CuZn33 | CW506L | CuZn35 | C26800 | C2680 |
H65 | CuZn36 | 2.0335 | CuZn36 | CW507L | CuZn35 | C27000 | C2700 |
H63 | CuZn37 | 2.0321 | CuZn37 | CW508L | CuZn37 | C27200 | C2720 |
HPb63-3 | CuZn36Pb1.5 | 2.0331 | CuZn35Pb1 | CW600N | CuZn35Pb1 | C34000 | C3501 |
HPb63-3 | CuZn36Pb1.5 | 2.0331 | CuZn35Pb2 | CW601N | CuZn34Pb2 | C34200 | - |
H62 | CuZn40 | 2.0360 | CuZn40 | CW509N | CuZn40 | C28000 | C3712 |
H60 | CuZn38Pb1.5 | 2.0371 | CuZn38Pb2 | CW608N | CuZn37Pb2 | C35000 | - |
HPb63-3 | CuZn36Pb3 | 2.0375 | CuZn36Pb3 | CW603N | CuZn36Pb3 | C36000 | C3601 |
HPb59-1 | CuZn39Pb2 | 2.0380 | CuZn39Pb2 | CW612N | CuZn38Pb2 | C37700 | C3771 |
HPb58-2.5 | CuZn39Pb3 | 2.0401 | CuZn39Pb3 | CW614N | CuZn39Pb3 | C38500 | C3603 |
- | CuZn40Pb2 | 2.0402 | CuZn40Pb2 | CW617N | CuZn40Pb2 | C38000 | C3771 |
- | CuZn28Sn1 | 2.0470 | CuZn28Sn1As | CW706R | CuZn28Sn1 | C68800 | C4430 |

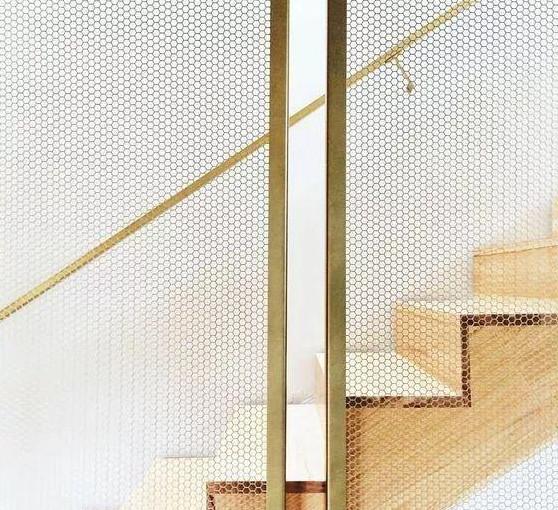

2. Pictures
3.Production Features
