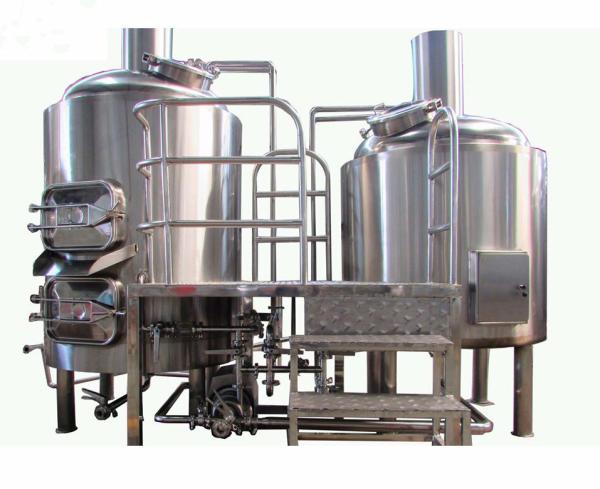

20BBL Stainless Steel 2 Vessels Brewhouse Brewery Equipment With Electric Heating

Product Description

Two vessels brewhouse is a little special structure in microbrewery, which consists of a combined vessel of mash/lauter tun on top and whirlpool tun or hot liquor tank on bottom, and another vessel of brew kettle. This kind structure is suitable for those who want to lauter wort by gravity without grant, do fly sparge, save budget or save floor area etc.. It can be placed in restaurants, pub, bars, hotels or independent brewing room, which is common and popular in some European countries. If the budget and space is allowed, the typical mash/lauter tun+kettle/whirlpool tun+hot liquor tun is still recommended as it is easier to understand and operate.all the tanks use SUS304/316/316L SS from TISCO, the tested parameters comply with the requirements stated in the Council of Europe Resolution CM/Res(2013)9 and Regulation (EC) No 1935/2004 on materials in contact with foodstuffs of the European Parliament and of the Council of 27 October 2004.

Standard Features

2 Vessels Brewhouse--7BBL/10BBL/15BBL/20BBL/30BBL or customized

Mash Lauter Tun with grist hydrator

Kettle Whirlpool Tank with heating jacketed

Grant Tank

Stainless steel Platform

Plate Heat Exchanger

Sanitary Wort Pump x2;

Wort Oxygenator;

Semi-Auto Control Panel;

Interior surface to finish pickled and passivated

Exterior surface to brushed, #4 finish

Or

Interior surface to polished to RA≤0.22μm

Exterior surface adapts satin polish.

Heating Methods:

Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;

Electric: Use electric heaters in jacket to heat the medium in the jacket

Gas fired: Use gas burner at bottom to heat tank directly

Quick overview of two vessels brewhouse

Main components of the 20L beer brewing brewhouse:
