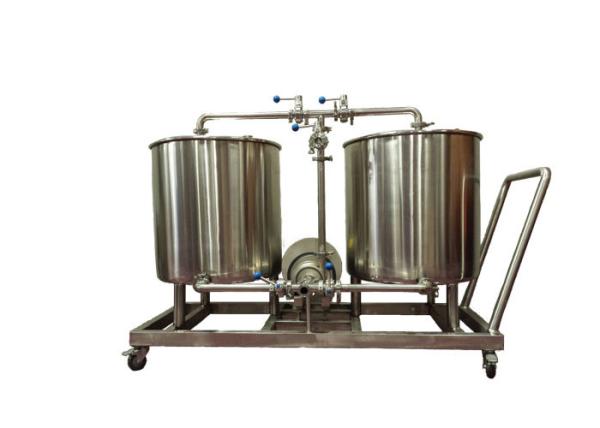

2000L 304 Stainless Steel Fully Automated CIP System In Horizontal Type

CIP cleaning device can be used as a non-resolved production equipment as well as the simple operation method full-autometic cleaning system.It almost has been used in all foodstuff,beverage and pharmacy etc.

CIP cleaning deviced not only can clean the machine,but also can control the mi-crobiology cleaning method.

1. Make the production plan rationalize and improve the production ability,

2. Comparing with washing in hand,it not only hasn't influence the cleaning effect due to different operations,but also it can develop the products quality.

3. It can prevent the dangerous while cleaning operation and save the labor strength.

4. It can save the cleaning agen,steam,water and production cost.

5. It can increase the use year limit of the machine parts.

6. CIP cleaning device divides into manual and half-automatic and full-automatickinds,which can be selected by users.

Main structure and working principle:
This equipment mainly consists of acid-base fluid tank, clean tank, rack, cleaning fluid dispenser and pump and other components sent
1 acid, lye tank and clean water tank
Three storage tanks used for storing cleaning fluid, cleaning process requirements can be prepared in accordance with cleaning fluid composition, concentration, and by acid, lye tank of steam heating coil, the cleaning fluid can be heated to the required temperature, tank is a pressure vessel, made of stainless steel plate, barrel body thermometer equipment, barrel up and down with back and output interfaces. The top two holes and cleaning fluid inlet, the bottom also has a condensate outlet and waste outlet, clear water out of the sink device and export only, no return mouth, rinse with water is a one-time emissions. The discharge pipe emissions and could no longer return to the acid, lye, in acid, lye between the tank and clean the sink. Acid-base fluid and waste water emissions in the tank connection pipe at the bottom left, open with a cover, seal the round nut, can achieve emissions.
Splitter and sent through a cleaning fluid over the external, may form a cycle of cleaning fluid return line system.
2 Rack: This rack is made of stainless steel materials, bearing in addition to cleaning liquid distributor sent all outside agencies, so that the device compact.

Cleaner temperature (℃) concentration time (min)

(class)

Sterile water ClO2 press RT 2ppm 5.

Alkaline water NaOH 500.5 ~3% 20.

80 5 hot water

Hot water sterilization

Hot water 50 20

(after)

Sterile water ClO2 disinfection and washing RT 2ppm 5.

Alkaline water NaOH 500.5 ~3% 20.

80 5 hot water

Hot water sterilization

Hot water 50 20

Aseptic water ClO2 was used for washing RT 2ppm 5~10.

(regular)

Acid wash HNO3 to scale RT 1~3% 10~15.

Sterile water ClO2 disinfection and washing RT 2ppm 15~20.

The pressure P= 0.2mpa in the pipeline is the most ideal for the cleaning time.
