3/4" - 6", DN10 - DN150 Butterfly Valve Auxiliary Brewing Equipment Beer Brew

Quick Details
1. Products: Butterfly Valve
2. Size: 3/4" - 6", DN10 - DN150
3. type: Trip-clamp
4. Material: Sanitary Stainless Steel 304
5. Function: Seal With Press
6. Over 10years strong factory
7. Customized service

Feature

Description

Sanitary butterfly valve ( stainless steel butterfly valve, welded butterfly valve, flang butterfly valve, thresded butterfly, clamped butterfly valve, SMS butterfly valve, DIN butterfly valve, ISO butterfly valve, valve)

The manual butterfly valves are featured in low cost, easy maintenance, and simple structure. They are good choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical,Chemical industries
Size : 1/2″ – 10″
Body Materials: Stainless Steel 304 or 316L/1.4301,1.4404
Seat Materials: Silicone ,EPDM,VITON,NBR
Max.pressure:10 bar (DN-25/100),8 bar (DN-125/150)
Min.pressure:0.2 bar
Operating temperature:-10℃ to–120℃ (EPDM)
Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other
Handles types
Pulling Handle – 2/3/4 position
Square Pull Handle – 2/3/4 position
Multi-position Plastic Handle – Adjustment 15° 12 position
Stainless Steel triggle Handle – Adjustment 15° 12 position

Detailed Product Description
1. Name: Sanitary stainless steel butterfly valve with plug handle
2. Size: 1"-8", DN25-DN200
3. Material: SUS304, SUS316, SUS316L
4. Standard: DIN, SMS, ISO, 3A
5. Connector: Butt-welde, threaded, clamp, flanged
6. Power: Manul & Pneumatic

Application
Beer, Milk, Beverage, Food, Pharmacy industry

Performance features
Butterfly Valve is installed in storage tank top of security emergency ventilation device, usually and fire players, and machinery breathing valve supporting using, both can avoid due to accident causes caused tank within sharp Super pressure or vacuum Shi, damaged storage tank and occurred accident, and has up to security resistance fire role, is protection storage tank of security device, special applies Yu storage material to nitrogen capped of vaulted atmospheric tank. Constant pressure constant pressure inhalation, emissions, opening and closing with flexible, secure, fire resistant, compact, good sealing performance, security, reliability and so on.Stainless steel manholes 304, material of steel is generally used as a raw material to produce. Stainless steel manholesManhole emergency pressure relief hole, explosion-proof fire breathing manhole, tank top manhole, tank, such as core-wall manhole and manhole.

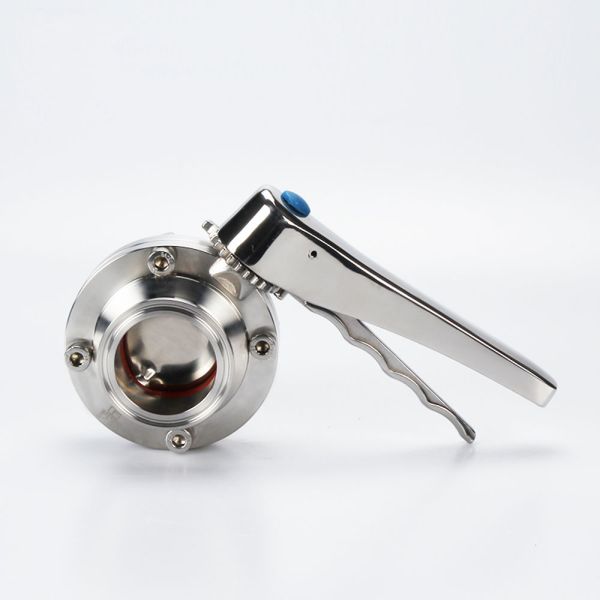

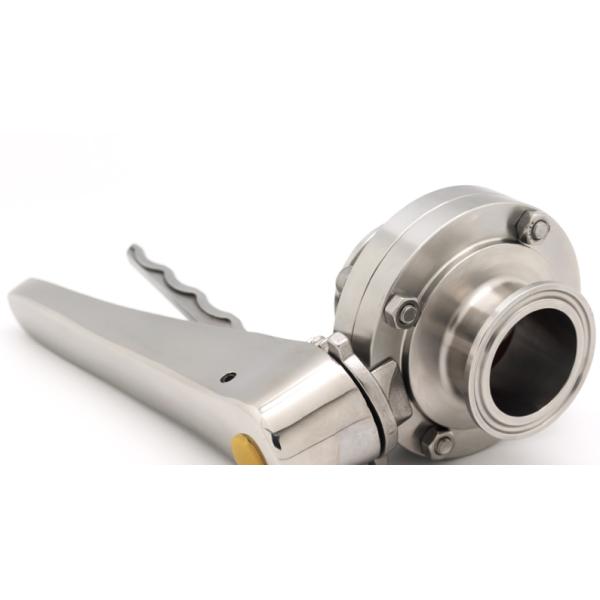

Products Pictures
