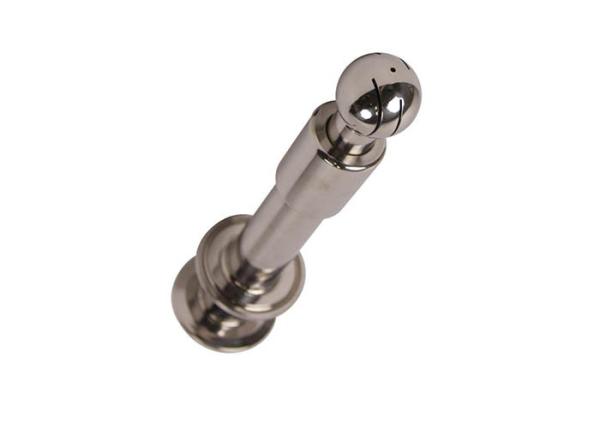

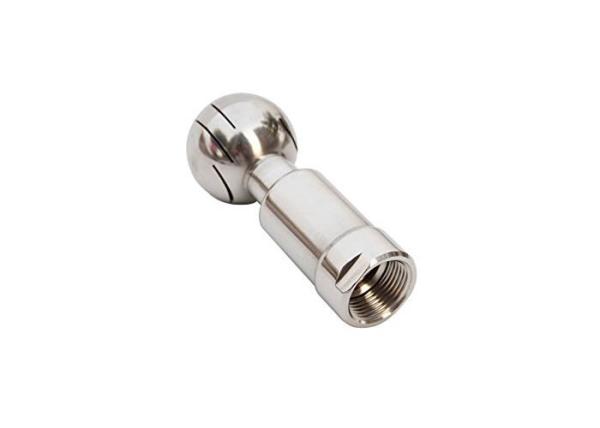

1"~2.5" Female Thread Sanitary Rotating CIP Spray Ball Brewing Accessories With Round / Oval Shape Ball Head

Product Description

Spray balls are used in the beverage industry to simplify the interior cleaning of tanks and piping. A fermentation or brite tank can be showered with high-velocity water and/or chemicals on the interior, causing a sheeting action down the vessel walls removing residues and sanitizing the tank. CIP spray balls are not only faster, but significantly safer for workers by removing the need for hand scrubbing and exposure to cleaning agents.

Working principle

Rotary cleaning ball: The cleaning solution make the sprayer rotary by it's motive power, then the fun jet created the whole tank and reactor with vortex.

In that way, clean the remains of vessel surface effectively, reach the function of cleaning.

Fixed cleaning ball: The cleaning ball is through the sprayer small hole, create the injection all around. In that way, clean the remains of vessel surface effectively, reach the function of cleanin

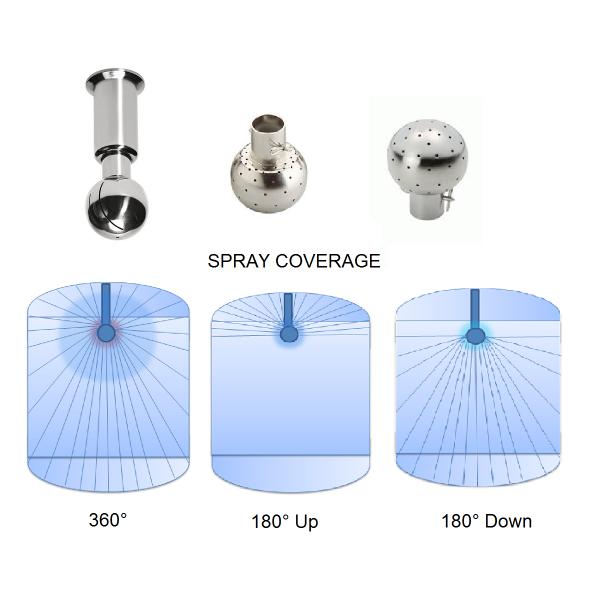

Rotating vs. Fixed / Pin-Style

Much like the rotating arm of a dish washer, a rotating spray ball offers cleaning advantages over a fixed or pin-style CIP system. A rotating spray ball can create a scrubbing like effect and offer better coverage. Stationary spray balls may not provide sufficient impact (pressure applied to the cleaning surface), or if any of the pores happen to clog, particularly in a mash tun or brew kettle, often create a 'dead spot' where manual cleaning is necessary.

• SS304
• 1" (25.4mm) Tubing
• 1.5" (50.5mm) Tri Clamp Top
• 2.5" (64mm) Thru the Wall Tri Clamp

Characteristics:

1. Installed onto the tank inside with thread connection

2. Made of high quality 304 / 316L stainless steel and EPDM /NBR seal material

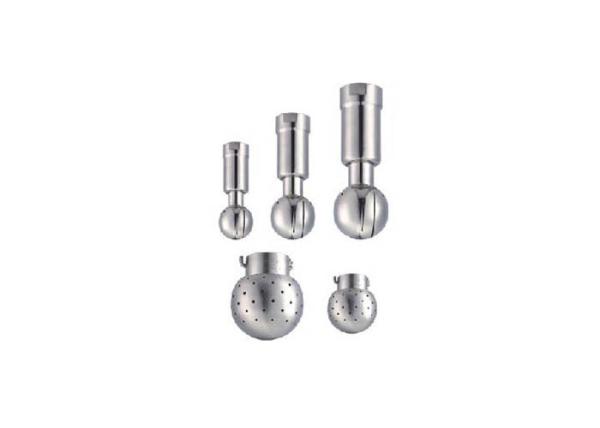

3. Ball head can be in round or oval shape

4. Ball head can rotate in 360 degrees direction

5. Compliance with hygienic industry standard

Advantages:

1. Dual ball bearing design with excellent rotation effects

2. Self-cleaning self-luvricating design

3. Cleaning without dead angle

4. Much low consumption of cleaning liquid than traditional fixed direction spray cleaning balls

5. Applicable to CIP cleaning of all kinds of sanitary hygienic tanks and vessels.

Specification:

Spary Ball Images
