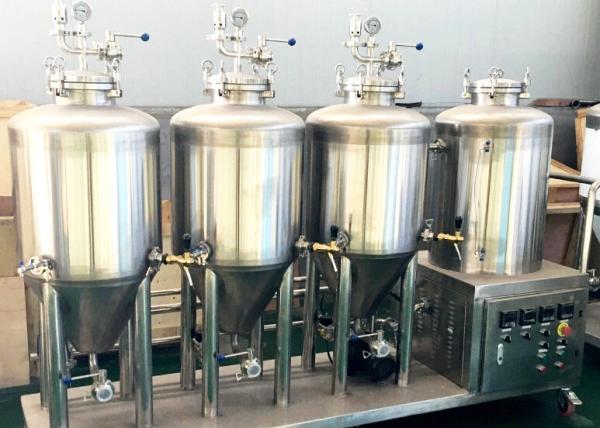

1BBL Pilot Brewing Equipment Heated By Steam Mirror Polished Interior Shell

Stainless steel Home/pilot brewing equipment is designed for home brewery who brew for hobby, recipe testing, teaching etc..The design ideas of homebrew are from the professional beer brewing system but it is with a more flexible and economical structure. Professional home brew system will bring you impressive experience of a professional brewing process. It is not a simple replacement for brew master but the start of realizing dream!

All our tanks fabricated by certified 304 stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate Jacket for Glycol Cooling & High Efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions.

Quick Overview

Main Configuration

A. Brewhouse System
1x 1BBL mash&lauter&kettle tun
Dished top and sloped bottom
Heating: Electric;
Power: 8kw

B. Fermentation Tank
2x1BBL stainless steel fermentation tanks
Insulation: Polyurethane
Glycol Jacket: Dimple plate
Pressure gauge

C. Controlling Unit
PLC Controller

Advantages

1. Easy to operate: include all the kits to start to brew, offer instruction manual.
2. Easy to clean: Equip with CIP system and spray cleaning ball for the brewing equipment.
3. Compact: floor space only 2-5 sq.m.
4. Movable: Equip with wheels

5. Technology: Fermentation-Double jacket conical fermenter simultaneous brewing, perfect welding.

6. The continual recirculation of wort during the mash results in a satisfactory efficiency.

Temperature measuring is by bi-metal thermometer.

Reference operating method

Its operation is very simple. And that is why it is very popular in the home brewing cycle.

Mashing
-At the beginning, put the portable detachable inside shell(with false bottom ) into the brewhouse tanks
-Add water
-Set the suitable temperature on control panel and start to heat -Then put the grain into the inside shell
-At the same time,reset the temperatures according to the recipe
-After about one hour,it will finish mashing

Lautering
-Using a holder to raise the inner shell gradually to lauter and remove the spent grain.
-Reset the temperature for starting boiling after lautering

Boiling and adding the hop
-During boiling, add the hops at appropriate
