Mirror Polish 220V Small Scale Beer Brewing Equipment Electric Heating For Hotel
Mirror Polish 220V Small Scale Beer Brewing Equipment Electric Heating For Hotel
Mirror Polish 220V Small Scale Beer Brewing Equipment Electric Heating For Hotel
Mirror Polish 220V Small Scale Beer Brewing Equipment Electric Heating For Hotel
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150 Set / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging) for small brewing equipment
Material :
Stainless Steel
Color :
Mirror Polish
Thickness :
2.00 mm - 3.00 mm
Processing :
Fermenting Equipment
Heating Method :
Electric Heated
Usage :
For Hotel, Bar, Brewery
Description

Mirror Polish Surfacement For Small Brewery Equipment With Electric Heated (CE Approved Material)

Daily Output 100L 200L 300L 500L 600L 800L 1000L 2000L 3000L 5000L
Unit Type EH100 EH200 EH300 EH500 EH600 EH800 EH1000 EH2000 EH3000 EH5000
Floor Space 15m² 20m² 25m² 45m² 55 m² 70m² 80m² 120m² 150m² 250m²
Power 8KW 12KW 20KW 35KW 35/15KW 35/15KW 35/15KW 65/15KW 65/15KW 65/15KW
Electricity 3P 380V(220V, 110V, 415V...) 50(60)HZ; 1P 220V(120V,110V,240V...) 50(60)HZ


Beer Brewing Equipment
Our product includes a variety of large, medium and small brewery equipment, hotel, bar home-brewed beer equipment, teaching experiment etc. And could be used to brew various types of wine, beer, barley-bree (whisky) brandy. We supply brewing of main and auxiliary raw material, technical training, secondary equipment and control equipment, of course, can customize according to customer required special specifications design, production, installation of equipment and other products.

Brew house System
The brew house system could be included two-vessels brew house, three-vessels brew house and four-vessels brew house. Two-vessels brew house includes mash/lauter tun and kettle/whirlpool tank. Three-vessels includes mash tank, lauter tun and kettle/whirlpool tank. Four-vessels includes mash tank, lauter tun, boiling kettle and whirlpool tank. The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency.


Fermentation systems
Fermentation systems consists of Fermentation Tank and Bright Beer Tank.Fermentation Tank structure and design differs depending on fermentation process.the normal Fermentation Tank structure is dish head up and cone down,the tank is equipped with cooling installation,there is a cooling jacket on tank cone section,columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, also help to precipitation and storage the yeast.

Fermenter SUS304 2000L
Interior SUS304 Thickness 3 mm
Exterior SUS304 Thickness 2 mm
Bottom cone 60 degree Yeast outlet
Cooling method Glycol cooling Dimple jacket
Temperature control PT100
Pressure display Pressure gauge
Pressure relief pressure relief valve
Cleaning SUS304 CIP arm with 360 spary cleaning ball
Insulation layer Polyurethane 80mm
Manway SUS304 Side or top manway
Sampling valve SUS304 Aseptic type, no dead coner
Dry hops adding port SUS304 Optional, clamp type
Carbonation device SUS304 Optional
Yeast adding tank SUS304 10L/20L
Bright beer tank SUS304 1500L/2000L, single or dou


Product Features
Our Fermentation tanks/tun available from 100L to 20000L and average 25% Head Space.
All tanks have a Dish top,
Cylinder body & 60/70° Cone Bottom.
Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
We can customize fabricate any tank to meet your brewery's space and height restrictions.

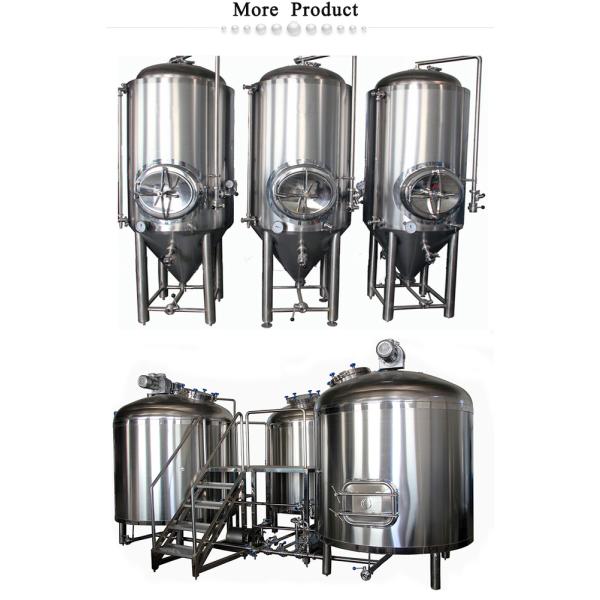

Products Display for small brewery

Mirror Polish 220V Small Scale Beer Brewing Equipment Electric Heating For Hotel

Mirror Polish 220V Small Scale Beer Brewing Equipment Electric Heating For Hotel
