Mirror SUS304 Large Brewing Equipment 2MM PU Insulation With Steam / Electric Heating
Mirror SUS304 Large Brewing Equipment 2MM PU Insulation With Steam / Electric Heating
Mirror SUS304 Large Brewing Equipment 2MM PU Insulation With Steam / Electric Heating
Mirror SUS304 Large Brewing Equipment 2MM PU Insulation With Steam / Electric Heating
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging)
Material :
Stainless Steel 304 / 316
Color :
Mirror Polish /Red Copper
Thickness :
2.00 mm - 3.00 mm
Power :
Customized
Heating Method :
Steam , Electric , Gas Fired
Polyurethane Insulation :
50 mm - 100 mm
Description

2'' Polyurethank Insulation Of Large Brewing Equipment With Mirror SUS304

Main Configuration

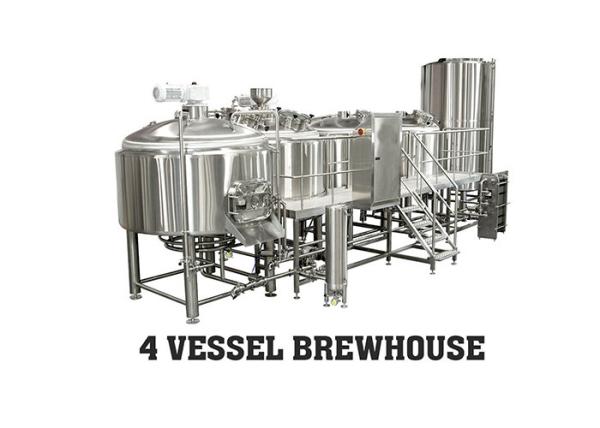

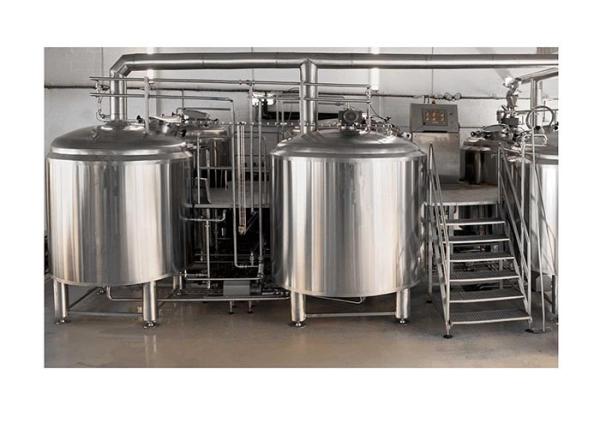

1. Brewhouse Stystem

Mash Tun Sanitary Stainless steel 304, Effective volume: 2000L-7000L;
Surface brushed, welding line polish sanding light belt;
2''Polyurethank insulation, thickness: 50mm - 100mm;
Inner body thickness 3mm, cladding thickness 2mm;
Top domed manhole with sight glass,
Bottom and side steam jacket; Rotary CIP spray balls, temperature sense probe,
motor with frequency conversion, milled false bottom, side grain mandoor;
Stainless steel legs, with screw assembly to adjust leg height,
Complete with associated valves and fittings
Lauter tun Sanitary Stainless steel 304, Effective volume: 2000L-7000L;
Surface brushed, welding line polish sanding light belt;
2''Polyurethank insulation, thickness: 50mm - 100mm;
Inner body thickness 3mm, cladding thickness 2mm;
Top domed manhole with sight glass,
Bottom and side steam jacket; Rotary CIP spray balls, temperature sense probe,
motor with frequency conversion, milled false bottom, side grain mandoor;
Stainless steel legs, with screw assembly to adjust leg height,
Complete with associated valves and fittings
Boil Kettle Sanitary Stainless steel 304, Effective volume: 2000L-7000L;
Surface brushed, welding line polish sanding light belt;
Steam jacket; 1 bar pressure release/vaccum valve placed on the dome
for pressure discharging during
aggressive sanitation process while the tank is hermetically closed
for operation personal safty.
Quick installed termo sensor Pt100 connected to multi segments
programmable controller.
2''Polyurethank insulation, thickness: 50mm - 100mm;
Inner body thickness 3mm, cladding thickness 2mm;
Top glass Man-hole door; With sight light;
With rotary CIP spray balls;
Tangential whirlpool entry;
Stainless steel legs, with screw assembly to adjust leg height;
Complete with associated valves and fittings.
Whirlpool Tank Sanitary Stainless steel 304, Effective volume: 2000L-7000L;
Surface brushed, welding line polish sanding light belt;
Steam jacket; 1 bar pressure release/vaccum valve placed on the dome
for pressure discharging during
aggressive sanitation process while the tank is hermetically closed
for operation personal safty.
Quick installed termo sensor Pt100 connected to multi segments
programmable controller.
2''Polyurethank insulation, thickness: 50mm - 100mm;
Inner body thickness 3mm, cladding thickness 2mm;
Top glass Man-hole door; With sight light;
With rotary CIP spray balls;
Tangential whirlpool entry;
Stainless steel legs, with screw assembly to adjust leg height;
Complete with associated valves and fittings.
Hot water tank Sanitary Stainless steel 304, effective volume: 2000L-7000L;
Surface brushed, welding line polish sanding light belt;
2''Polyurethank insulation, thickness: 50mm - 100mm; inner body thickness 3mm,
cladding thickness 2mm;
Top round shape man-hole door; Steam heating coils;
Stainless steel legs, with screw assembly to adjust leg height;
Outer liquid level pipe;
complete with associated valves and fittings

2. Fermentation System

Fermentation Tank Sanitary Stainless steel 304, conical vertical tank , Effective capacity: 2000L-7000L;
dome top head; Surface brushed, welding line polish sanding light belt;
2''Polyurethank insulation, thickness: 50mm - 100mm; inner body thickness 3mm,
cladding thickness 2mm;
Dimple type glycol cooling jacket, cooling jacket thickness is 1.5mm;
Top breather valve; Side manhole; With rotary CIP spray balls and arm;
temperature sensor on bottom cone side cylinder slightly top position,
Sample valve in the cylinder; separate outlet for yeast and clear beer, ladders,
Mechanical pressure valve; Pressure gauge;
Glycol solenoid valves,
with screw assembly to adjust leg height; Complete with associated valves and fittings.
Glycol Tank Sanitary Stainless steel 304, Effective capacity 4000L-10000L;
Surface brushed, welding line polish sanding light belt;
2''Polyurethank insulation, thickness: 50mm - 100mm;
The thickness of inner body is 2.5mm, cladding is 2mm;
Top round shape man-hole door, thermal well;
Stainless steel legs with bigger and thicker base plate,
with screw assembly to adjust leg height;
Complete with associated valves and fittings.
Chiller
Sterilization Tank Sanitary Stainless steel 304, Effective volume: 100L, Inner polished,
outer sand polished,
complete with associated valves and fittings.
Alkali Liquor Tank Sanitary Stainless steel 304, Effective volume: 100L, Electric heating,
Inner polished,
outer sand polished,
complete with associated valves and fittings.
DCS/ Control Cabinet power control, temperature display centrally, brewhouse manual control,
fermentation tank separate control with digital controller
