Customized Beer Fermentation Equipment / 25BBL Brewing System Four Vessel For Brewing
Customized Beer Fermentation Equipment / 25BBL Brewing System Four Vessel For Brewing
Customized Beer Fermentation Equipment / 25BBL Brewing System Four Vessel For Brewing
Customized Beer Fermentation Equipment / 25BBL Brewing System Four Vessel For Brewing
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging)
Material :
Stainless Steel 304 / 316
Color :
Mirror Polish
Thickness :
2.00 mm - 3.00 mm
Processing :
Fermenting Equipment
Insulation :
50 mm Polyurethane
Power :
15-70Kw or Customized
Description

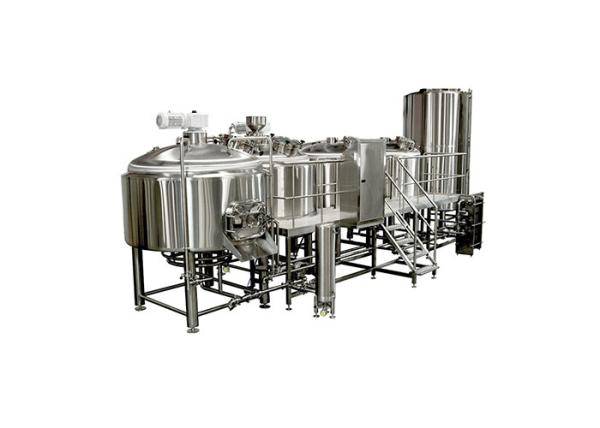

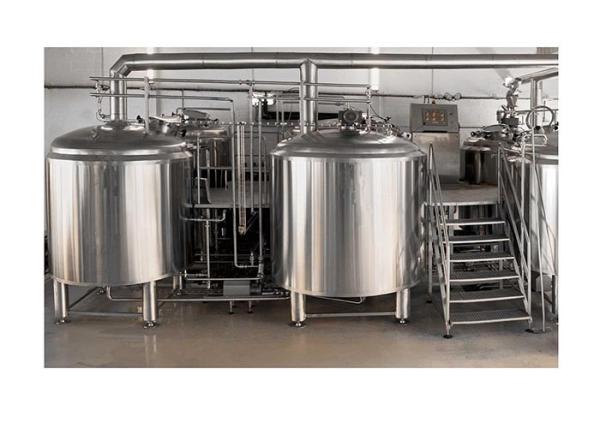

Beer Brewing Equipment 4 Vessel Brewhouse With Mash - Lauter - Bolier - Whirlpool Tank

A set of high-quality beer brewery equipment means a lot to a brewer since it can assist him to exert his ability through to brew tasty beer like a close friend. The main specifications of the BREWHOUSE as follow:

1. Brewhouse system


1). Structure: Customizable ( 2-vessel; 3-vessel; 4-vessel... Here is 4 vessel !)
2). Heating method: Gas, steam, electrical heating method
3). Working platform with the workstation on it
4). The thickness of the inner shell, outer shell and jacket are separately 3.0mm,2.0mm and 1.5mm.
5). Manhole at the top of the brewhouse tanks. (Logo of brewery can be printed on it freely)
6). 38mm piping for transferring fast.
7). Available frequency pump; Siemens motors for the raker and blender
8). Equipping chute for removing the spent grain from the lauter easily

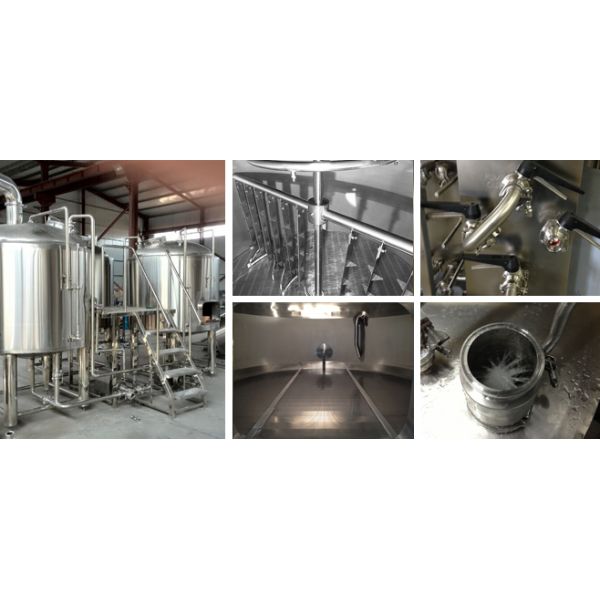

Customized Beer Fermentation Equipment / 25BBL Brewing System Four Vessel For Brewing

2. Components of Brewhouse

Name Size/ Volume/ Quantity Technical Parameter
Mash/ Lauter Double wall stainless steel 1. Material: thickness: 3.0mm;
Gross capacity:1300L 2. External: thickness: 1.5mm;
Useful capacity:1000L Outer :Ø1400mm; 3. Cylinder: thickness: 2.0mm.
Total height: 2600 mm; 4. Inner surface treatment: welds ground to Ra 0.4µm.
Filter board gap≤0.7mm 5. Insulation: Polyurethane-thickness 100 mm.
Agitator with power; 6. Temperature way: Double metal thermometer
- 1pc 7. Outsourcing surface: Weld polishing processing
8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
9. CIP 360 degrees Omni bearing cleaning
Boiling /Whirlpool Double wall stainless steel 1. Material: thickness: 3.0mm;
Gross capacity:1300L 2. External: thickness: 1.5mm;
Useful capacity:1000L Outer :Ø1400 mm; 3. Cylinder: thickness: 2.0mm.
Total height: 2600 mm; 4. Inner surface treatment: welds grinded to Ra 0.4µm.
Mash tank kettle agitator with power 5. Insulation: Polyurethane-thickness 100 mm.
Adding: Blender 6. Temperature way: Double metal thermometer
- 1pc 7. Outsourcing surface: Weld polishing processing
8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
9. CIP 360 degrees Omni bearing cleaning
Hot water tank Double wall stainless steel 1. Material: Inner(SUS304),thickness: 3.0mm;
Gross capacity:1300L 2. External-Jacket(SUS 304 thickness: 3.0mm;
Useful capacity:1000L Outer :Ø1400 mm; 3. Cylinder (sharp type, SUS304), thickness: 3.0mm.
Total height: 2600 mm; 4. Inner surface treatment: welds grinded to Ra 0.6µm.
5. Insulation: Polyurethane-thickness 100 mm.
6. Temperature way: Double metal thermometer
7. Outsourcing surface: Weld polishing processing
8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
9. CIP 360 degrees Omni bearing cleaning

3. Capacity

Brewhouse Series Volume in US Gallon Diameter Height
1HL Brewhouse 26 US Gallon 620mm 1800mm
2HL Brewhouse 53 US Gallon 760mm 2100mm
3HL Brewhouse 79 US Gallon 860mm 2100mm
4HL Brewhouse 106 US Gallon 960mm 2100mm
5HL Brewhouse 132 US Gallon 1060mm 2250mm
6HL Brewhouse 159 US Gallon 1060mm 2500mm
8HL Brewhouse 211 US Gallon 1210mm 2550mm
10HL Brewhouse 264 US Gallon 1360mm 2500mm
12HL Brewhouse 317 US Gallon 1360mm 2550mm
15HL Brewhouse 396 US Gallon 1560mm 2650mm
20HL Brewhouse 528 US Gallon 1760mm 2600mm
25HL Brewhouse 660 US Gallon 1760mm 3100mm
30HL Brewhouse 793 US Gallon 1760mm 3400mm
35HL Brewhouse 925 US Gallon 1860mm 3400mm
50HL Brewhouse 1321 US Gallon 2200mm 3800mm

Customized Beer Fermentation Equipment / 25BBL Brewing System Four Vessel For Brewing
