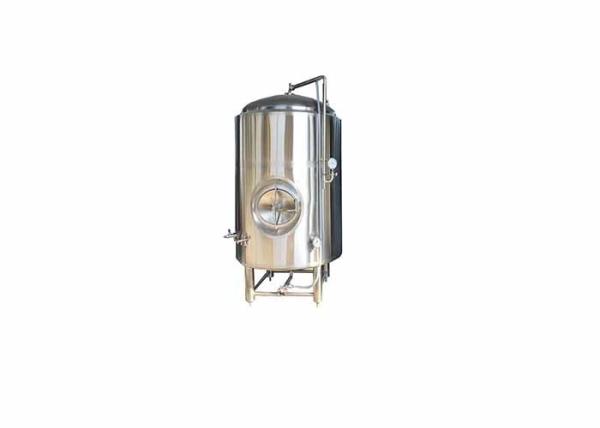

Bright Beer Tank

Jacketed Bright Beer Tanks are available from 1 barrel to 100 or more barrels. The Bright(Brite) tank have the dish cover at top & bottom with the Cylinder Boday. All tanks are food grade stainless steel 304 with a 3 mm thickness for 3BBL-70BBL, while larger tanks have a 4 mm thickness. The cooling system is a dimple jacket with insulated polyurathane fill. All tanks are designed for up to 14.7 PSI and tested at 30 PSI. The inside of the tanks are polished to Ra>.22um and the outside is a brushed / Satin finish. All tanks come standard with 25% head space on top of working volume.

Our Bright beer tanks are beautifully designed for the discriminating brewer and loaded with many standard features. These features provide commercial brewery functionality & consumer good price for all brewers alike. Special orders may be placed along with custom features to your specifications.

Standard Features

Design pressure 45 psi (3bar); working pressure 15psi (1bar)

4 stainless steel legs with leveling footpads

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish bright polish to 0.2~0.4 μm, hygiene surface

All Interior welds ground to a smooth0.2~0.4 μm sanitary finish

Flanged and dished head top and bottom

10% headspace unless a different volume is requested

Combined drain extensions and beer port are standard

Top manway or side manway door

Dual zone in sidewall and bottom dimple cooling jacket with glycol inlet and outlet

Polyurethane insulation thickness 50mm for cooling jacket on side and bottom

Non welding CIP arm and rotating 360 degree reach spray ball

Carbonation system with micron stone

Solenoid valve, pressure relief valve (safe valve) are standard.

Pressure gauge

Temperature sensor well

All clamps and gaskets to attach all accessories

Tank complete with piping, fittings, sanitary valves and all parts.

Technical Parameters
