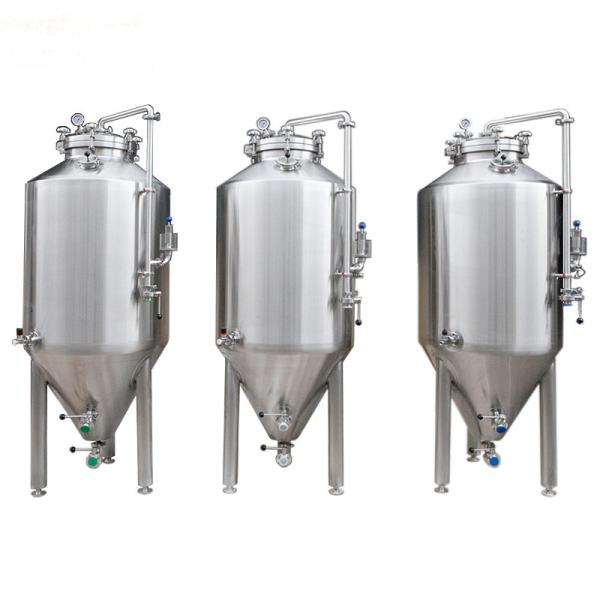

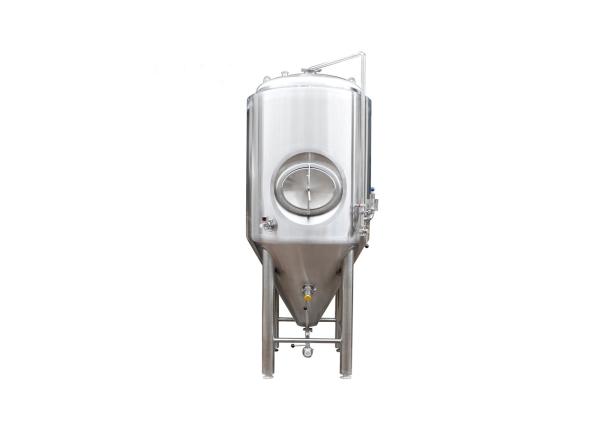

15BBL Customizable Conical Beer Fermenter For Brewery Fermentation Tank

Fermentation tank are made by SUS304 stainless steel , which meet domestic and international food safety and hygiene standards, They are cylindrical cone bottom tank , the cone is 54-72 degree . Their externals are made by 2B stainless steel drawing board , connected by welding . Their internals have a protective film by picking passivation , and equipped with 80mm pulyurethane insulation , .The tanks with dimple plate on cone and side , they are cooled by glycol water or alcohol water . Single tank , single control .
Types: 100L-3000L , 1HL-300HL , 1BBL-300BBL
Other beer fermentation tank : Open FV , Single -wall FV

Control Method:Single tank, single control. Cooled by dimple plate jacket . Top quick-open type pressure manhole; can cast dried hops (Brewing IPA)
Interior Tank: Stainless Steel 304, Thickness 2.5 mm
Exterior Tank:Stainless Steel 304, Thickness 2.0 mm
Heating area 1.4 m2;
Head: Φ700 dished head, Thickness 3mm;
Lower-cone: Stainless Steel 304, Thickness 3mm; cone base 60 degree(optional 54 degree)
Insulation layer thickness: 80mm, Polyurethane insulation;
Welding method: argon protection welding, plate protects weld slinging light band;
Temperature measurement method: intelligent temperature with temperature probe, centralized display control;
Feeding method: feed from bottom, feed yeast from bottom;
Discharge method: the bottom has two pipes, the beer pipe is higher than the sewage pipe;

Accessories : Edible Tube , Inflatable Joint , Refrigerant Pipeline (Glycol) ,Insulation Pipeline

Please Note: mechanical pressure pressure regulating valve(optional water-sealed), with positive and negative pressure breathing valve, with a rotary washer. Cone bottom with removable multi-functional combination interface. With some Leake sampling valve, other valve instruments, accessories supporting.
Fermentation tank achieves to auto-control temperature and pressure
