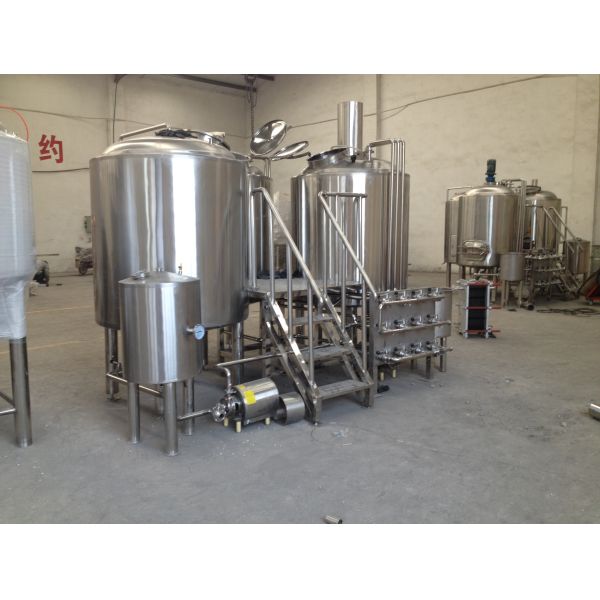

2 Vessel 1000L 2000L Stainless Steel Beer Fermentation Equipment
2 Vessel 1000L 2000L Stainless Steel Beer Fermentation Equipment
2 Vessel 1000L 2000L Stainless Steel Beer Fermentation Equipment
2 Vessel 1000L 2000L Stainless Steel Beer Fermentation Equipment
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P
Supply Ability :
200 sets/year
Delivery Time :
30-60 days
Packaging Details :
Standard export packing for LCL and FCL
Material :
Stainless Steel 304/316L
Interior Shell :
3mm Thickness
Exterior Shell :
2mm Thickness
Construction :
Vertical Cylinder Tank
Polish :
Mirror Polish/Satin/Acid Passivation
Control System :
Manual or PLC Control
Heating :
Electricity,Steam ,Gas Fired
Insulation :
50mm PU Insulation
Description

1000L 2000L Stainless Steel Beer Fermentation Equipment Beer Brewing Brewhouse Turnkey Project For Brewery System

The beer brewhouse or microbrewery has several different styles in order to meet each brewery's or brew master's need, general we can supply below options:

Brewhouse in 2-vessel,3-vessel,4-vessel, made by SUS304 and copper, heated by electric/steam/gas, capacity from

50L-5,000L per batch.

Beer fermenter(FV) and bright tank, customized dimension, with or without hop top and carb stone, double or single wall.

Malt milling system,mill malt and conveyor the powder to mash tun.

Chilling system to cool down the temperature of heat exchanger and beer tanks.

CIP(Clean-in-Position) system to wash all tanks and pipelines.

Bottling system, bottled in cans/kegs/glass bottles.

Controlling system,with Simens PLC smart system to control temperature, agitator and pump.

2 Vessel 1000L 2000L Stainless Steel Beer Fermentation Equipment

2 Vessel 1000L 2000L Stainless Steel Beer Fermentation Equipment

Main Configuration/Details (For example 7BBL )

Main brewing system Components Main specification
Brewhouse unit Mash/lauter/Whirlpool tun 7BBL
25% head space,
Steam heating with insulation
False bottom,
Rake&motor,
Spent grain outlet
Kettle tun 7BBL
30% head space,
Steam heating with insulation
Steam condenser,
Wort outlet and trub outlet
Wort pump 3T/hr, Sanitary
Hot liquor pump 3T/hr, Sanitary
Plate heat exchange Connected with wort aeration device
Disassemble
Work platform Disassemble,
Adjustable
OPTIONAL Wort grant
Hopback
Hopper
Pneumatic valve
Sterile air compressor
Fermentation unit Fermentation tank 7BBL/14BBL
25% head space,
CO2 relief valve
Coolant inlet and outlet
Sample valve
Side manway
Top, Dry Hopping Port
CIP connections
Wort inlet and yeast outlet
Racking arm
Temperature and pressure gauges
Maturation/Storage (OPTIONL) Bright beer tank 7BBL/14BBL
20% head space,
Jacketed and insulated
Dished head&bottom
Pressure valve, relief valve
Site Glass level
Carbonation stone assembly
Sample valve
Side manway
Jacketed and single wall tanks
Glycol cooling system Glycol cooling tank Thermowell
Top manway
CIP arm and spray ball 360 degree of coverage
Thermowell
Cold liquor tank (OPTIONAL) Top manway
CIP arm and spray ball 360 degree of coverage
Visual level sight glass
Cooling jackets
Chiller Second generation
Freon R410A, R404A
Glycol water pump and piping


Controlling unit		 Brewhouse control panel Temperature monitoring& controlling
Pump on/off control
VFD control
Cellar control panel Temperature monitoring& controlling
More controllers reversing for expansion available
Cleaning unit Alkali tank 100L Electric heating
Sterile tank 100L
Pump and piping


Optional items: Beer filter, Keg filling system, Bottle filling system
Steam boiler, Water filter, Kegs, Malt transfer (grain auger)
Customized requirement acceptable

Contact us immediately to get latest specification and price of 2Vessels Brewhouse System !Thank you !
