Stainless Steel Conical Beer Fermenter In Beverage Processing Machinery
Stainless Steel Conical Beer Fermenter In Beverage Processing Machinery
Stainless Steel Conical Beer Fermenter In Beverage Processing Machinery
Stainless Steel Conical Beer Fermenter In Beverage Processing Machinery
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging)
Material :
SUS 304 / 316
Color :
Mirror Polish / Steel
Thickness :
3mm for Interior Shell/2mm for Exterior Shell
Surface treatment :
Polished Mirror
Application :
Beer Brewing
Type :
Beverage Processing Machinery
Description

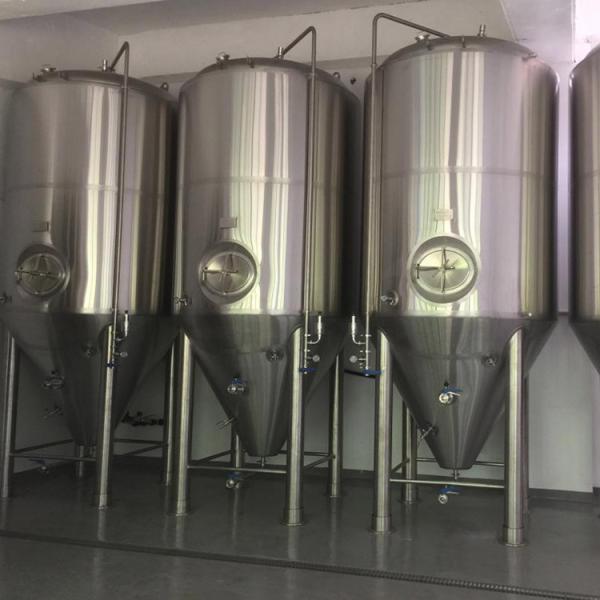

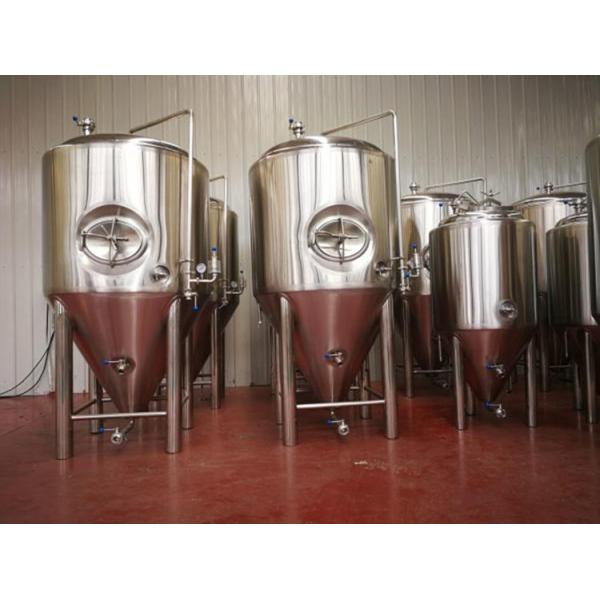

Stainless Steel Conical Beer Fermenter in Beverage Processing Machinery

Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a

Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks,

with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for

Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections,

are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet

your brewery’s space and height restrictions.

NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!

Standard Features:

• Dual zone dimple cooling jackets (3 or more on larger tanks)

• Interior shell: 304 stainless steel, thickness 3mm /11 gauge

• Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge

• Exterior shell: 304 stainless steel, thickness 2mm /14 gauge

• 2” Polyurethane insulation

• Interior surface to finish pickled and passivated

• Exterior surface to brushed, #4 finish

• 580x480mm Side manway, shadowless

• Dry hop inlet at top;

• Accessories:

Sample Valve x1;

Pressure relief/vacuum valve x1;

Temp. sensor / thermometer x1;

Rotating racking arm with butterfly valve x1;

Bottom outlet with butterfly valve x1;

Spraying Ball with down tube x1;

Stainless pipe legs with adjustable footpads x4;

Capacity Cylinder(ODxH) OAH Inner Thickness
7BBL 1000 x 1250mm 2530mm 3mm
10BBL 1150 x 1250mm 2670mm 3mm
15BBL 1250 x 1680mm 3250mm 3mm
20BBL 1400 x 1700mm 3400mm 3mm
30BBL 1650 x 1850mm 3740mm 3mm
40BBL 1750 x 2050mm 4040mm 3mm
50BBL 1750 x 2750mm 4770mm 3mm
60BBL 1150 x 1250mm 2670mm 3mm
80BBL 2100 x 2900mm 5300mm 3mm
100BBL 2200 x 3350mm 5850mm 3mm

Stainless Steel Conical Beer Fermenter In Beverage Processing MachineryStainless Steel Conical Beer Fermenter In Beverage Processing Machinery
