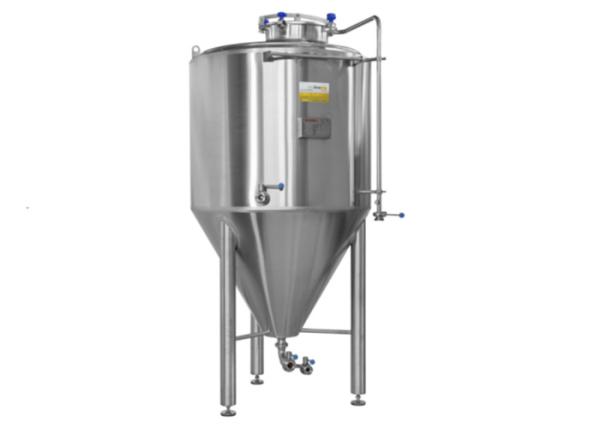

100L Craft Beer Temp Controlled Conical Fermenter Vessel For Pub Resturant
100L Craft Beer Temp Controlled Conical Fermenter Vessel For Pub Resturant
100L Craft Beer Temp Controlled Conical Fermenter Vessel For Pub Resturant
100L Craft Beer Temp Controlled Conical Fermenter Vessel For Pub Resturant
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging)
Material :
Stainless Steel 304 / 316L
Color :
Mirror Polish / Steel
Thickness :
3mm for Interior Shell/2mm for Exterior Shell
Name :
Craft Beer Fermentation Tank
Capacity :
100L
Application :
Pub, Resturant
Description

100L Pub , Resturant Craft Beer Conical Beer Fermenter Vessel

1. Features

Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a

Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks,

with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for

Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections,

are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet

your brewery’s space and height restrictions.

Standard Features:

Sanitary Stainless steel 304,

conical vertical tank,

25% top space to avoid beer foam out;

dome top head, cone bottom;

Surface brushed, welding line polish sanding light belt;

dimple plate cooling jackets( on wall and cone);

With rotary CIP spray balls and arm;

Pt100 temperature sensor; dry hopping port on top head;

Sample valve in the cylinder;

separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank

Relief valve, Pressure regulating valve; Pressure gauge;

Glycol solenoid valves,

Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height

Fermentation system

Brewing System Components Specification
Milling System Miller Double Roller:700rpm, 600rpm
Drive Power: 0.55kw
Output: 50kg/hr
Brewhouse System Mash/Lauter tun Grain mashing, Lautering
Brew Kettle/Whirlpool Tank Wort boiling and whirlpool
Hot Water Tank Hot water supply
Heat exchanger One stage and two stage
Fermentation System Fermentation Tank Top manway/Side manway
Drying hop port to brew IPA
Glycol Dimple jacket
Carbonation port to fill CO2
Yeast Adding Tank(option) SUS304 Stainless Steel
Cooling System Glycol tank Equipped with PU level indicator
Glycol Chiller Glycol water chilling (2HP)
Power supply: 3*220V/60Hz
Cleaning System Cleaning, sanitizing and sterilization of vessels and pipes in the brewery
Control System Control Cabinet Manual/Semi-automatic/Automatic
All components & parameters can be customized according your requests.

Fermenter
SUS304
100L/200L
Interior
SUS304
Thickness 2.5mm
Exterior
SUS304
Thickness 1.5mm
Bottom cone
60 degree
Yeast outlet
Cooling method
Glycol cooling
Dimple jacket
Temperature control
PT100
Pressure display
Pressure gauge
Pressure relie
pressure relief valve
Cleaning
SUS304
CIP arm with 360 spary cleaning ball
Insulation layer
Polyurethane
70~80mm
Manway
SUS304
Clamp or flange manway
Sampling valve
SUS 304
Aseptic type, no dead coner
Dry hops adding port
SUS304
Optional, clamp type
Carbonation device
SUS304
Optional
Yeast adding tank
SUS304
1L/2L
Bright beer tank
SUS304
100L/200L, single or double walled available
