Restaurant Small Brewery Equipment , Mirror Polish Craft Beer Brewing Machine
Restaurant Small Brewery Equipment , Mirror Polish Craft Beer Brewing Machine
Restaurant Small Brewery Equipment , Mirror Polish Craft Beer Brewing Machine
Restaurant Small Brewery Equipment , Mirror Polish Craft Beer Brewing Machine
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging)
Material :
Stainless Steel 304/316
Color :
Mirror Polish / Steel
Thickness :
2.00 mm - 3.00 mm
Application :
Taproom
Name :
Beer Making Equipment
Capacity :
Customized
Description

Restaurant Beer Brewing Equipment Craft Beer Brewing Machine Small Brewery Equipment

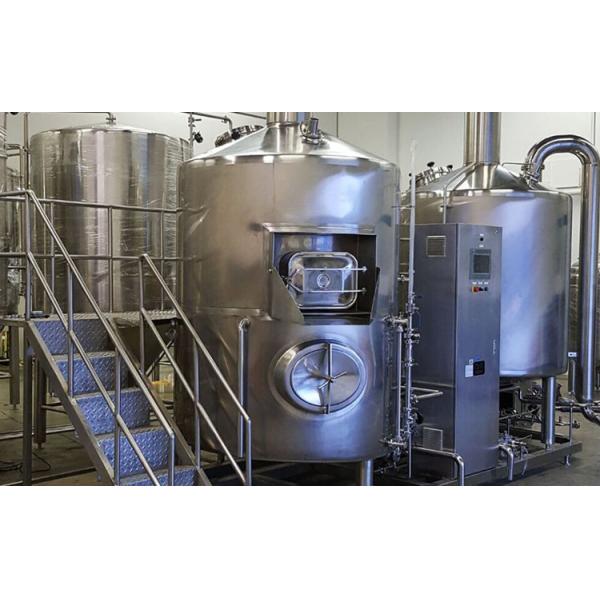

Brewhouse system

The brewhouse system is composed of mash tun/ lauter tank, kettle,/whirlpool, , hot water tank

plate heat exchanger with oxygenation device, wort pump etc.

The water and wort step heating is controlled by Digital Display program and completed automatically.

Items Technical Parameters
Working capacity 400L per batch
Brewhouse type MLT+KWT, M+L+KWT, M+L+K+W, Customized.
Raw Material Food grade stainless steel or red copper cladding.
Heating way Electric heating, Steam heating, Direct fire.
Insulation Rock wool / 80-100mm
Tank wall Outer wall 2mm / inner wall 3mm
Plate gap Milling sieve plate ≤0.6mm; Material is SUS 304. (false bottom)
Polishing Polishing precision up to mirror polish; better than Ra0.4µm
Platform Food grade Stainless steel 201

Mash and fermentation systems
1.Mash/lauter tank a.Used for the malt mashing and wort filtrating
b.Material adopt stainless steel 304,double wall SS304
c.Welding and polishing processing on surface, welds grinded to Ra 0.2um
d.Inner equip with 360 degree omni bearing cleaning ball
e.Insulation:polyurethane -thickness 50mm
f.On the surface of the tank equips with manhole,temperature gaugeetc
2.Boiling/whirlpool tank a.Used for the wort boiling(Adding the hops) and whirlpool
b.Material adopt stainless steel 304,double wall SS304
c. Welding and polishing processing on surface, welds grinded to Ra 0.2um
d.Inner equip with 360 degree omni bearing cleaning ball
e.Insulation:polyurethane -thickness 50mm
f.On the surface of the tank equips with manhole,temperature gauge etc
3.Hot water tank(Chosed by yourself) a.Used for heating the water to supply the mash/lauter tank
b. Material adopt stainless steel 304,double wall SS304
c. Welding and polishing processing on surface welds grinded to Ra 0.2um
d.Inner equip with 360 degree omni bearing cleaning ball
e.Insulation:polyurethane -thickness 50mm
f.On the surface of the tank equips with manhole,temperature gauge etc

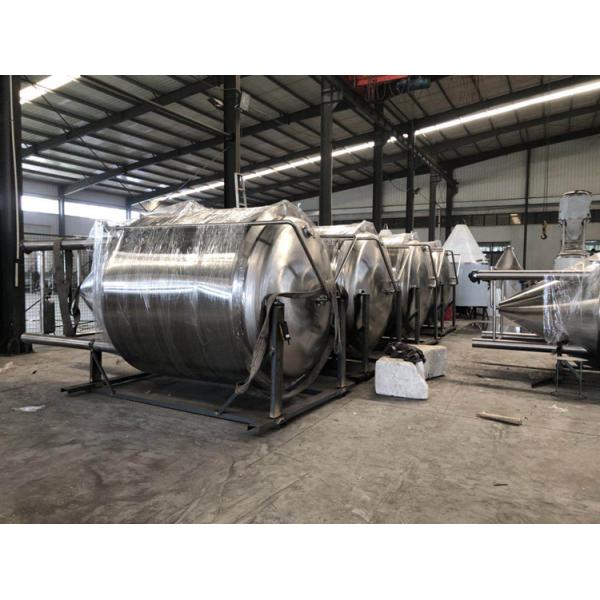

1.Fermentation tank a.Used for the main fermentation of the beer
b.Double wall stainless steel 304,mirror finishing
c. Insulation: Polyurethane-thickness 50 mm.
d.Equipment with:Cone 60 or 72 ,resist compression design,dripping temperature drop
e. Surface: Finish 2B - cold-rolled, annealed, pickled
f. Vessel Pressure: 1.5 bar / 3.0 bar
2.Bright beer tank a.Used for the after fermentation of beer,improve the mature of beer and keep in storage
b. Double wall stainless steel 304,mirror finishing
c. Insulation: Polyurethane-thickness 50 mm.
d.Equipment with:Cone 150 ,resist compression design,dripping temperature drop
e. Surface: Finish 2B - cold-rolled, annealed, pickled
f. Vessel Pressure: 1.5 bar / 3.0 bar
