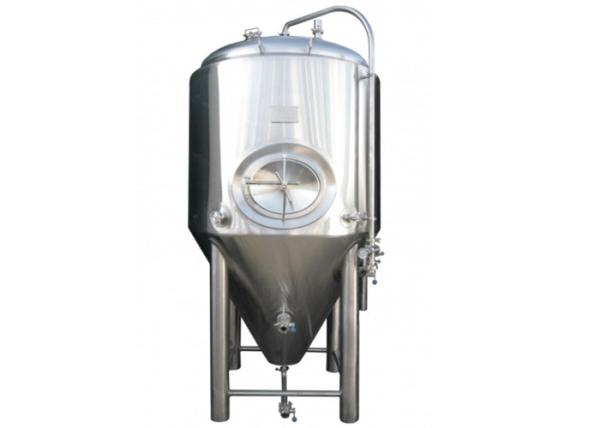

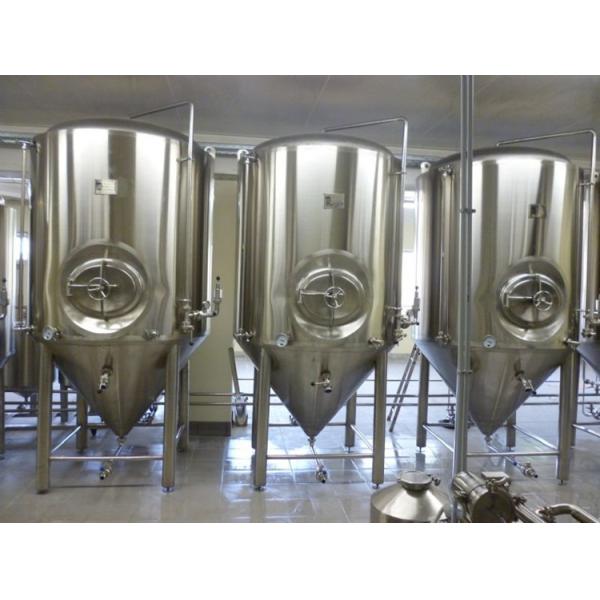

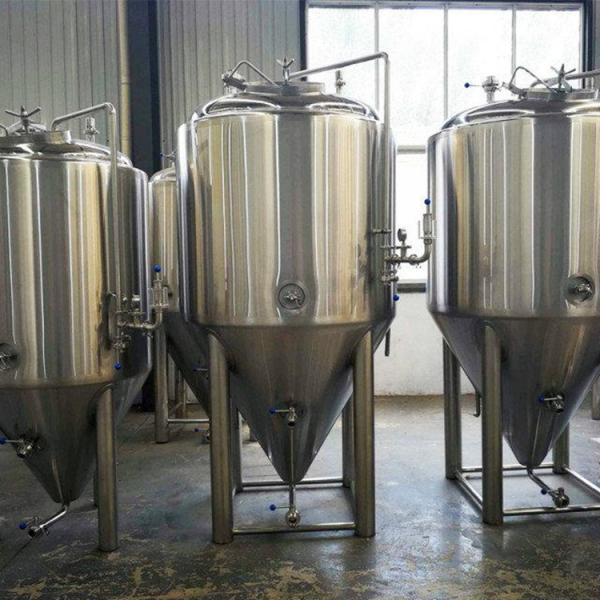

Stainless Steel Cooling Jacket Conical Beer Fermenter , Beer Fermentation Tank
Stainless Steel Cooling Jacket Conical Beer Fermenter , Beer Fermentation Tank
Stainless Steel Cooling Jacket Conical Beer Fermenter , Beer Fermentation Tank
Stainless Steel Cooling Jacket Conical Beer Fermenter , Beer Fermentation Tank
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging)
Material :
Stainless Steel 304 / 316L
Color :
Mirror Polish / Steel
Thickness :
2.00 mm - 3.00 mm
Type :
Cooling Jacket
Name :
Fermentation Tank
Capacity :
Customized
Description

Stainless Steel Cooling Jacket Conical Fermenter Beer Fermentation Tank​

1000l stainless steel cooling jacket beer fermentation tank


Typical equipment of our fermenter:
Overpressure setting mechanism from 0 to 3 bar (over-pressure tanks with the maturation bottling function)
Cooling channels - duplicators for circulating of coolant
PU insulation - thickness corresponding to the size of the tank and the environment
Stainless steel jacket - with the customer selected surface finishing
Guaranteed inner surface roughness of Ra = 0.8 microns (SQ) or Ra < 0.8 microns (HQ) - except in very small containers and terminating welds on intermediate vessels
Manhole on the top cone or on cylinder part (according to customer requirements)
Outlet / inlet for beer or cider
Outlet / inlet for dosing and discharge of yeast
Sanitation shower - sprayball (static or rotary) - one or more pcs
Cleanable and sanitizable sampling cock
Double-acting air vent valve
Independent safety overpressure valve
Thermometer pocket

Tank Material Sanitary stainless steel 304
Tank thickness inner tank-3-4mm, jacket-1.5-2mm,cladding-1.5-2mm
Agitator: Raking system conneted into a top reducer
Bottom head type Saccharifing Units--- Flat bottom or 120º~185º cone
Fermention tank---- Conical degree 60-75°c
Jacket type Dimple jacket on the cylinder and cone parts
External surface Stainless steel 2B board/Mirro polish/Matt wiredrawing processing,
Thickness=2mm,if need,could choose copper for outside

Stainless Steel Cooling Jacket Conical Beer Fermenter , Beer Fermentation TankStainless Steel Cooling Jacket Conical Beer Fermenter , Beer Fermentation Tank
