100 US Gallon Small Brewery Equipment Beer Making Machine And Brewing Machines
100 US Gallon Small Brewery Equipment Beer Making Machine And Brewing Machines
100 US Gallon Small Brewery Equipment Beer Making Machine And Brewing Machines
100 US Gallon Small Brewery Equipment Beer Making Machine And Brewing Machines
Specifications
Brand Name :
YDL
Model Number :
YDL
Certification :
Ce ISO TUV
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Month
Delivery Time :
Within 30 - 60 Days
Packaging Details :
With plastic foam firstly and then outside by wooden cases(standard export packaging)
Material :
Stainless Steel 304 / 316L
Color :
Mirror Polish / Steel
Thickness :
2.00 mm - 3.00 mm
Name :
Beer Making Machine
Capacity :
100 US Gallon
Description


100 US Gallon Small Brewery Equipment Beer Making Machine and Brewing Machines

Features :
1) Automatic /semi-automatic operation system ,need one or two brewer operate
2) With our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes
3) We have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate
4) Installation/Operation/ Service/ Maintenance Manual: Provided In English.

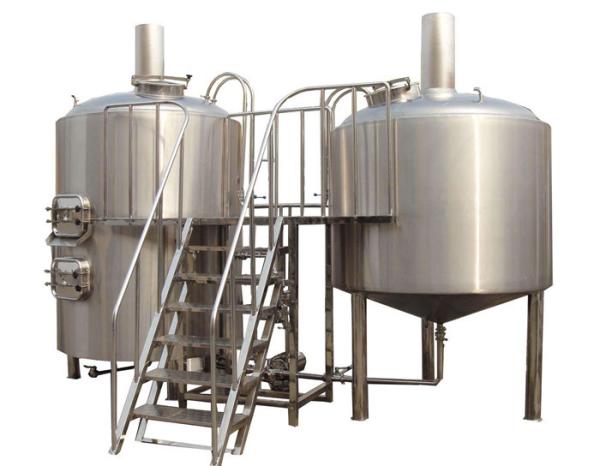

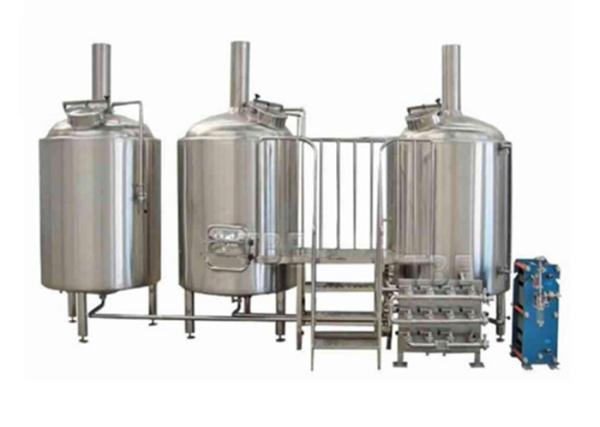

Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or Red copper material are popular
Two stages plate heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size or double size as brewhouse is common used in microbrewery
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included


Equipment components:

No.
Name
Specification
1.Malt Mill
Roller Mill
1.Function:Smash malt
2.Motor Power: 3KW
3.Output: 300KG/h
2.Brewhouse
Mash/lauter tun
1.Function: Mash and lauter
2.Effective capacity:500L
3.Material: SUS304
Boiling/Whirlpool tank
1.Function: Boiling and whirlpool
2.Effective capacity:500L
3.Material: SUS304
Hot water tank
1.Function: Water heating
2.Effective capacity:500L
PHE
1.Function:cooling wort
2.Two-stages cooling(ice water and tap water)
Yeast adding device
1.Function:Add yeast when transfer the beer to fermenter
2.Capacity:10L
3. Sanitary SUS304 all welded
3.Fermentation
Fermenter
1.Function: Wort fermentation or beer ripening
2.Effective capacity:1000L
3.Material: SUS304
4.Cooling System
Ice water tank
Providing the ice water for cooling down the wort and beer
Refrigerator
Cooling down the ice water in the ice water tank
Ice water pump
Ice water circulation
5.Control box
Instrument panel or PLC
Control the whole brewing process
