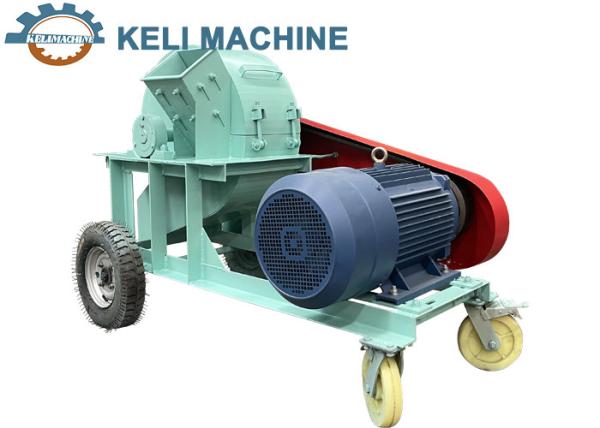

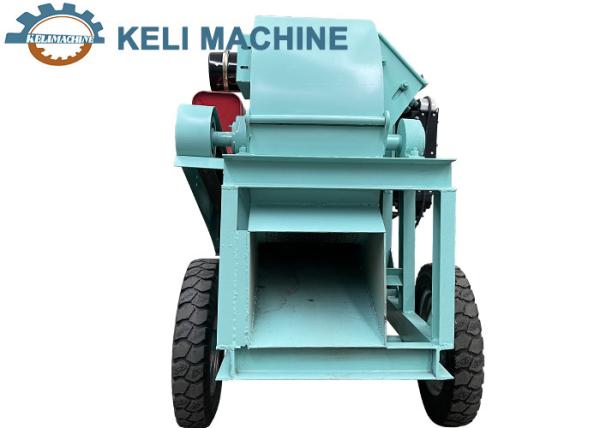

Mill Crusher KL-900 Square Mouth Crusher 50hp Diesel Horsepower
Mill Crusher KL-900 Square Mouth Crusher 50hp Diesel Horsepower
Mill Crusher KL-900 Square Mouth Crusher 50hp Diesel Horsepower
Mill Crusher KL-900 Square Mouth Crusher 50hp Diesel Horsepower
Specifications
Brand Name :
KELI
Model Number :
KL-900
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15-35days
Packaging Details :
Container
Type :
KL-900 Square Mouth Crusher
Machine weight :
650kg
Spindle speed :
2000r/min
Material port diameter :
Φ350*350mm
Diesel horsepower :
50hp
Number of blades :
8
Brand :
Keli
Application :
Brick Making
Voltage :
220v 380v 415v
customization :
OEM ODM
Description

Mill Crusher KL-900 Square Mouth Crusher 50hp Diesel Horsepower

Model KL-420 KL-500 KL-600 KL-700 KL-900 KL-1000
Spindle speed(r/min) 2800 2800 2700 2100 2000 2000
Number of blades (alloy) 4 4 4 6 8 8
Processing efficiency(kg) 1200 1500 2000 2500 3000 4000
Material port diameter(mm) Φ150*150 Φ200*200 Φ250*250 Φ300*300 Φ350*350 Φ400*400
Power(kw) 11 18.5 30 37 55 75+7.5
Diesel horsepower(hp) 15 25 32 45 50 55
Machine weight(kg) 130 210 320 450 650 800
This equipment is mainly suitable for crushing medium to low hardness materials, which can crush block like grass, dry weeds, sweet potato seedlings, peanut seedlings, rice straw, dry grain straw, etc. into coarse feed; It can also crush granular refined feed such as corn, sorghum, beans, and cakes; It is also an effective, ideal, and economical equipment that can be applied to small and medium-sized pig farms, pig farmers, and sideline processing households in rural areas.

Square mouth crusher
  • Alloy moving knife: Alloy knife is used, which is tough, wear-resistant, sharp cutting, not easy to rust, corrosion-resistant, long service life, and improves the efficiency of the pulverizer.
  • Carbon-structured steel hammer: made of carbon-structured steel, it can crush wood chips multiple times to improve the crushing rate. The hammer can be used on both sides, and the hammer can be replaced by itself, but only in the same position.
  • Thickened cutterhead: It is composed of thickened steel plates, which changes the original fragile characteristics and increases the service life of the machine. The entire cutterhead operates smoothly and plays the role of secondary crushing.
  • High-precision bearings: The main part is handled by dynamic balancing equipment, and the weight error in each direction of the machine is very small, which ensures the smooth operation of the machine, improves production efficiency, prolongs the service life, low cost, and high output.

Features
  • Traction-type movement, no fear of various terrains, strong adaptability
  • Airflow impact, strong power, complete crushing
  • Real materials, stable and durable, beautiful appearance
  • Reasonable structure, simple operation, upper and lower discharge

Scope of application
  • Widely used in various occasions, strong adaptability. Mainly used for cattle and sheep feed, edible fungus base material, also used as fertilizer, mechanism charcoal, Buddhist incense factory, timber factory, mushroom cultivation.
