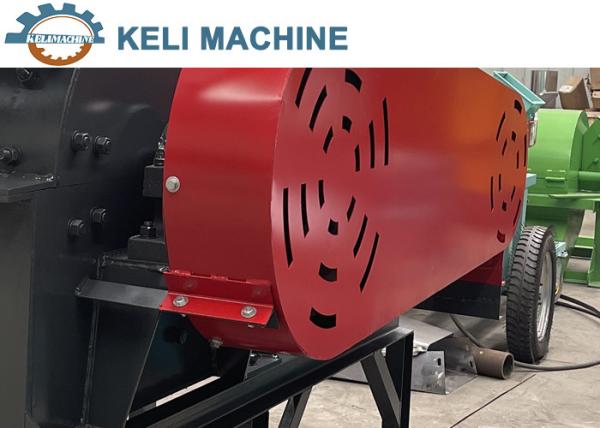

KELI Mill Crusher Hammer Crusher With 8mm Discharge Particle Size
KELI Mill Crusher Hammer Crusher With 8mm Discharge Particle Size
KELI Mill Crusher Hammer Crusher With 8mm Discharge Particle Size
KELI Mill Crusher Hammer Crusher With 8mm Discharge Particle Size
Specifications
Brand Name :
KELI
Model Number :
PC300x200
Place of Origin :
China
Certification :
ISO9001
MOQ :
1set
Price :
Negotiable
Packaging Details :
Container
Delivery Time :
15-35days
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Capacity :
1-5 Ton/Hour
Type :
Mill Crusher Hammer Crusher
Feed particle size :
100mm
Dimensions :
630*380*630mm
Machine weight :
200kg
Number of motor poles :
4
Brand :
Keli
Application :
Brick Making
Voltage :
220v 380v 415v
customization :
OEM ODM
Description

Product Description:

The hammer crusher is composed of a hammer crushing case body, a rotor, a hammer head, a counter lining plate, a sieve plate and the like. It mainly consists of an upper casing, a lower casing, a transmission member, and a sieve plate member. The main component of the machine is the rotor with a hammer (also known as hammerhead).

The rotor is consisted of a main shaft, a disc, a pin, and a hammer. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feed port, and is crushed by the impact, shearing, and grinding action of the high-speed moving hammer. In the lower part of the rotor, there is no sieve plate, so the material smaller than the mesh size is discharged through the sieve plate. The materials bigger than the mesh size are retained on the sieve plate and continue to be struck and grounded, and segregated through the sieve plate.

Applications:

This machine is mainly suitable for medium-scale crushing, which entails crushing of coarse materials such as coal, limestone, slag, and other related medium-hard ores and rocks found in construction, electric power, chemical industry, metallurgy, geological, and various other industries and industrial units.

It is able to effectively break down such materials, allowing for them to be further worked on to create even more complex substances.

Product Parameters:

Model PC300x200 PC400x300 PC600x400 PC800x600 PC1000x800 PC1000x1000

Feed particle size

(mm)

 100 200 250 250 350 350

Discharge particle size

(mm)

 8 25 30 35 35 35

Productivity

(t/h)

 1-5 5-10 10-22 18-40 25-50 30-55
Number of motor poles 4 4 4 4 4 6

Power

(kw)

 5.5 11 11-22 30-55 75 90

Dimensions

(mm)

630*380

*630

900*670

*860

1200*1050

*1200

1310*1180

*1310

1600*1390

*1575

1800*1590

*1775

Machine weight

(kg)

 200 800 1500 3200 4300 8000
