Hammer Type Herbal Moringa Leaf 50kg / H Powder Grinding Machine
Hammer Type Herbal Moringa Leaf 50kg / H Powder Grinding Machine
Hammer Type Herbal Moringa Leaf 50kg / H Powder Grinding Machine
Hammer Type Herbal Moringa Leaf 50kg / H Powder Grinding Machine
Specifications
Brand Name :
Brightsail
Model Number :
BS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-30 days
Packaging Details :
Wooden case
Product name :
50kg/h hammer type herbal moringa leaf powder grinding machine
Application :
food,chemical,pharmaceutical,etc
Warranty :
One year
Capacity :
3-300 kg/h
Fineness :
10-120 mesh
Feed size :
<10 mm
Material :
SS 304/316
Voltage :
220-480 v
Description

50kg/h hammer type herbal moringa leaf powder grinding machine

Our BS high speed hammer mill is widely used in powder industries such as pharmaceutical, chemical, and food factories. It is suitable for small batch production or laboratory sample testing. The whole machine is made of high-quality 304 stainless steel. By changing the stainless steel screen in the mill chamber, you will get different particle size.

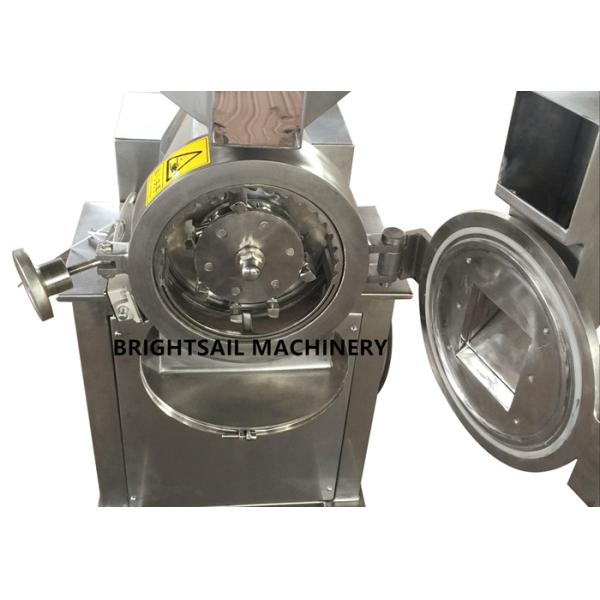

Crusher part:

Hammer Type Herbal Moringa Leaf 50kg / H Powder Grinding Machine

Work method:

The crushed materials can be directly discharged from the mill chamber.There is one moveable cutter head on the principal axis. And one fixed gear ring is installed in the grinding chamber. Under the gear ring, there is the screen. When the principal axis works on high speed, the moveable cutter head runs together. The materials are impacted, cutted by the fixed gear ring and moveable hammers. And materials also collide with each other. Under the combined effects, they are crushed into powder.

Main features:

1. Powder fineness is adjustable.

2. Different capacities for your choices.

3. Its dimension is small, no needs big space.

Technical data:

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430
