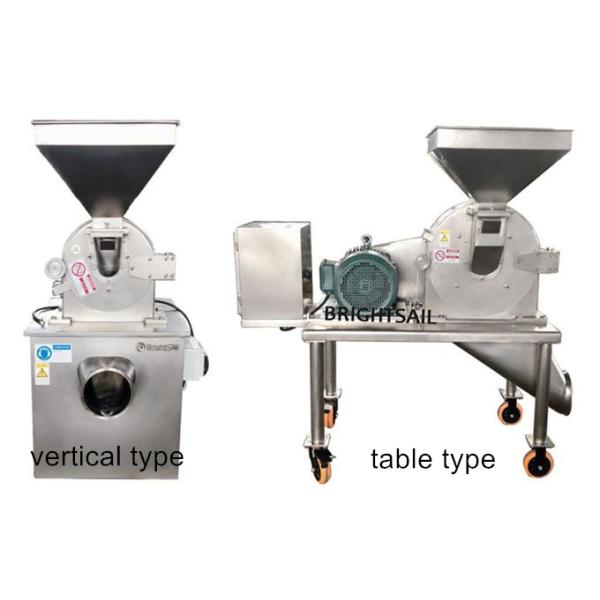

Crystal White Brown Icing 800 Kg / H Sugar Grinding Mill
Crystal White Brown Icing 800 Kg / H Sugar Grinding Mill
Crystal White Brown Icing 800 Kg / H Sugar Grinding Mill
Crystal White Brown Icing 800 Kg / H Sugar Grinding Mill
Specifications
Brand Name :
Brightsail
Model Number :
BSU
Certification :
CE ISO
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case or container
Product name :
Crystal sugar powder milling machine white brown icing sugar grinding mill
Material :
SS304/316
Feed size :
<10mm
Output size :
10-120 mesh
Capacity :
20-800 kg/h
Voltage :
220-480 v
Description

Crystal sugar powder milling machine white brown icing sugar grinding mill

BSU universal crusher is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc. It can be customized with stainless steel 304, 316 and other steel materials. And its knife of crusher part can be selected according to different materials and fineness. If you need no dust when grinding, it also can be equipped with a simple dust collecting box.

Crystal White Brown Icing 800 Kg / H Sugar Grinding Mill

Principle:

The machine uses the high speed rotating cutters and the fixed cutters to crush and shear raw materials, which is accompanied by strong airflow inside of the mill chamber to bring out the finished products through the screen. The size of granules can be achieved by changing of the screen. Its fineness can be adjusted from 10-120 mesh.

Technical data:

Model BSU-20 BSU-30 BSU-40 BSU-60
Capacity(kg/h) 20-150 30-300 50-400 100-800
Size of input granules(mm) <6 <10 <10 <10
Size of output granules(mesh) 20-120 20-120 20-120 20-120
Power(kw) 4 7.5 11 22
Speed of principal axis(rpm) 4650 3800 3400 2800
Overall size(L*W*H)(mm) 650*820*1500 700*900*1650 750*1000*1750 950*1250*2150
Weight(kg) 230 330 430

900


Main features:

1. Simple and convenient operation.
2. Clean and maintenance are very easy.
3. No needs big space.
4. Power consumption is small.

Applications:

Crystal White Brown Icing 800 Kg / H Sugar Grinding Mill
