Dried Date Seeds Powder Grinding Machine , Flour Hammer Mill Animal Food Wheat
Dried Date Seeds Powder Grinding Machine , Flour Hammer Mill Animal Food Wheat
Dried Date Seeds Powder Grinding Machine , Flour Hammer Mill Animal Food Wheat
Dried Date Seeds Powder Grinding Machine , Flour Hammer Mill Animal Food Wheat
Specifications
Brand Name :
Brightsail
Model Number :
BS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case
Product name :
Small high speed powder making grinder hammer mill grinding pulverizer flour milling machine
Warranty :
One year
Application :
food,chemical,pharmaceutical,etc
Capacity :
3-300 kg/h
Fineness :
10-120 mesh
Feed size :
<10 mm
Material :
SS 304/316
Voltage :
Customized
Description

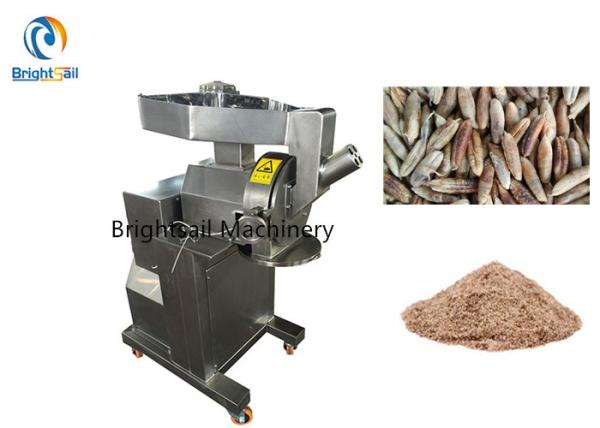

Dried date seeds powder grinder machine animal food wheat flour hammer mill

Our BS high speed hammer mill is used to crush raw material into powder which is applied widely in pharmaceutical, chemical and food industries, etc. It features compact structure, stable quality and high efficiency. There is a screen in the mill chamber, customers can choose the sieve size according to the output fineness of product the need.

Working method:

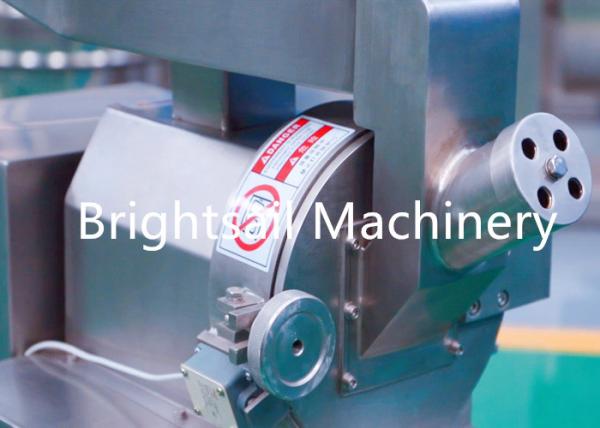

The machine consists of three parts: frame, crushing chamber and feeding parts. A movable cutter head is installed on the main shaft, a fixed gear ring is installed in the grinding room, and a screen is installed under the gear ring. When the main shaft is running at high speed, the movable cutter head is running, and the materials are crushed under the comprehensive effects of mutual impact, friction, shearing and impact and collision between the fixed gear ring and the movable hammer. The crushed materials can be directly discharged from the grinding chamber of the main engine, and the particle size can be obtained by changing the screens with different apertures. The machine is simple in structure, durable, stable in operation, obvious in crushing effect and convenient in maintenance.

Main features:

1. Simple in structure, few occupied space
2. Easy to clean, easy to operate
3. Pulleys are installed at the bottom of the machine, easy to move
4. Changing powder size by changing difference size of sieve mesh

Our company:

Brightsail Machinery is an innovative enterprise integrated with technology research, manufacture and trade. Our enterprise is professional in grinding machine and mixing machine which are widely used in food,chemical,pharmaceutical...etc. We are also specialized in the design and manufacture of other related supporting products.Our products are grinding machines, mixing machines, drying machines, vibrating sifting machines, conveying machines, packaging machines, etc.After years' development, our company has become one of the most popular suppliers in our industry. We have sold our machines to more than 50 countries at present and won many good comments from our customers.

Technical data:

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430
