SS304 Air Classifier Mill Herbal Powder Machine 2500 Mesh Fineness
SS304 Air Classifier Mill Herbal Powder Machine 2500 Mesh Fineness
SS304 Air Classifier Mill Herbal Powder Machine 2500 Mesh Fineness
SS304 Air Classifier Mill Herbal Powder Machine 2500 Mesh Fineness
SS304 Air Classifier Mill Herbal Powder Machine 2500 Mesh Fineness
SS304 Air Classifier Mill Herbal Powder Machine 2500 Mesh Fineness
Specifications
Brand Name :
Brightsail
Model Number :
BSP
Certification :
CE ISO
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30-35 days
Packaging Details :
Container
Product name :
Herb powder making machine
Application :
herb,rice,leaf
Material :
SS304/316
Capacity :
20-1800kg/h
Speed of principle axia(rpm) :
-3100~-6500
Fineness :
600-2500 mesh
Voltage :
customized
Other Name :
aair classifier mill
Description

Air Classifier Mill 2500 Mesh Powder Fineness Customize Herb Grinder

It is suitable for grinding herbs, roots, leaves and low-oil spices and other materials, such as rice, herbs, seaweed, etc. Fineness up to 2500 mesh

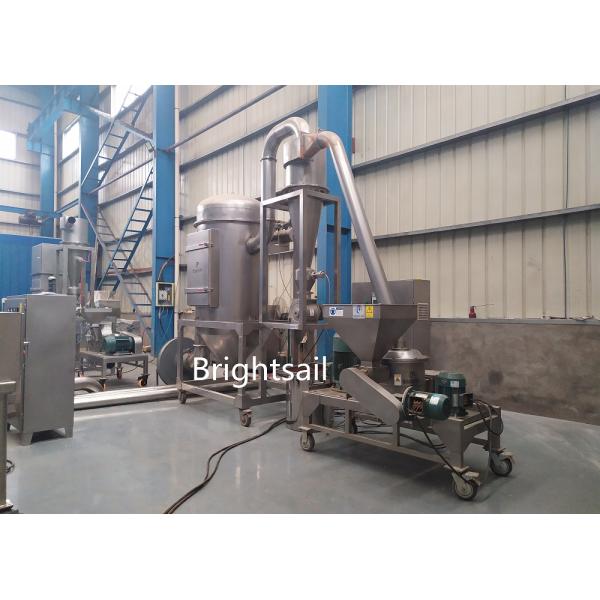

BSP powder machine is composed of crusher, cyclone separator, dust collector, fan, electrical control box and other components.
It has the ability of screening, screening, uniform particle size, and continuous processing.
It is suitable for industries such as medicine and chemical industry, industrial raw material crushing, food industry and so on.

Technical data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100

Working Method:

The raw material is fed into the grinding cavity by the screw feeder through the hopper, and after being cut and sheared by the high-speed cutting machine, it is fed into the cyclone separator and the bag filter by the negative pressure suction method, and the discharge meets the product requirements. This is why it can be made into superfine powder and can be used as a fine powder machine (fine powder machine).

Advantages:

1. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.

2. Adjust the speed or air volume of the classifier without shutdown to obtain the products with uniform particle size distribution.

3. The upper cover of the main engine is opened by pneumatic spring, and the structure of the engine body can be opened to both sides, so that there will be no obstacles when cleaning and repairing internal parts.

4. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of wear parts.

5. The bearing system adopts high-speed precision bearings imported from abroad, with stable operation, low vibration and noise.

6. It adopts a rapid pipe removal structure, which is convenient and fast for pipe removal and cleaning.
