3 To 300kg/H Customized Ce Medicine Grinder Radix Liquiritiae Milling Machine
3 To 300kg/H Customized Ce Medicine Grinder Radix Liquiritiae Milling Machine
3 To 300kg/H Customized Ce Medicine Grinder Radix Liquiritiae Milling Machine
3 To 300kg/H Customized Ce Medicine Grinder Radix Liquiritiae Milling Machine
3 To 300kg/H Customized Ce Medicine Grinder Radix Liquiritiae Milling Machine
3 To 300kg/H Customized Ce Medicine Grinder Radix Liquiritiae Milling Machine
Specifications
Brand Name :
Brightsail
Model Number :
BS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case
Product name :
Radix Liquiritiae Milling Machine
After-sales service :
provided
Application :
food,chemical,pharmaceutical,etc
Capacity :
3-300 kg/h
Fineness :
10-120 mesh
Motor :
2.2-11
Material :
SS 304/316
Weight(kg) :
112-430
Description

3 To 300kg Per Hr Capacity Customized Medicine Grinder Radix Liquiritiae Milling Machine

This type of BS high-speed hammer crusher is suitable for pharmaceutical, chemical, food and other industries. It is a good powder processing equipment. It is not limited by material hardness, softness and fiber viscosity, and can have good crushing effect on any material.

Technical data:

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430

Working method:

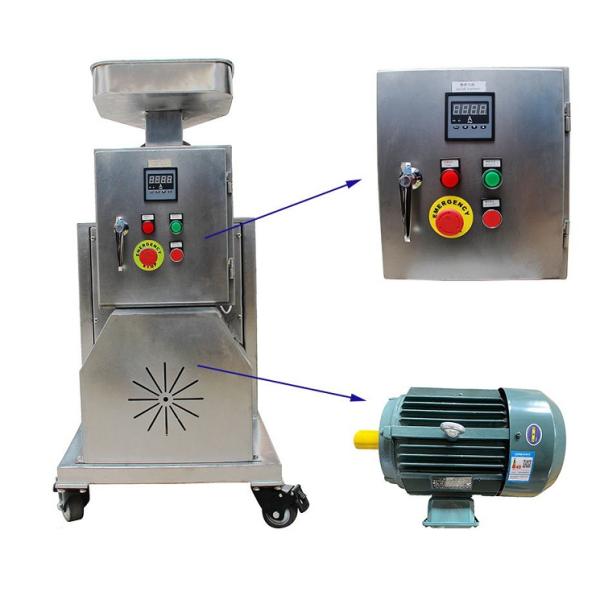

The machine is composed of frame, crushing chamber and feeding department. A movable cutter head is installed on the main shaft, a fixed ring gear is installed in the crushing cavity, and a screen is installed below the ring gear. When the spindle runs at high speed, the movable cutter head runs, and the materials are impacted and rubbed by the fixed ring teeth and the movable hammer. Under the combined action of shear, shear and impact between the materials, crushing is realized. The machine has the advantages of simple structure, firmness and durability, stable operation, obvious crushing effect and convenient maintenance. The crushed materials can be discharged directly from the crushing chamber of the host machine, and the particle size can be obtained by changing the screens with different pore sizes.
(the speed can also be adjusted to obtain the fineness of the finished product).

Main features:

1. Wide application range and large processing capacity.
2. Simple and compact structure; Smooth operation.
3. The material grinding process is fast and reliable, and the grinding degree is adjustable.
4. The surface of the multifunctional grinder is smooth and easy to clean.
How Can I Buy This Machine?
First of all, discuss all machines details and price with our sales person.
Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.
Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.
At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.

3 To 300kg/H Customized Ce Medicine Grinder Radix Liquiritiae Milling Machine

Please contact us if you have interests in our products.
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
