10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill
10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill
10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill
10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill
10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill
10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill
Specifications
Brand Name :
Brightsail
Model Number :
BS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case
Product name :
Cassia Bark Pulverizer Mill
Finished product :
cassia powder
Application :
foodstuff industry,chemical,medical
Capacity :
3-300 kg/h
Fineness :
10-120 mesh
Feed size :
<10 mm
Material :
stainless steel 304/316
After-sales services :
one year warranty; video support
Description

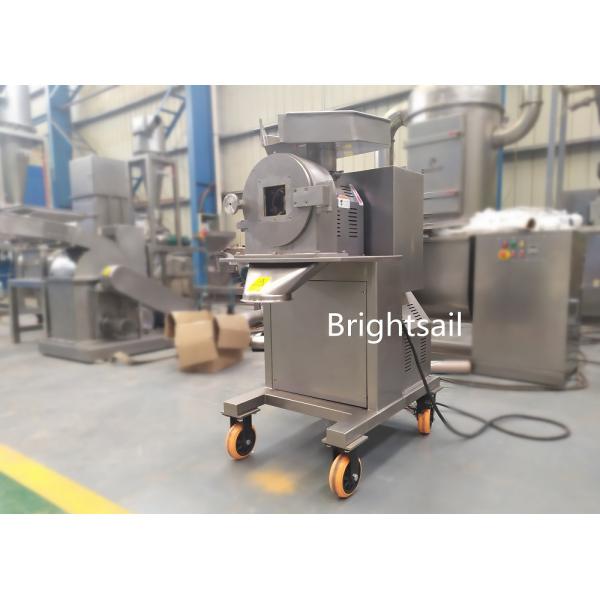

10 To 120 Mesh Multi-Funcion Spice Grinder Cassia Bark Pulverizer Mill

BS series small hammer crusher is suitable for pharmaceutical, chemical, food and other industries. It is a very good powder processing equipment. It is not limited by material hardness, softness and fiber viscosity, and can have a good crushing effect on any material.
All parts in contact with crushed materials are made of stainless steel, which has good corrosion resistance and meets the requirements of GMP. Advantages: simple structure, strong and durable, stable operation and convenient maintenance. It has good crushing effect on leaves and medicinal materials.

Technical data:

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430

Working method:

The machine is composed of frame, crushing chamber and feeding part. A movable cutter head is arranged on the main shaft, a fixed ring tooth is arranged in the crushing cavity, and a screen Mesh is arranged under the ring tooth. When the spindle rotates at high speed, the movable cutter head rotates, and the material is impacted and rubbed between the fixed ring teeth and the Movable Hammer. Under the combined action of Shearing, shearing and impact between materials, crushing is realized. The machine structure is simple, durable, stable operation, crushing effect is obvious, convenient maintenance. The crushed material can be discharged directly from the crushing chamber of the main machine, and the particle size can be obtained by changing the screen mesh with different pore sizes. (The speed can also be adjusted to obtain the fineness of the finished product.)

Main features:

1. Wide Range of application, large processing capacity.
2. A compact structure; a stable operation.
3. The material lapping process is fast and reliable, and the lapping degree is adjustable.
4. The surface of multi-function grinder is clean and easy to clean.

10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill

Detailed image:

10 To 120 Mesh Spice Powder Machine Multifunction Cassia Bark Pulverizer Mill
