Specifications
Brand Name :
Brightsail
Model Number :
BS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case
Product name :
Cortex Cinnamomi Grinding Machine
Finished product :
cortex cinnamomi powder
Applicated Materials :
cinnamon,chili,dry leaf,licorice...
Capacity :
3-300 kg/h
Fineness :
10-120 mesh
Feed size :
<10 mm
Pre-sales services :
Inquiry and consulting support with 24 hours; Machine sample test service; Factory visit
After-sales services :
one year warranty; video support
Description

Food Industry Seasoning Processing Machines Cortex Cinnamomi Grinding Machine

BS series small hammer crusher is suitable for pharmaceutical, chemical, food and other industries. It is a good powder processing equipment. It is not limited by material hardness, softness and fiber viscosity, and can have good crushing effect on any material.
All parts in contact with crushed materials are made of stainless steel, which has good corrosion resistance and meets GMP requirements. Advantages: simple structure, sturdy and durable, stable operation, convenient maintenance. It has a good crushing effect on leaves and medicinal materials.

Technical data:

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430

Working method:

The machine consists of a frame, a crushing chamber and a feeding part. There is a movable cutter head on the main shaft, a fixed ring tooth is arranged in the crushing cavity, and a screen is arranged under the ring tooth. When the main shaft rotates at a high speed, the movable cutter head rotates, and the material is subjected to the impact and friction between the fixed ring teeth and the movable hammer. Under the combined action of shearing, shearing and impact between materials, crushing is realized. The machine is simple in structure, durable, stable in operation, obvious in crushing effect, and convenient in maintenance. The crushed materials can be directly discharged from the crushing chamber of the main machine, and the particle size can be obtained by changing the mesh of different apertures. (The speed can also be adjusted to obtain the fineness of the finished product.)

Main features:

1. Wide application range and large processing capacity.
2. Compact structure; a stable operation.
3. The material grinding process is fast and reliable, and the grinding degree is adjustable.
4. The surface of the multifunctional grinder is clean and easy to clean.

Food Industry 10mm Spice Powder Machine Seasoning Processing Cortex Cinnamomi Grinding

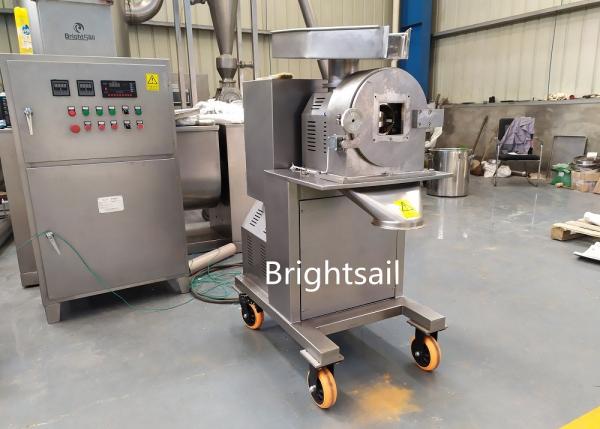

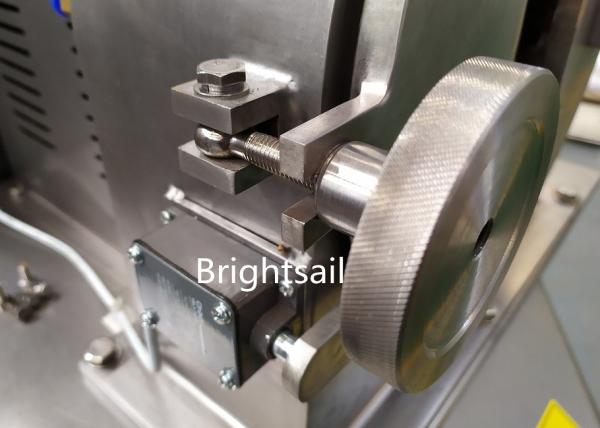

Detailed image:

Food Industry 10mm Spice Powder Machine Seasoning Processing Cortex Cinnamomi Grinding
