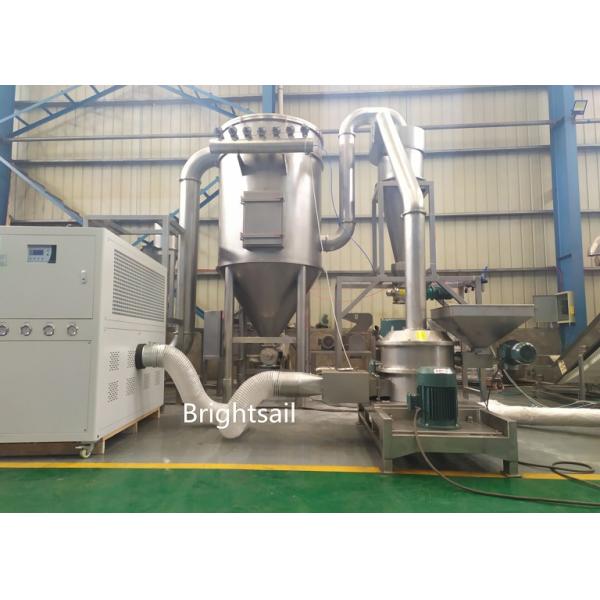

60-2500 Mesh Grains Ultrafine Pulverizer Rice Milling Machine For Food Industry
60-2500 Mesh Grains Ultrafine Pulverizer Rice Milling Machine For Food Industry
60-2500 Mesh Grains Ultrafine Pulverizer Rice Milling Machine For Food Industry
60-2500 Mesh Grains Ultrafine Pulverizer Rice Milling Machine For Food Industry
60-2500 Mesh Grains Ultrafine Pulverizer Rice Milling Machine For Food Industry
60-2500 Mesh Grains Ultrafine Pulverizer Rice Milling Machine For Food Industry
Specifications
Brand Name :
Brightsail
Model Number :
BSP
Certification :
CE ISO
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30-35 days
Packaging Details :
Container
Product name :
rice milling machine
Applicated Fields :
food industry,chemical industry,medical industry
Capacity :
20-1800 kg/h
Input size :
<15 mm
Fineness :
60-2500 mesh
Other Name :
rice mill
Final Product :
ultrafine powder
Description

Food Industry 60-2500 Mesh Grains Ultrafine Pulverizer Rice Milling Machine

BSP rice milling machine is composed of three parts: main machine, auxiliary machine and electric control box. The BSP grinder has the characteristics of air selection, no screen, no net, and uniform granularity of processed materials. Continuous production process can undertake the grinding of chemical products. Food, medicine, cosmetics, plastics, dyes, resins, grains, etc.

Technical data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100

Working method:

The material is fed into the intake bypass air duct by the feed device controlled by the frequency converter, and then pneumatic transported to the classifier. After entering the mill, the material is first sent to the classifier, any specification of materials are directly through the classifier, the air will be sent to the product filter. Coarse material rejected by the classifier falls into the grinding area between the rotor hammer and the surrounding grinding tracks. The particle size is not reduced until it is fine enough to be picked up by the airflow in the mill and presented again to the classifier. This internal recycling is repeated until the material is fine enough to pass through the classifier and leave the air classifier. The product is separated from the conveyed air in the filter. Products through the Rotary Valve discharge, clean air through the filter into the system fan and air.

Packing And Shipping:

1. The modes of transportation we provide: express service, air transportation and sea transportation.

2. Acceptable orders: full container, less container, cases.

3. Delivery method: EXW, FOB, CIF, CNF, etc.

we always choose the most economical and reliable shipping company to ensure that you receive the goods in time. The bill of lading and bill of lading will be provided to you after shipment
