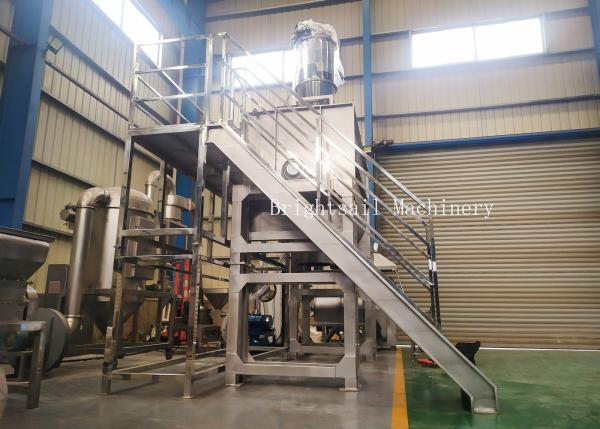

300L Foodstuff Industry Horizontal Ribbon Blender For Granules And Powder Mixing
300L Foodstuff Industry Horizontal Ribbon Blender For Granules And Powder Mixing
300L Foodstuff Industry Horizontal Ribbon Blender For Granules And Powder Mixing
300L Foodstuff Industry Horizontal Ribbon Blender For Granules And Powder Mixing
300L Foodstuff Industry Horizontal Ribbon Blender For Granules And Powder Mixing
300L Foodstuff Industry Horizontal Ribbon Blender For Granules And Powder Mixing
Specifications
Brand Name :
Brightsail
Model Number :
BSR
Certification :
CE ISO
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
30-35 days
Packaging Details :
Wooden case or container
Material :
SUS304,SUS 316,carbon steel
Volume :
60-12000L
Warranty :
One year
Package :
Wooden case or container
Product Name :
ribbon blender
Other Name :
dry powder mixing machine
Description

Foodstuff Industry Suitable For Granules And Powder Mixing Ribbon Blender

About Us:

Our company-Brightsail Machinery Co., Ltd is focus on the research of powder equipment, such as roasting machine,50kg cacao roasting machine, chemical powder mixer machine, detergent powder mixing machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.

Product Description:

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center,and inside screw transmitting the material from center to sides to form convection mix.

Technical data:

Model Max work volume(L) Speed(rpm) Motor(kw) Overall size(L*W*H)(mm) Weight(kg)
BSR-100 60L 62 3 1080*758*615 330
BSR-300 180L 49 5.5 1550*812*1015 780
BSR-500 300L 46 7.5 1975*1059*1120 955
BSR-1000 600L 35 11 2340*1380*1455 1400
BSR-2000 1200L 33 15 2480*1651*1805 2500
BSR-3000 1800L 33 18.5 2945*1896*1980 3300
BSR-4000 2400L 29 22 3038*1946*2205 3600
BSR-5000 3000L 29 30 3932*2010*2035 4320
BSR-6000 3600L 26 37 3938*1882*2246 5300
BSR-8000 4800L 26 45 3986*2160*2516 6800
BSR-10000 6000L 19 55 4500*2270*2667 8900
BSR-15000 9000L 17 75 5363*2470*3020 9950
BSR-20000 12000L 17 90 5670*2650*3497 11140

Working Method:

The belt mixer is mainly composed of a mixing barrel, a mixer and a driving device. The double-twisted belt rotates together with the main shaft in the u-shaped barrel. The outer spiral belt pushes the material toward the center from both ends, and the inner spiral belt pushes the material toward the center from the center to both ends. In this way, material consistency is achieved. The discharge port is located in the center of the bottom, and the material can be completely discharged with the help of the external ribbon.

Main Features:

1. Under the feasibility factor, the mixing effect of the Horizontal Belt Mixer is not affected by the particle size and density, and it also has a good mixing effect for viscous materials.

2. Smooth mixing process to reduce the damage of fragile materials, flying knife structure also played a role in the crusher.

3. Horizontal structure, low height, easy installation.

4. In the mixing structure, the forward and reverse rotating screw rods are installed on the same horizontal axis to form a mixing environment with low power and high efficiency.

300L Foodstuff Industry Horizontal Ribbon Blender For Granules And Powder Mixing

Please contact us if you have interests in our products.
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
