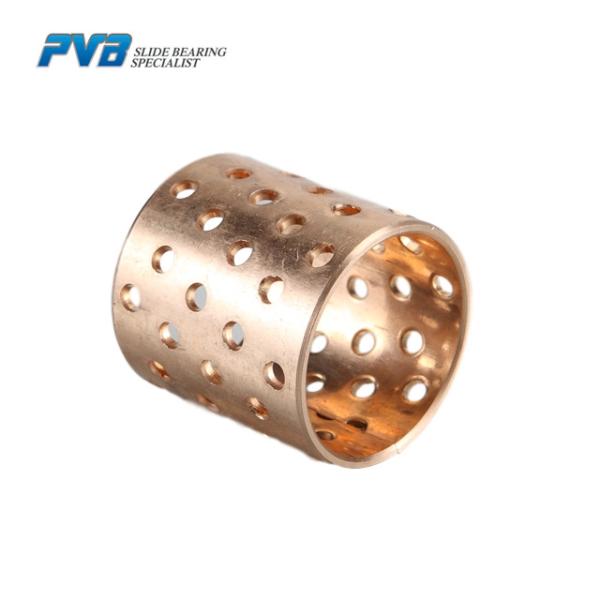

WB802 Sleeve Split Bronze Bearing Bushing With Oil Hole Oil Grooves
WB802 Sleeve Split Bronze Bearing Bushing With Oil Hole Oil Grooves
Specifications
Brand Name :
PVB
Model Number :
ZR-098 Bronze Sleeve Bearing Bushing
Certification :
ISO9001;IATF 16949
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C, D/A, D/P, T/T, D/A, L/C, D/P, T/T
Supply Ability :
500,000PCS/month
Delivery Time :
10-20 days
Packaging Details :
cartons+wooden pallets
Description :
Split Bronze Bearing
Material :
CuSn8P0.3, CuSn6P
Specification :
Standard, customomized
Application :
Forest, Agriculture,Crane, Forklift
Lubricating :
Oil or oil grease
Bush Type :
Sleeve bushing, Cylindrical Bushing
Description

Rolled Bronze Bushing Sliding Bearing with Oil Hole and Oil Grooves, Special Designed Split Bronze Bearing

ZR-098 Bronze bushings are intended for radial and axial movements. The bearings are manufactured of a cold formable homoge-nous bronze, which because of this will obtain exceptional material pro-perties. The execution of the flange permits that the bearing also can carry axial loads. The standard sizes are fitted with holes, which are dispersed in a special way over the whole bearing-surface.

These holes with sepcial designed oil grooves serve as lubricant reservoirs i.a. to rapidly build up a lubrication film in the moment of start and therewith reduce the start friction. The properties of the material, together with the procedure of wrapping and calibration, make this type of bearing especially suitable for constructions, where medium or high loads and relatively slow movements are occurring.

Material Structure

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

ype Cu% Sn% P%
ZR-098 Bronze Bushing 91.3 8.5 0.2

Materail chemical composition refer to the standard of DIN17662 ISO 4382-2: 1991; CW453K
The actual composition proportion is allowed to up or down in certain range based on standard

Characteristics

  • Surface can be incorporated with oil holes and oil grooves linear. Particularly suitable for oscillating bearing.
  • High load capacity and long life.
  • Wide temperature range
  • Easy to assemble
  • Works well in dirty environments
  • Cheap than traditional bronze bush, cost saving.

Operation Performance

ZR-098 Bronze bushings Performance
Dry Operation Poor
Lubricated Operation Good
Greased Operation Good
Machinable Consult with Applications Engineer
RoHS Compliant Compliant

Shapes & forms


Plain bronze cylindrical bearings, flanged bronze bearings, bronze thrust washers, sliding plates.

Application

ZR-098 wrapped bronze bushing is widely used in Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment etc.

Technical Data

Max. Load Static 120N/mm² Elongation 40%
Dynamic 40N/mm² Operation Temperature range -100℃~+200℃
Max. Speed (lubricated) 2m/s Friction coefficient 0.08~0.25
Max. PV 2.8N/mm²*m/s Thermal conductivity 58W(m*K)-1
Tensile Strength 450N/mm² Coefficient of thermal expansion 18.5*10-6*K-1
Alloy Hardness HB 110-150

Mounting Suggestion

  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerance f7

  • Housing: Mounting bevel min. 1.5 mm x 15-45°

  • Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6

  • Shaft: Mounting bevel 5 mm x 15°, edges rounded

  • The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may

  • be necessary when mounting.

  • Stick-in: Adhesive should not contact the sliding surface
