Specifications
Brand Name :
CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Model Number :
Bronze Bearings made of CuSn8 with Grease Reservoirs
Certification :
Bushing Standard Met:MBZ, B09 or MBZ B09
Place of Origin :
Bronze Bushing Manufacturer
MOQ :
phosphor bronze bush,tin bronze bearings,brass bushes
Price :
Precision Tolerance, Factory Price‎
Payment Terms :
TT IN ADVANCE, Western Union
Supply Ability :
Perforated Bronze Bearing，Plain Bronze Wrapped Bearings
Delivery Time :
2-3 Weeks
Packaging Details :
EXPORT CARTONS,WOODEN PALLET
Bushings Meterial :
Bronze CuSn8,CuSn8 with composition Sn 8 % P < 0.05 % Cu Rest
Bearing forms made to order :
cylindrical bushes with non-standard dimensions, customized bearing designs
CHARACTERISTICS :

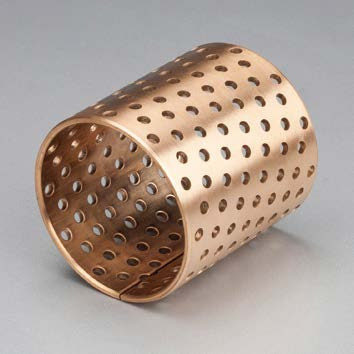

Solid bronze strip with perforation for lubricated applications
Performance :
larger grease reservoirs increase maintenance intervals, dirt and debris swept into perforations, thereby reducing wear
Bushing Feature :
High loads and low speeds,with Grease Reservoirs for Long Term Lubrication
Bushings Application :
Agricultural, Building And Engineering Machines, Etc
Bushing standard :
Wear resistant bearing,met ROHS
Bushing Online :
FB090 & FB092 BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700
Get A Better Quote :
tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Bronze Bushing manufacturers & suppliers :
https://www.viiplus.com/
High Light: :
CuSn8P (DIN 17662) Bronze Bushing Sliding bearing
Feature :
BRO-MET, FB090, BRM10, WB800
specialty :
Бронзовые втулки
Bushing Type :

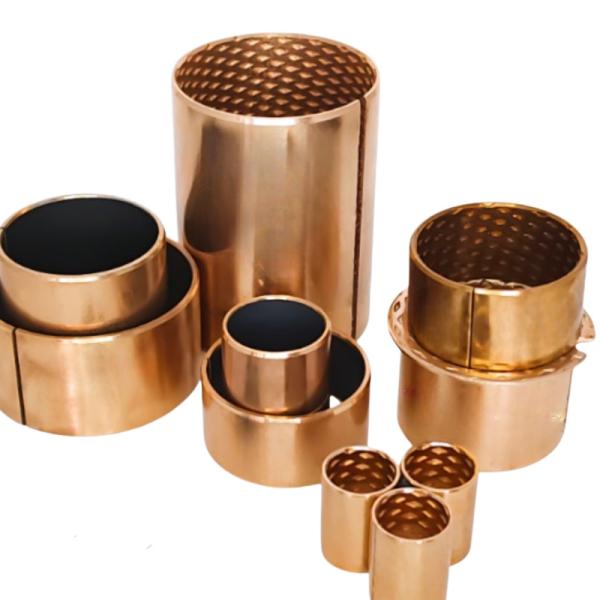

The sliding surface of cusn8 wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease .
Bushing Manufacturer :
wrapped bronze bushings are particu- larly well suited for applications where high levels of contamination make relubrication necessary .
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

CuSn8 Bronze Bushings – Precision Engineering for Industrial Excellence

Meta Title: CuSn8 Bronze Bushings | VIIPLUS – High-Performance Self-Lubricating Bearings for Heavy Machinery
Meta Description: Discover VIIPLUS’s CuSn8 Bronze Bushings – engineered for wear resistance, thermal efficiency, and low maintenance. Ideal for construction, mining, and automotive industries. Request a quote today!

​Introduction: Powering Industrial Reliability with CuSn8 Bronze Bushings

In industries where downtime is costly and performance is critical, VIIPLUS delivers ​CuSn8 Wrought Bronze Bushings – precision-engineered components designed to withstand extreme loads, corrosive environments, and high-speed operations. Crafted from high-grade ​tin-based bronze alloy (CuSn8), these bushings combine durability, self-lubrication, and thermal efficiency to optimize machinery performance in sectors like mining, construction, and automotive engineering.

​Why VIIPLUS CuSn8 Bronze Bushings? Key Features

​1. Premium CuSn8 Bronze Alloy

  • ​Wear & Corrosion Resistance: Thrives in abrasive, high-moisture, and chemically aggressive environments.
  • ​Self-Lubricating Design: Diamond-shaped oil pockets retain grease, reducing friction by ​40% and minimizing maintenance.
  • ​Thermal Conductivity: Efficient heat dissipation prevents overheating, extending component lifespan.

​2. Precision Manufacturing

  • ​Wrapped/Rolled Construction: Lightweight, thin-walled design reduces machinery weight without compromising strength.
  • ​Tolerance Compliance: Housing (H7), shaft (IT7/IT8), and post-installation ID (H9) ensure seamless integration.

​3. Robust Performance

  • ​High Load Capacity: Supports static loads up to ​120 N/mm² and dynamic loads of ​40 N/mm².
  • ​Temperature Resilience: Operates flawlessly from ​**-50°C to +200°C**, ideal for extreme conditions.

​Technical Specifications

​Parameter ​Details
​Material CuSn8 bronze alloy (Sn 8.5%, P 0.2%, Cu balance)
​Lubrication Grease or oil with graphite/MoS₂ additives
​Standards ISO 3547, ROHS Certified
​Models FB092, BRM 80, WB702, WF-WB702

​Applications: Where CuSn8 Bushings Excel

  • ​Heavy Machinery: Excavators, cranes, conveyor systems.
  • ​Mining & Tunneling: Drilling rigs, crushers, material handlers.
  • ​Automotive: Transmissions, suspension assemblies, hydraulic pumps.
  • ​Marine & Offshore: Propeller shafts, winches, ship engines.
  • ​Agriculture: Tractors, harvesters, irrigation systems.

​Advantages Over Solid Bronze Bearings

  • ​Cost Efficiency: Thin-walled design reduces material costs by ​30%.
  • ​Easy Installation: Split and flanged variants simplify assembly.
  • ​Chemical Resistance: Withstands aggressive media, ideal for contaminated environments.
  • ​Low Noise & Vibration: Smooth operation enhances equipment longevity.

​Unique Benefits of VIIPLUS CuSn8 Bushings

  1. ​Integrated Lubrication Pockets: Diamond or ball-shaped oil reservoirs ensure consistent lubrication.
  2. ​Corrosion Resistance: Ideal for steel component compatibility in harsh environments.
  3. ​Customization: Available in cylindrical, flanged, or thrust washer designs (1–2.5mm thickness).
  4. ​Low Maintenance: Initial greasing and periodic checks ensure long-term performance.

​Why Choose VIIPLUS?

  • ​Global Supplier: Rapid shipping for standard sizes (e.g., ​FB092, ​WB702).
  • ​Quality Assurance: Rigorous testing for load capacity, friction, and durability.
  • ​Industry Expertise: Trusted by OEMs in construction, mining, and marine sectors.
  • ​Eco-Friendly: ROHS-compliant materials align with sustainability goals.

​Structure & Composition

  • ​Material: Cold-formed homogeneous CuSn8 bronze with diamond-shaped indents.
  • ​Design: Lubrication grooves, thrust washers, and customizable panels for specialized needs.
  • ​Performance: Rapid lubrication film formation reduces startup friction and wear.

​Conclusion: Elevate Efficiency with VIIPLUS

VIIPLUS CuSn8 Bronze Bushings redefine industrial reliability, offering unmatched durability, self-lubrication, and precision. Whether in construction, mining, or automotive systems, these components reduce downtime, lower maintenance costs, and enhance operational efficiency.

Request Your Custom Solution Today!
[Contact VIIPLUS] for pricing, technical specs, or tailored designs. Explore our full range of ​wrapped bearings, ​flanged bushings, and ​bimetal sleeves engineered for peak performance.

Keywords: CuSn8 bronze bushings, self-lubricating bearings, industrial wrapped bearings, mining machinery components, VIIPLUS bronze solutions

Lead-Free Wrought Copper Alloys for Bushings - Wrought Bronze Bushing CuSn8 Material

As manufacturers, we produce almost every dimension possible. Economic pricesNo minimum quantities.Customized solutions.Highlights: Made in China, no minimum quantities, offering short delivery times, product catalog available.

Bronze bushing flange F090 ID25 OD28 F35 L25.pdf

FB090 wrought bronze bushing, surface rolled diamond, plays the role of oil storage, it has good fatigue strength and bearing capacity, corrosion resistance, wear resistance. In practice, according to the different working conditions, different grades of alloy can be used in the matrix, and the surface can be processed into other forms of oil holes and grooves.


Wrought Bronze Bushing CuSn8 Material

Microsection

Wrought Bronze Bushing CuSn8 Material

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest


OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Good

Water lubricated

Poor

Process fluid lubricated

Poor

Bearing Properties

Max.Load

Static

120N/mm²

Elongation

40%

Dynamic

40N/mm²

Temp

-100℃~+200℃

Coefficient of friction

0.08~0.25

Max.speed(Lubrication)

Max.Speed

2m/s

Thermal conductivity

58W(m*k)-1

Max.PV

Max.PV

2.8N/mm²*m/s

Coef. of thermal expansion

18.5*10-6K-1

Tensile strength

Tensile strength

450N/mm²

Hardness

Hardness

HB 100-150

Product NO.

Chemical Compositions

VSB-22

Cu

Sn

P

91.3

8.3

0.2




Availability


Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

Typical Applications


This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.

Wrapped bronze bearing 090 series
Data Grade Wrapped bronze bearing 090 Wrapped bronze bearing 092 Wrapped bronze bearing 09G

Material		 CuSn8P CuSn8P CuSn8P+Graphite
Typicai applicaton Products are suitable for lifting machinery, construction machinery, mining machinery, agricultural machinery, forest machinery and so on Products are widely used in agricultural machinery, construction machinery, construction machinery and so on. It has the advantages of low friction coefficient, good wear resistance and so on, and can work under the condition of no oil or little oil. The products are widely used in starting motors and hoist, construction machinery, cars, trucks, tractors and so on.
Densityg/cm3 8.8 8.8 8.8
Max. dynamic loadN/mm2 100 120 100
Max. linear speed (grease lubrication) m/s 2 2.5 2.5
Max. PV value (grease lubrication)N/mm2·m/s 2.8 2.8 2.8
Tensile strength N/mm2 >460 >460 >460

Yield Strength N/mm2

 >280 >280 >280
HB 90~150 90~150 90~150
Matching shaft HRC ≥50 ≥50 ≥50
Roughness 0.4~1.0 0.4~1.0 0.4~1.0
proper temperature ℃ -40~150 -40~150 -40~150
Friction coefficient 0.06~0.15 0.06~0.15 0.03~0.1
Heat conductivity coefficient W/m·K 58 58 58
Coefficient of linear expansion (axial) 18.5×10-6/K 18.5×10-6/K 18.5×10-6/K


Start Your

Project Size 090 Bronze Wrapped Bushing With An Application Engineer
