Specifications
Brand Name :
CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Model Number :
Bronze Bearings and Bronze Sleeve Bushings made of CuSn8
Certification :
Bushing Standard Met:MBZ, B09 or MBZ B09
Place of Origin :
Bronze Bushing Manufacturer
MOQ :
phosphor bronze bush,tin bronze bearings,brass bushes
Price :
Precision Tolerance, Factory Price‎
Payment Terms :
TT IN ADVANCE
Supply Ability :
Perforated Bronze Bearing，Plain Bronze Wrapped Bearings
Delivery Time :
2-3 Weeks
Packaging Details :
EXPORT CARTONS
Meterial :
Bronze CuSn8,CuSn6.5
Type :
Wrapped Bushes, Flanged Bearing, Thrust Washer
Feature :
BRO-MET, FB090, BRM10, WB800
Lubrication :
oil lubrication
Quality :
OEM quality
Application :
Agricultural, Building And Engineering Machines, Etc
Get A Better Quote :
tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Bronze Bushing manufacturers & suppliers :
https://www.viiplus.com/
High Light: :
CuSn8P (DIN 17662) Bronze Bushing Sliding bearing
specialty :
Бронзовые втулки
Bushing Type :
The sliding surface of cusn8 wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease .
Bushing Manufacturer :
wrapped bronze bushings are particu- larly well suited for applications where high levels of contamination make relubrication necessary .
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

CuSn6 & CuSn8 Bronze Bearings – Precision Engineering for Industrial Durability

Meta Title: CuSn8 Bronze Bearings | VIIPLUS – High-Performance Phosphor Tin Bronze Bushings for Heavy-Duty Applications
Meta Description: Discover VIIPLUS’s CuSn6 & CuSn8 Bronze Bearings – engineered for corrosion resistance, high load capacity, and low maintenance. Ideal for agriculture, construction, and transport industries. Request a quote today!

​Introduction: Elevate Industrial Performance with VIIPLUS Bronze Bearings

In industries where machinery endurance is non-negotiable, VIIPLUS stands at the forefront with ​CuSn6 and CuSn8 Phosphor Tin Bronze Bearings. Engineered for excellence, these bearings combine superior corrosion resistance, mechanical strength, and innovative lubrication design to thrive in the most demanding environments. Whether in agriculture, construction, or transportation, VIIPLUS bearings ensure reliability, longevity, and peak performance.

​Key Features of VIIPLUS CuSn6 & CuSn8 Bronze Bearings

​1. Premium Material Composition

  • ​CuSn8 Alloy (CW453K): Renowned for high-density tin bronze with 8.5% Sn and 0.2% P, offering exceptional wear resistance and fatigue strength.
  • ​CuSn6 Variant: Ideal for applications requiring balanced strength and cost-efficiency.

​2. Advanced Lubrication Design

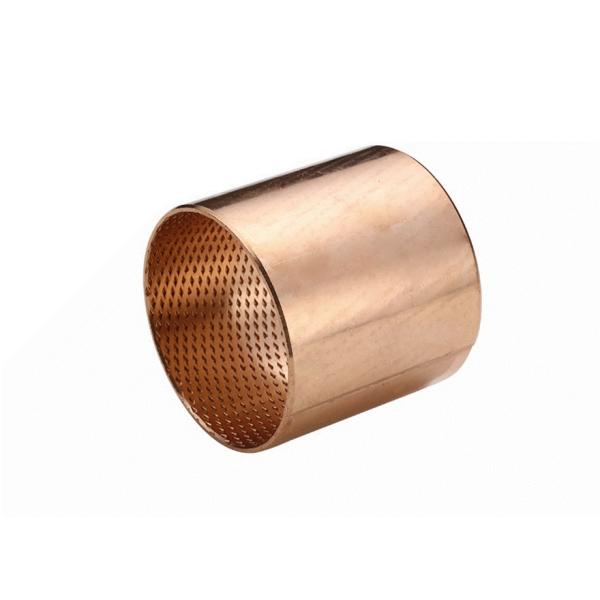

  • ​Diamond Oil Sockets: Strategically placed indentations retain grease, reducing friction by up to ​24% and extending lubrication intervals.
  • ​Through-Hole Versions (092 Series): Enhanced grease capacity for high-contamination environments.

​3. Robust Construction

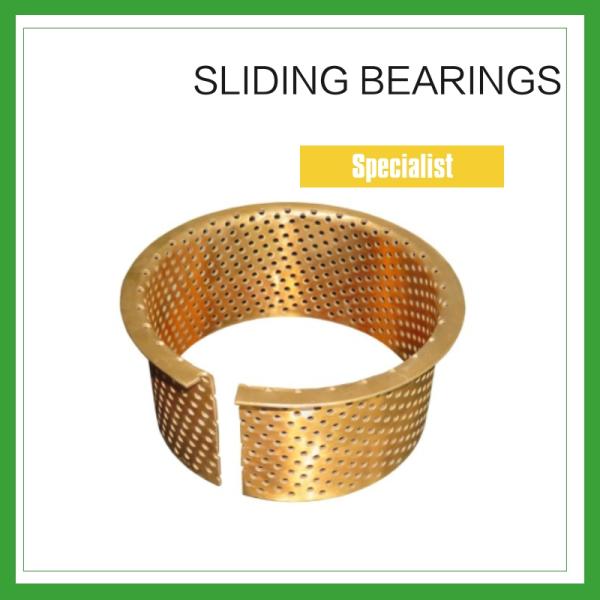

  • ​Wrapped & Flanged Designs: Available in cylindrical sleeves (090) and flanged bushings (092) with thicknesses from ​1–2.5 mm.
  • ​Cold-Formed Homogeneous Bronze: Ensures uniform density and structural integrity.

​Technical Specifications

​Parameter ​Details
​Material CuSn8P (91.3% Cu, 8.5% Sn, 0.2% P)
​Load Capacity Static: 120 N/mm²
​Thermal Conductivity 60 W/m·K
​Temperature Range -100°C to +200°C
​Standards ISO 3547, DIN 1494

​Applications Built for Heavy-Duty Performance

  • ​Agricultural Machinery: Tractors, harvesters, and irrigation systems.
  • ​Construction Equipment: Excavators, cranes, and hydraulic lifts.
  • ​Transportation: Conveyors, elevators, and material handling systems.
  • ​Industrial Machinery: Low-speed, high-load applications requiring minimal maintenance.

​Advantages of VIIPLUS Bronze Bearings

  • ​High Load Capacity: Withstand extreme pressures and shock loads.
  • ​Corrosion & Wear Resistance: Excel in harsh, abrasive, or chemically aggressive settings.
  • ​Low Maintenance: Self-lubricating design reduces downtime and operational costs.
  • ​Easy Installation: Lightweight, thin-walled structure simplifies mounting in H7 tolerance housings.
  • ​Customization: Tailored dimensions (OD, ID, length) and lubrication patterns (spherical/diamond pockets).

​Why Choose VIIPLUS?

  • ​Global Compliance: Manufactured to ISO and DIN standards for guaranteed quality.
  • ​Rapid Availability: Standard sizes (090/092 series) ready for immediate shipment.
  • ​Expert Support: 40+ years of metallurgical expertise to solve unique industrial challenges.
  • ​Sustainability: Eco-friendly materials aligned with global environmental standards.

​Conclusion: Optimize Your Machinery with VIIPLUS

VIIPLUS CuSn6 and CuSn8 Bronze Bearings redefine durability and efficiency in industrial applications. With advanced lubrication, robust construction, and tailored solutions, they deliver ​longer service life, ​reduced friction, and ​cost-effective performance.

Transform Your Operations Today!
[Contact VIIPLUS] for a customized quote or to explore our full range of bronze bearings. Let our experts help you find the perfect solution for your machinery needs.

Keywords: CuSn8 bronze bearings, phosphor tin bronze bushings, industrial sleeve bearings, VIIPLUS CW453K, heavy-duty bearings

Wrapped Bronze Bushings.pdf

Alternative BRO-MET L/BRM 80 FB092 rolled bronze bushing CuSn8 090 & 092 BRONZE BUSHES, BUSHES –VIIPLUS Sliding Bearing

CuSn8/CuSn6 092 bronze wrapped bearing gleitlager with holes made to order 092

Bronze wrapped bushing Bronze sleeve Bronze oilles self lubrication bearing

Wrapped Bronze Bushing - FB092(BMZ/L,WB702,WB802). FB090 Wrapped Bronze Bearings, CuSn6.5P, CuSn8P, Diamond oil pocket.

CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing

Id 45 (mm) diameter 50 (mm) Length70 (mm)

Material:CuSn8/CuSn6CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing

CUSN6 / CUSN8 BRONZE BEARINGS & BUSHINGS MATERIAL

Chemical composition (nom for Cu Sn8/CW453K)

– Cu Rest

– Sn 7.5-8.5%

– P 0.01-0.04%

Max impurities

– Ni <0.01%

– Pb <0.01%

– Zn <0.01%

– Fe <0.01%

Chemical composition (nom for Cu Sn6/CW452K)

– Cu Rest

– Sn 5.5-7.0%

– P 0.01-0.04%

Max impurities

– Ni <0.01%

– Pb <0.01%

– Zn <0.01%

– Fe <0.01%

bronze bushing size chart
[mm] d D L D1
BRONZE BUSHING-FBB090-2515 25 28 15 35
BRONZE BUSHING-FBB090-2525 25 28 25 35
BRONZE BUSHING-FBB090-3020 30 34 20 45
BRONZE BUSHING-FBB090-3030 30 34 30 45
BRONZE BUSHING-FBB090-3520 35 39 20 50
BRONZE BUSHING-FBB090-3530 35 39 30 50
BRONZE BUSHING-FBB090-4025 40 44 25 55
BRONZE BUSHING-FBB090-4040 40 44 40 55
BRONZE BUSHING-FBB090-4530 45 50 30 60
BRONZE BUSHING-FBB090-4545 45 50 45 60
BRONZE BUSHING-FBB090-4550 45 50 50 60
BRONZE BUSHING-FBB090-5030 50 55 30 65
BRONZE BUSHING-FBB090-5050 50 55 50 65
BRONZE BUSHING-FBB090-5530 55 60 30 70
BRONZE BUSHING-FBB090-5550 55 60 50 70
BRONZE BUSHING-FBB090-6030 60 65 30 75
BRONZE BUSHING-FBB090-6035 60 65 35 75
BRONZE BUSHING-FBB090-6060 60 65 60 75
BRONZE BUSHING-FBB090-6530 65 70 30 80
BRONZE BUSHING-FBB090-6560 65 70 60 80
BRONZE BUSHING-FBB090-7040 70 75 40 85
BRONZE BUSHING-FBB090-7070 70 75 70 85
BRONZE BUSHING-FBB090-7540 75 80 40 90
BRONZE BUSHING-FBB090-7570 75 80 70 90
BRONZE BUSHING-FBB090-8040 80 85 40 100
BRONZE BUSHING-FBB090-8080 80 85 80 100
BRONZE BUSHING-FBB090-9050 90 95 50 110
BRONZE BUSHING-FBB090-9070 90 95 70 110
BRONZE BUSHING-FBB090-9090 90 95 90 110
BRONZE BUSHING-FBB090-10050 100 105 50 120
BRONZE BUSHING-FBB090-10090 100 105 90 120
BRONZE BUSHING-FBB090-11050 110 115 50 130
BRONZE BUSHING-FBB090-11090 110 115 90 130
BRONZE BUSHING-FBB090-12050 120 125 50 140
BRONZE BUSHING-FBB090-12090 120 125 90 140
BRONZE BUSHING-FBB090-13060 130 135 60 155
BRONZE BUSHING-FBB090-13090 130 135 90 155
BRONZE BUSHING-FBB090-14060 140 145 60 165
BRONZE BUSHING-FBB090-14090 140 145 90 165
BRONZE BUSHING-FBB090-15060 150 155 60 180
BRONZE BUSHING-FBB090-15090 150 155 90 180
BRONZE BUSHING-FBB090-16060 160 165 60 190
BRONZE BUSHING-FBB090-16090 160 165 90 190
BRONZE BUSHING-FBB090-17060 170 175 60 200
BRONZE BUSHING-FBB090-17090 170 175 90 200
BRONZE BUSHING-FBB090-18060 180 185 60 215
BRONZE BUSHING-FBB090-18090 180 185 90 215
BRONZE BUSHING-FBB090-19060 190 195 60 225
BRONZE BUSHING-FBB090-19090 190 195 90 225
BRONZE BUSHING-FBB090-20060 200 205 60 235
BRONZE BUSHING-FBB090-20090 200 205 90 235
BRONZE BUSHING-FBB090-22560 225 230 60 260
BRONZE BUSHING-FBB090-22590 225 230 90 260
BRONZE BUSHING-FBB090-25060 250 255 60 290
BRONZE BUSHING-FBB090-25090 250 255 90 290
BRONZE BUSHING-FBB090-26560 265 270 60 305
BRONZE BUSHING-FBB090-26590 265 270 90 305
BRONZE BUSHING-FBB090-28560 285 290 60 325
BRONZE BUSHING-FBB090-28590 285 290 90 325
BRONZE BUSHING-FBB090-30060 300 305 60 340
BRONZE BUSHING-FBB090-30090 300 305 90 340

Products Show

We provide professional sliding bearing solution (FB090) CuSn8P(Qsn8-0.3)

Technical Date

Material

FB090

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB091

Bronze(CuZn31Si)

FB092

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB094

Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings

FB090G

Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite

Load capacity

100N/mm2

Speed limit

2m/s

PV value limit

2.8N/mm2.m/s

Tensile Strength

460N/mm2

Yeild Strength

260N/mm2

Hardness

90~150HB

Mating axis required

Hardness

>=50HRC

Roughness

Ra=0.4~1.0

Friction coef

0.05~0.2

Working temperature max.

150°C

CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing

Size 090 & 092 Bronze wrapped bushing

START YOUR PROJECTWITH AN APPLICATION ENGINEER

Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings

CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing

Send your message to this supplier
Send Now

CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing

Ask Latest Price
Watch Video
Product Detail
Brand Name :
CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Model Number :
Bronze Bearings and Bronze Sleeve Bushings made of CuSn8
Certification :
Bushing Standard Met:MBZ, B09 or MBZ B09
Place of Origin :
Bronze Bushing Manufacturer
MOQ :
phosphor bronze bush,tin bronze bearings,brass bushes
Price :
Precision Tolerance, Factory Price‎
Contact Supplier
video
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing
CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing

JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD

Site Member
7 Years
zhejiang
Since 2016
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Trading Company, Seller
Main Products :
Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings
Total Annual :
2 Million USD-2.5 Million
Employee Number :
20~100
Certification Level :
Site Member
Discover similar products
View More
Watch related videos

Find Similar Products By Category:

Supplier Homepage Products Wrapped Bronze Bearings
MachineU China Products Machinery Machinery Accessories Linear Guides
Contact Supplier
Submit Requirement
