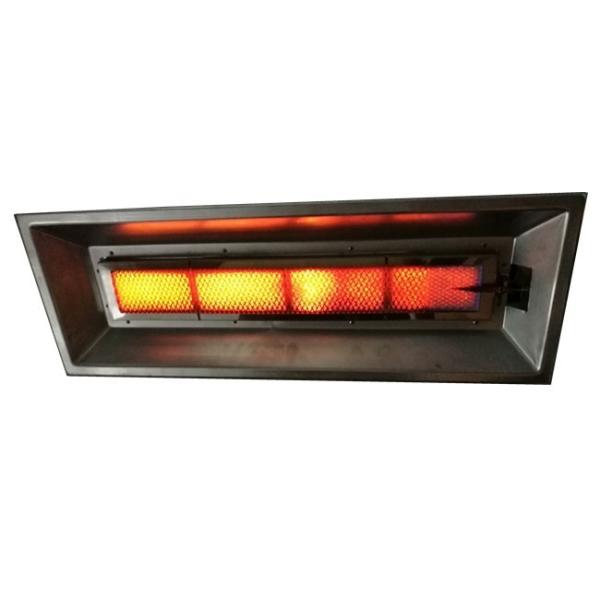

Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Natural Gas Patio Infrared Outdoor Radiant Heaters 675*235*95mm
Specifications
Brand Name :
THD
Model Number :
THD6806
Certification :
CE
Place of Origin :
Chongqing, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 pcs per day
Delivery Time :
According to your qty
Packaging Details :
2 pcs a carton, carton size: 80*30*30cm

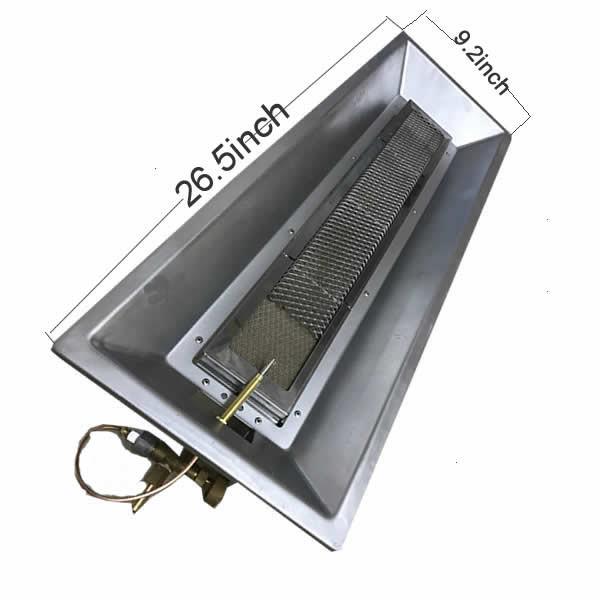

Size :
675*235*95mm
warranty :
1 year
Working Gas Pressure :
3000 to 5000 Pascal
After Warranty Service :
Video technical support
Feature :
Energy saving
weight :
2.7 kg
Description
PRODUCTION SPECIFICATION

Infrared body offers cost effective and can install in all direction. Our infrared plaques (Ceramic fiber, Cordierite and
Cordietire REE) offer high intensity medium-long wave and low gas consumption up to 20%

Widely used in farms, poultry houses, livestock farms, plant greenhouses, courtyards, cafe terraces, etc
Now based on IR Catalytic technology, we manufacture gas brooder for poultry house, with two ways to
ignition: manual ignition (THD2606/6806) and auto-ignition type (THD2608/6808).

Products Structure

Shell material: heat-resistant aluminum plate, light does not rust (on the market of some iron-based enamel
coating, after the bump easily fall off and rust);
Burning surface: High quality cordierite honeycomb panels with catalyst coating
OPERATION STEPS
Automatic heater system installation diagram

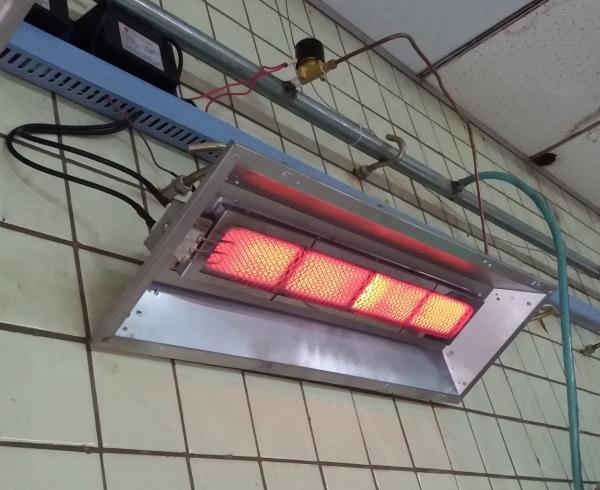

Product Application
Advantage
This heater uses catalytic combustion technology, has a higher heat conversion capacity. Under the same
air consumption, it releases more heat and produces less waste gas.
1. Economical & Energy saving: in the same power, our heater saves 30%~60% cost than electric heater.
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. High efficiency: thermal conversion rate ≥90%
Advantage
4. THD2608/THD6808 coud keep the room constant temperature automatically when use thermostat.
5. Flameout protection device: when the flameout occurs, the valve automatically closes the gas to prevent gas leakage.
6. THD2606/THD6806 could use biogas, and adjust fire big or small.
7. Radiation area: suspended from the ground at 0.9 ~ 1.5m high radiation area of 10 ~ 20 square meters, heating 600 ~ 1500 chickens.
8. Silent, light and compact.
Product packaging
Contact Information
Sharon Liao
Mobile/Wechat: +86 19122307299
Whatsapp: +86 19122307299
Skype: live:478192910
