Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
Specifications
Brand Name :
THD
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10pcs/week
Delivery Time :
5~10 workdays
Packaging Details :
Wooden box
Usage :
Industrial
Theory :
Temperature Controller,Temperature Sensor
Power supply :
110~220V power supply without batteries
Temperature sensor :
temperature control
Warranty :
18 Months
Origin :
China
Product Name :
Heating Element Thermostat Temperature Controller For Infrared Gas Burner
Description

Product Name: Heating Element Thermostat Temperature Controller For Infrared Gas Burner

I Working Purpose

The thermostat controls gas heater/burner to keep stable temperature and save gas.

When heating area reaches setting required temperature, the thermostat controls gas burner/heater stop working;

While heating area under setting required temperature, the thermostat controls gas burner/heater start working again.

Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner

Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner

II Composition of Thermostat

It includes a thermocouple, a adjustable temperature controller, powder switch, ignite switch, working indicator and alarm.

One thermostat can control 1~40sets gas heater/burner.

III Working Principle

Open gas cylinder → adjust gas pressure to 3500~5000pa → turn on the main power of electric

controller → setting required temperature → turn on ignition switch→Solenoid valve supply gas /

3 pins ignite gas burner/heater → gas burner/heater working normally.

2. Thermocouple detect the heating area temperature → reach setting temperature →

Half or all gas burner stop working → lower than setting temperature →

Ignition automatically by controller → Gas burners restart working.

IV Flameout Protection

When 3 pin failed ignite infrared burner/heater, pulse igniter will control solenoid valve stopping supply gas. So it avoids gas leakage.

Restart ignition: turn on ignition switch again.

V Connection

Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner

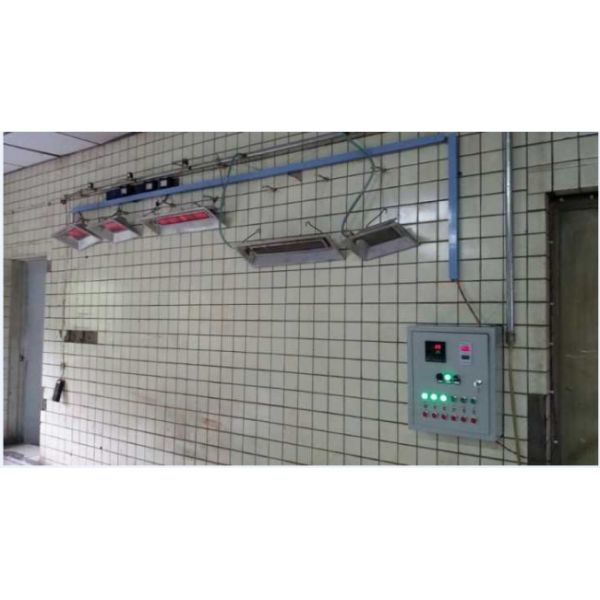

VI Installation system

Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner

Heating Element Thermostat Temperature Controller Industrial For Infrared Gas Burner
