Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb
Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb
Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb
Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb
Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb
Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb
Specifications
Brand Name :
HD
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per week
Delivery Time :
2-7 days
Packaging Details :
carton wooden box
Materail :
ceramic
type :
honeycomb
size :
Rectangle round
Use :
burner
Description

Gas Burner Heater Ceramic Heater Plates Tile Honeycomb

Infrared catalytic burner is a porous ceramic honeycomb panels attached to the catalyst as a burning stove, made ​​use of advanced science and technology design. As a result of the ideal combustion - catalytic combustion of methane gas can be more fullycombustion, maximize the energy of the gas, while also reducing flue gas pollution (CO <0.02% of NOx <10 ppm), completely to meetnational environmental standards; Ceramic Heater Plates it is safe and use for long use life. catalytic combustion but also to eliminate the infrared combustion prone to coking phenomenon, to effectively extend the life of the burner; our catalytic combustion in the hole of the porous ceramic honeycomb board, it istrue flameless combustion, produce most of the energy released in the form of infrared radiation, infrared has a strong penetration can stimulate the resonance of water molecules, so that the heat to penetrate into the depths of the object to be heated evenly. in order to ensure uniform heating effect to achieve the purpose to improve the heating quality and drying efficiency.

Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb

Ceramic Heater Plates

hole
square hole
round hole
Material
cordierite
cordierite
Density
0.45-0.65g/cm³
0.45-0.65g/cm³
Hole density
200-320/Square feet
260/280/320/520/Square feet
Wall thickness
/
0.18-0.23/0.18-0.33/0.35-0.40mm
Deep hole
/
1.06/1.13/1.20mm
Aperture
1.12/1.25/1.42mm
/
Hole center distance
1.8/2.2/2.7mm
1.33-1.59mm
Opening rate
33.5-36.4%
63.5-73.5%
Bibulous rate
>46%
>40%
Coefficient of thermal expansion
2.0-2.3*10(-6)
2.0-2.5*10(-6)
Thermal stability
850℃-25℃,No cracking three times
1200℃-25℃,Repeated cooling in the air did not crack
Softening temperature
>1375℃
>1375℃
Surface flash point
1000-1200℃
1000-1200℃
Carbon monoxide release rate
≤80ppm
≤80ppm
Nitrogen oxide release rate
≤10ppm
≤10ppm
Longitudinal compressive strength
>13Mpa
>10Mpa
Transverse compressive strength
>6Mpa
>3Mpa

Gas Burner Heater Ceramic Heater Plates Tile Honeycomb Application.

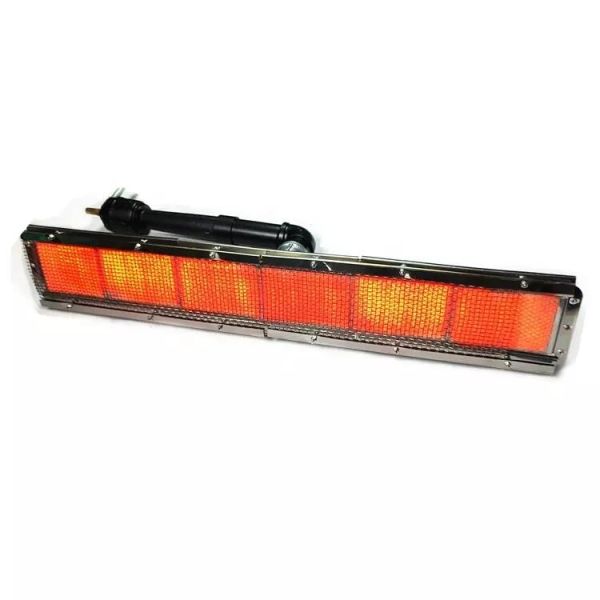

Ceramic Heater Plates mainly use for infrared gas burner

Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb

Rectangle Cordierite Gas Ceramic Heater Plates Tile Honeycomb
