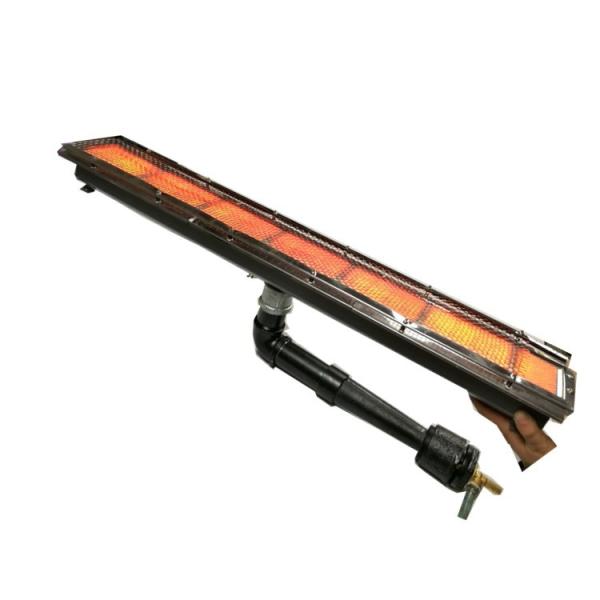

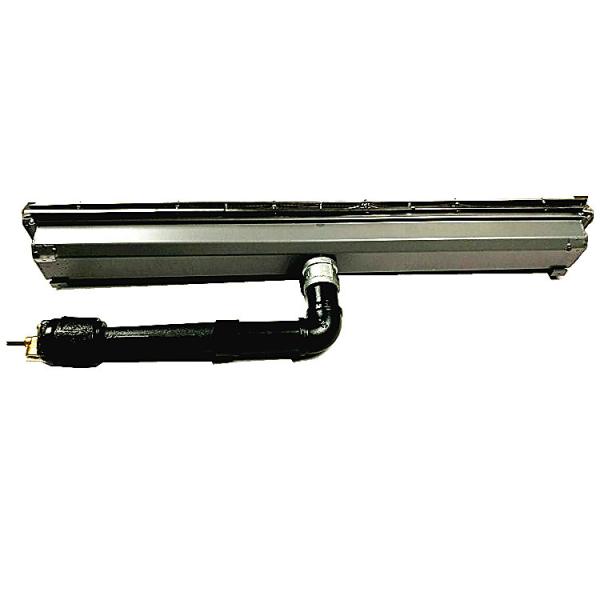

HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
HD262 Industrial Catalytic Gas Burner Infrared Gas Furnace Burner Built In
Specifications
Brand Name :
THD
Model Number :
HD262
Place of Origin :
CHONGQING, CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
5-10 workdays
Packaging Details :
20pcs in 1 Outer Carton (52*43*42cm)
Type :
Infrared burner
Color :
Grey
Power Source :
LPG/NG
Dimension :
930*130*175mm
Weight :
7.9KG
Installation :
Built in
Life time :
above 11000hr
Feature :
Easily Assembled
Usage :
Industrial heating, powder coating drying, food baking, latex glove heating
Product Name :
Infrared Catalytic Gas Burner Industrial Gas Furnace Burner
Description

Product Name: Infrared Catalytic Gas Burner Industrial Gas Furnace Burner HD262

Established in year 2005, Chongqing Haodong Technology Co., Ltd is a manufacturer specialized
in the research, development and production of infrared catalytic burner,and also the first and
only company now in China who apply rare-earth catalytic combustion technology in
infrared burner.

Spare parts for Industrial infrared Gas furnace Burner:

Pulse igniter, connector, solenoid valve, ignition pin.

Product Description

Models and specification of Infrared Catalytic Gas Burner Industrial Gas Furnace Burner:

MODEL Dimension Weight GasType Heat Output Consumption
mm kg KW/h Kcal/hr NG(m3/h) LPG(kg/h)
HD262 930*130*175 13 NG/LPG 10.9 9360 0.8 0.82

Details of Infrared Catalytic Gas Burner Industrial Gas Furnace Burner:

Item Infrared gas burner HD262
Spare parts Ignition pin, pulse igniter, solenoid valve
Gas type LPG, natural gas
Heat transfer rate >95%
High efficiency Start work in 8 seconds
Use lifetime >11000hrs, with right use, can use 3~7 years.
Technology Rare-earth catalyst, save gas 20%
Smokeless & Flameless CO,80ppm, NOx<10ppm, CHx<50ppm
Material

Galvanized steel body,

cast iron air damper,

honeycomb ceramic plates with catalyst,

brass nozzle
Usage

Industrial surface treatment;

Food baking;

Latex/rubber glove drying;

fiber/texitle drying;

asphalt road drying.

Application

Infrared catalytic gas burner is good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production & equirpment cost,demand of space is small and easy to control......It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially in metal curing & food baking.......

Application of Infrared Catalytic Gas Burner Industrial Gas Furnace Burner

Our sevices:

Please contact me online, or just send me an email.

We promise reply you and will solve any problem after sell at first time.

Ms. Kathy Tang

Mobile, Whatsapp, Wechat: 0086-18423473470

Skype: tyc9744
