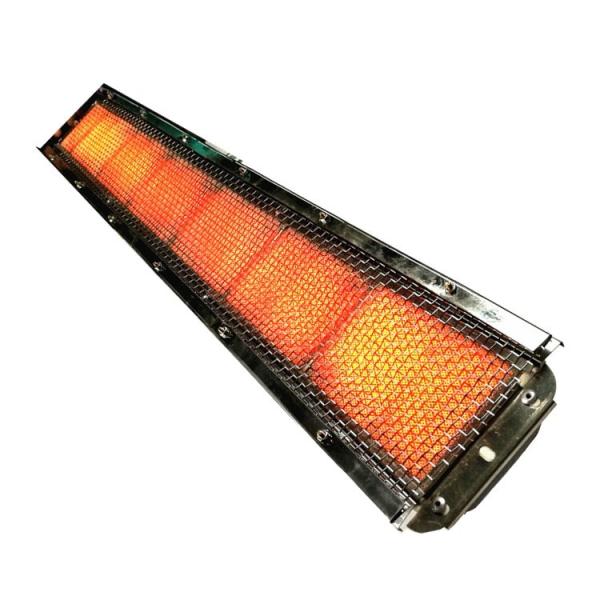

NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
Specifications
Brand Name :
THD
Model Number :
HD242
Place of Origin :
CHONGQING, CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
5-10 workdays
Packaging Details :
20pcs in 1 Outer Carton (52*43*42cm)
Type :
Infrared gas burner
Color :
Silver
Power Source :
LPG/NG
Dimension :
860*130*175mm
Weight :
7KG
Installation :
At bottom and sides of oven
Life time :
above 11000hr
Feature :
Easily Assembled
Usage :
Industrial heating, powder coating drying, food baking, latex glove heating
Product Name :
Heating Elements Catalytic Gas Burner Infrared For Industrial Oven
Description

Product Name: Heating Elements Catalytic Gas Burner Infrared For Industrial Oven HD242

We are top supplier of manufacturing infrared catalytic gas burner in China, we bulit in year 2005, and we have a lots of customers from all over of world.

The infrared gas burner is good for industrial heating, such as powder coating oven drying,

Details of Heating Elements Catalytic Gas Burner Infrared For Industrial Oven HD242

Item Infrared gas burner HD242
Spare parts Ignition pin, pulse igniter, solenoid valve
Gas type LPG, natural gas
Heat transfer rate >95%
High efficiency Start work in 8 seconds
Use lifetime >11000hrs, with right use, can use 3~7 years.
Technology Rare-earth catalyst, save gas 20%
Smokeless & Flameless CO,80ppm, NOx<10ppm, CHx<50ppm
Material Galvanized steel body, cast iron air damper, honeycomb ceramic plates with catalyst, brass nozzle
Usage

Industrial surface treatment;

Food baking;

Latex/rubber glove drying;

fiber/texitle drying;

asphalt road drying.

NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242

Advantages of Heating Elements Catalytic Gas Burner Infrared For Industrial Oven

· Energy saving: conversion rate≥90% ,save above 20% energy than non-catalytic burner

· Environmental friendly: CO≤80ppm;NOx≤10ppm;CHx≤50ppm

· Whole combustion: 95% of energy released in the form of infrared ray; heating the objects directly

· Long useful time:≥11000hr

· Easily installed

The technical parameters

Items

 Technical parameters

Types

natural gas (NG),liquefied petroleum gas (LPG)
Light-off temperature ≤350
complete combustion temperature ≤380

Heat source temperature

 around 850
Baking temperature range 30---550
Wavelength range 1.9m--15m

Furnance pressure

natural

gas 150mmAq;liquefied petroleum gas 280mmAq
Working pressure NG:2000~5000pa;LPG:2800~5000pa

Comparison table for all kinds of energy consumption

Furnace type

Parameters

Electronic

cooker

 Oil furnace

Coal-fired furnace

 Infrared catalytic heaters

Energy requirement

 10,000Kcal 10,000Kcal 10,000Kcal 10,000Kcal
Temperature 180 180 180 180

Energy consumption

Electricity(15 kW/h)

 Electricity (1Kw/h)+ diesel (2Kg)

Coal (10Kg)

 LPG(0.9Kg)

Heating time

20 minutes

 40 minutes 90 minutes 5-8 minutes

Application for Heating Elements Catalytic Gas Burner Infrared For Industrial Oven

Infrared catalytic gas burner is good choice industrial drying, baking or curing oven, especially in tunnel&converyor oven......It martched with auto-igntion,safe controller and keep stable temperature.

A. Industrial surface treatment: liquefied/wet drying oven, curing spray painting oven, powder coating oven, preheating treatment equipment.

B. Food baking: snack puffed food such as biscuit, bread, cookies, egg roll, rice cake; dehydration of fruit, vegetable, spice; Roasting for fish, duck, chicken and other meat.

C. Other industrial heating: latex/rubber glove drying, paper drying, fiber/texitle drying, asphalt paving road drying

50pcs, less is also OK as trial order.
